Quietflex ss0760 Insulation Sleeve 7in 5ft R6.0

Product Description

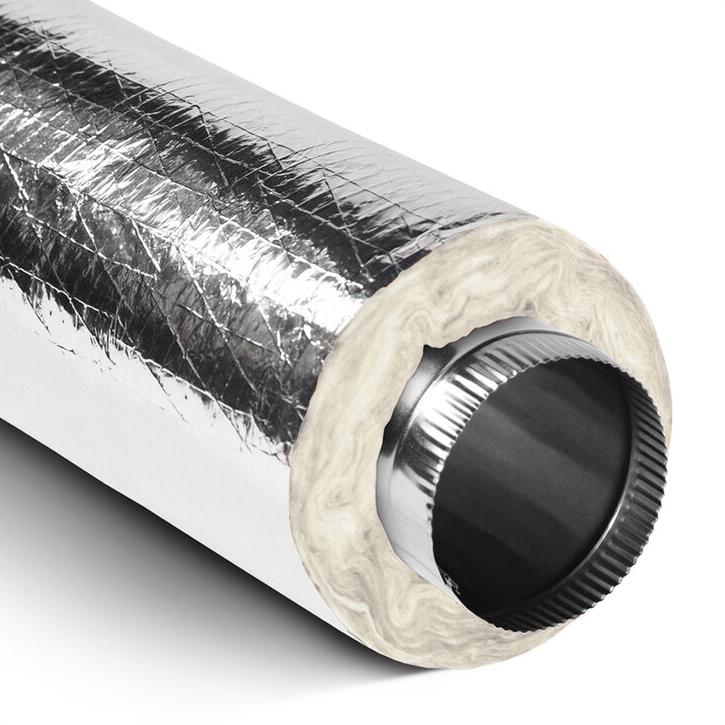

The QUIETFLEX ss0760 is a pre-formed insulation sleeve designed to cover new or existing hard duct pipe, maintaining the temperature of conditioned air as it moves through the duct system. Rated at R6.0, the sleeve reduces heat gain and heat loss and limits condensation buildup on the exterior of the duct. The reinforced metallic polyester vapor barrier is built into the sleeve, eliminating the need for a separate barrier wrap. HVAC technicians and sheet metal installers use this product on residential and light commercial duct runs where hard pipe requires insulation.

The ss0760 fits a 7-inch duct and comes in a standard 5-foot length. It is suited for supply-side hard pipe runs in both new construction and retrofit applications where the existing duct lacks adequate insulation. The silver metallic facing is appropriate for exposed or semi-exposed installations in conditioned or unconditioned spaces such as basements, crawl spaces, attics, and mechanical rooms where duct insulation is required.

Key Features

• R6.0 thermal rating reduces heat transfer and improves system efficiency
• Reinforced metallic polyester vapor barrier integrated into the sleeve construction
• Fits 7-inch diameter hard duct pipe
• Standard 5-foot length with 10-foot custom length available
• Also available in R4.2 and R8.0 for varied thermal performance requirements
• One starter cap included per box to seal the open end of the sleeve

Compatibility

Designed as an OEM-style insulation sleeve for 7-inch round hard pipe duct systems in residential and light commercial HVAC installations.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal installer. Shut down the air handling system and allow the duct to reach ambient temperature before fitting the sleeve. Secure the sleeve ends with approved foil tape or mechanical fasteners per local mechanical code requirements. Do not compress the insulation material during installation, as compression reduces the effective R-value.

Technical Specifications

• Insulation R-Value: R6.0
• Duct Diameter: 7 inches
• Length: 5 feet
• Vapor Barrier: Reinforced metallic polyester
• Facing Color: Silver

Standard Information

• Brand: QUIETFLEX
• Manufacturer Part Number: ss0760
