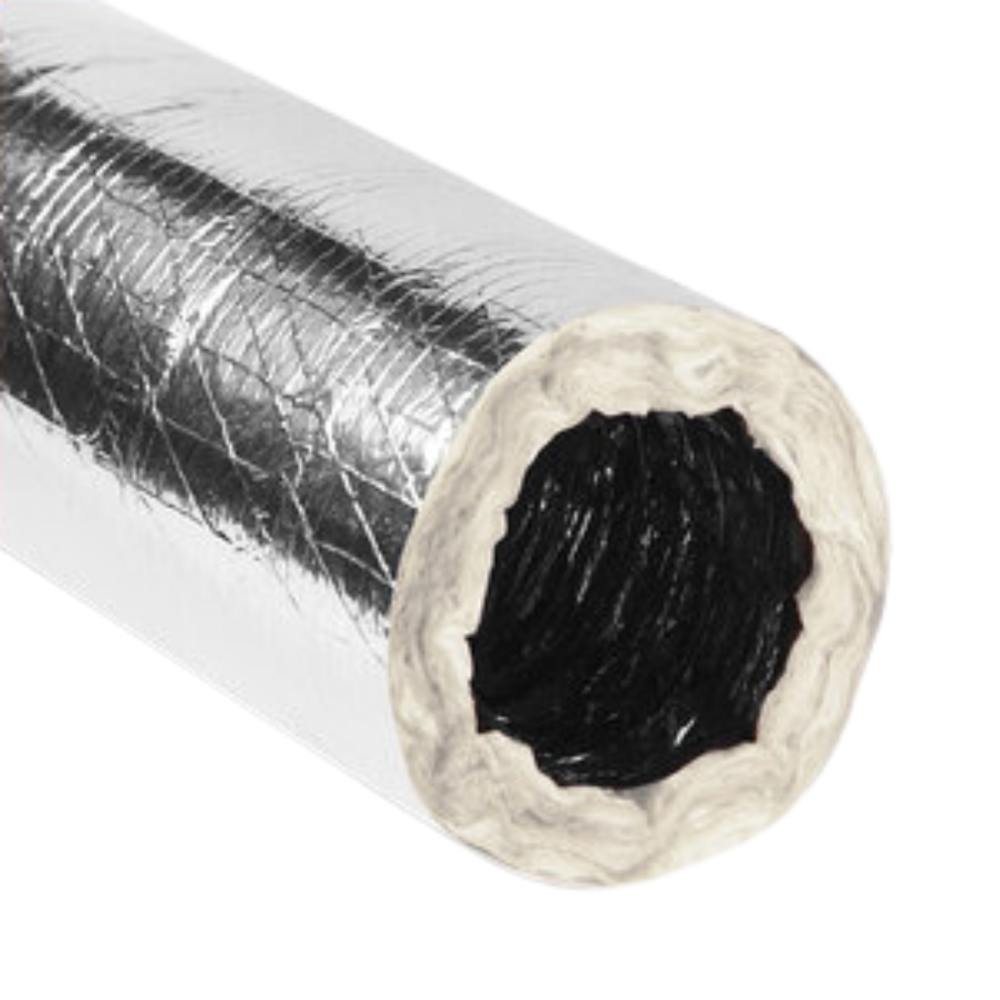

Quietflex FLEX-R8-16BAG R8 Rip Stop Silver Jacket 16 x 25' Bagged Flex Duct

Product Description

The Quietflex FLEX-R8-16BAG is a versatile flexible duct designed for HVAC applications. This duct features a metalized polyester-vapor barrier with rip stop scrim reinforcement, ensuring durability and efficiency. It is made from formaldehyde-free materials, making it a safe option for indoor air quality.

• Features a metalized polyester-vapor barrier with rip stop scrim reinforcement.
• ETL Listed/Approved to UL 181 Standard and complies with NFPA standards 90A and 90B.
• Maintains functionality within an operating temperature range of negative twenty degrees Fahrenheit to one hundred eighty degrees Fahrenheit (continuous).

Product Highlights

This duct supports a vapor transmission of 0.05 perms. The product is constructed with two layers of polyester film encapsulating a galvanized or bronze coated wire helix. It is GREENGUARD certified, meets numerous federal, state, and local codes and standards, and maintains performance under various conditions.

Product Information

Standard Information

• Product Type: Flexible Duct
• Color: Silver

Technical Specifications

• Vapor Transmission: 0.05 perms
• R-Value: R4.2, R6, R8
• Positive Pressure: 10 W.C.
• Negative Pressure: 1/2 W.C.
• Maximum Air Velocity: 6000 FPM
• Flame Spread: Less than 25
• Smoke Developed: Less than 50
• Operating Temperature Range (Continuous): -20 deg F to 180 deg F
• Operating Temperature Range (Intermittent): -20 deg F to 200 deg F
• Diameters Available: 3-10, 12, 14, 16, 18, 20, 22
• Lengths Available: 25 ft
