Product Description

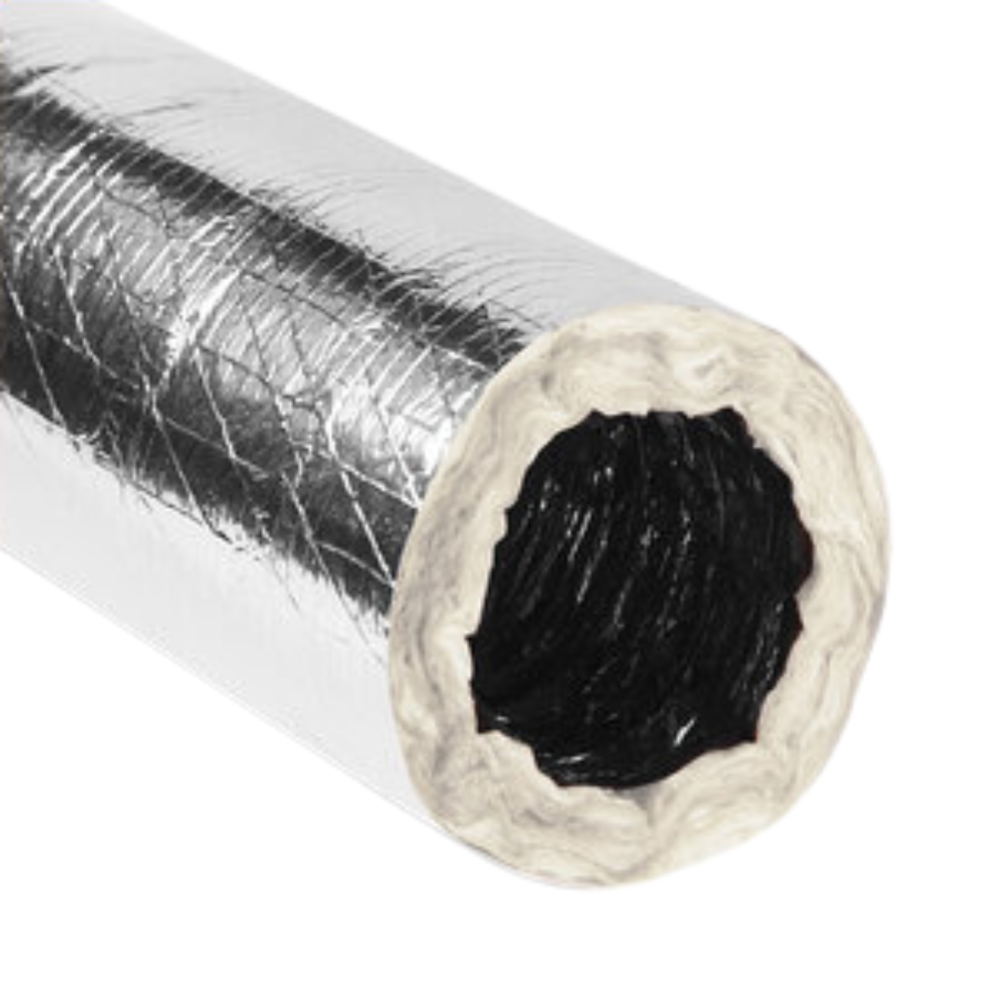

The QUIETFLEX FLEX-R6-16BAG is a flexible air duct suitable for HVAC systems. This duct features a metallic and polyester vapor barrier, along with rip-stop scrim reinforcement. It also includes fiberglass insulation and a reinforced galvanized metal core. The oversized core fits on collars and register boxes easily. It is available in a length of twenty-five feet.
- Metallic and polyester vapor barrier
- Fiberglass insulation with Johns Manville formaldehyde-free fiber glass
- Galvanized metal core for reinforcement
Product Highlights
This product provides reliable airflow and is ideal for various HVAC applications.
Product Information
Standard Information
-
Brand: QUIETFLEX
-
MPN: FLEX-R6-16BAG
Technical Specifications
-
Material: Plastic, Steel
-
Material Type: Polyester
-
Insulation: Fiberglass
-
R Value: R6
-
Diameter: 16 inches
-
Length: 25 feet
-
Maximum Airflow: 6000
-
UL Listed: UL 181 Class 1
-
Vent Duct Shape: Round
-
Vapor Transmission: 0.05 perms
-
Core Construction: Two layers of polyester film around a galvanized wire helix
-
Rated Positive Pressure: 10 W.C.
-
Rated Negative Pressure: 1/2 W.C.
-
Rated Maximum Air Velocity: 6000 FPM
-
Flame Spread: Less than 25
-
Smoke Developed: Less than 50
-
Operating Temperature Range (Continuous): -20 degrees F to 180 degrees F
-
Operating Temperature Range (Intermittent): -20 degrees F to 200 degrees F
