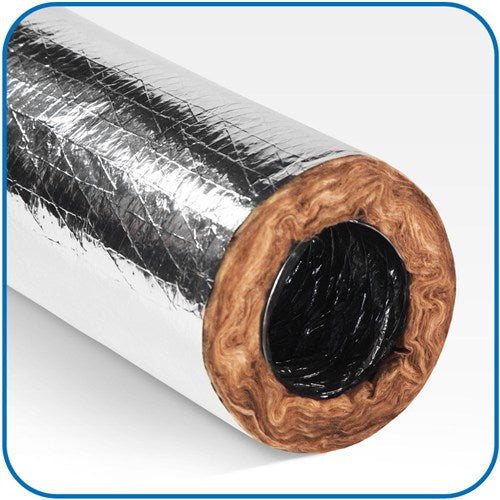

Quietflex 784C R8 7 inches Rip-Stop Silver Flex 25ft Box

Product Description

The QUIETFLEX 784C is a flexible duct, Rip Stop Insulated, with a metallic, polyester-vapor barrier and a special "rip-stop" scrim reinforcement. Features Johns Manville Formaldehyde-free insulation, galvanized or bronze metal core reinforcing, and an oversized core to fit on collars and register boxes. Designed for use in temperatures from -20 to 180 deg F.

• Johns Manville Formaldehyde-free fiberglass insulation
• Galvanized or bronze metal core reinforcing
• Oversized core to fit on collars and register boxes

Product Highlights

The QUIETFLEX 784C flexible duct features a polyester core/metalized polyester vapor barrier and weather-resistant packaging.

Product Information

Standard Information

• Brand: QUIETFLEX
• Manufacturer Part Number: 784C
• Country of Origin: US

Technical Specifications

• Box or Bag: Box
• Length: 25 ft
• R-Value: R8
• Series: RIP-STOP
• Size ID: 7"
• Type: Insulated Class 1
• Inside Diameter: 7 in
• Domestic/Import: Domestic
• Finish: Silver
• Flow Rate: 6000 fpm
• Material: Polyester/Fiberglass/Metalized Polyester
• Pressure Rating: -1/2 to 10 in-WC
• Temperature Rating: -20 to 180 deg F
• Vapor Transmission: <=0.05 perm
• Brand: Quietflex
