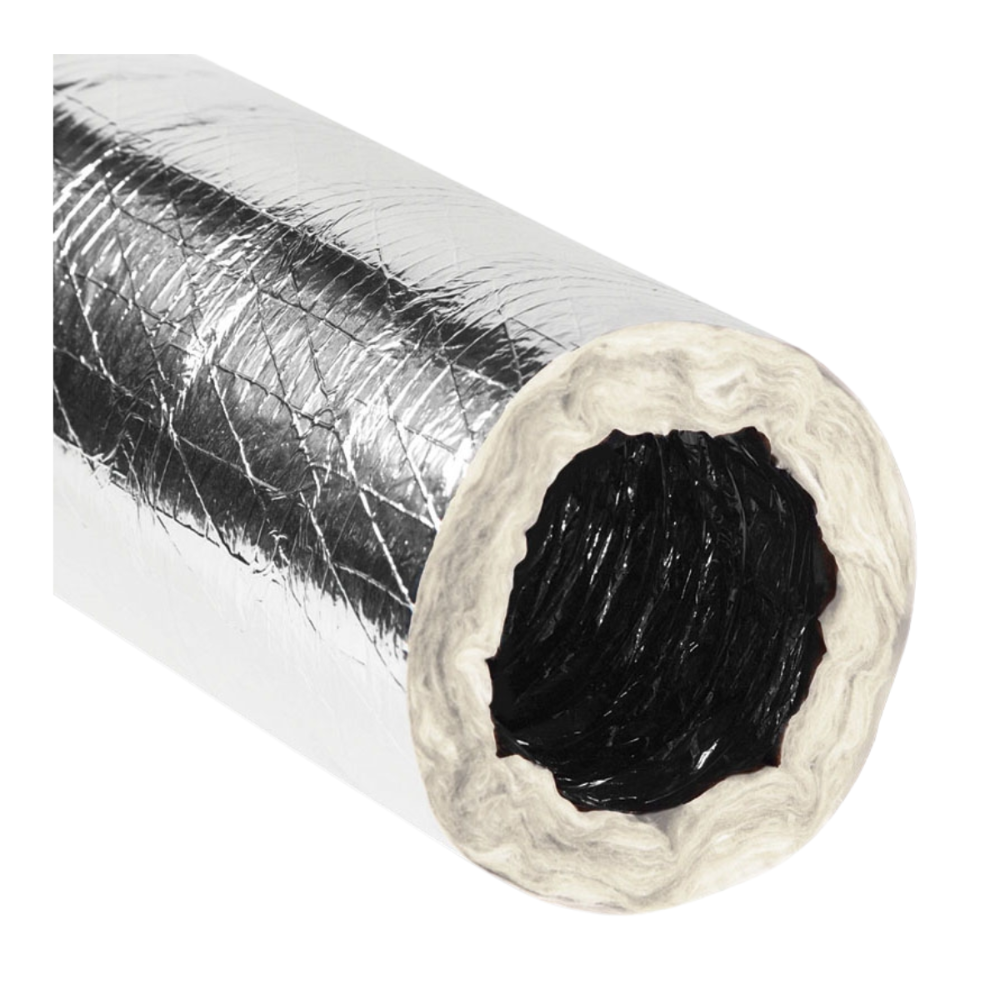

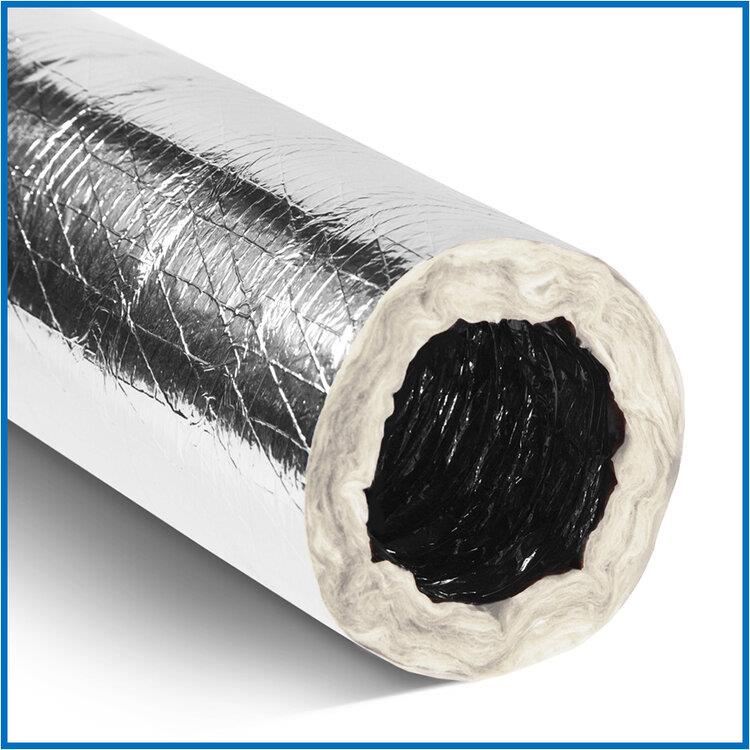

Quietflex 480C Series Rip Stop Flex Duct 4 inch x 25 ft

Product Description

The Quietflex 480C Series Rip Stop Flex Duct features R 6.0 insulation and measures 4 inches in diameter and 25 feet in length. Constructed with Johns Manville Formaldehyde-free fiberglass insulation and a galvanized or bronze metal core reinforcing. It has an oversized core to fit on collars and register boxes and weather-resistant packaging.

• Johns Manville Formaldehyde-free™ fiber glass insulation
• GREENGUARD® certified insulated products
• Galvanized or bronze metal core reinforcing

Product Highlights

Ideal for insulating new or existing hard pipes, increasing efficiency and reducing condensation.

Product Information

Standard Information

• Brand: Quietflex
• Manufacturer Part Number: 480C

Technical Specifications

• Diameter: 4 in
• Length: 25 ft
• Material: Fiberglass
• Manufacturer: Quietflex Manufacturing
• Manufacturer #: 480C
• Series: 80 Series
• Temperature Rating: -20 to 180 deg F Continuous, -20 to 200 deg F Intermittent
• Type: Rip Stop
• Vapor Transmission: At or Below 0.05 perms
• Pressure Rating: 10 in-WC Positive, 1/2 in-WC Negative
• R-Value: R6
• Velocity Rating: 6000 fpm
• Brand: QUIETFLEX
• SKU: 480C
• PRODUCT TYPE: Flexible Air Ducts
