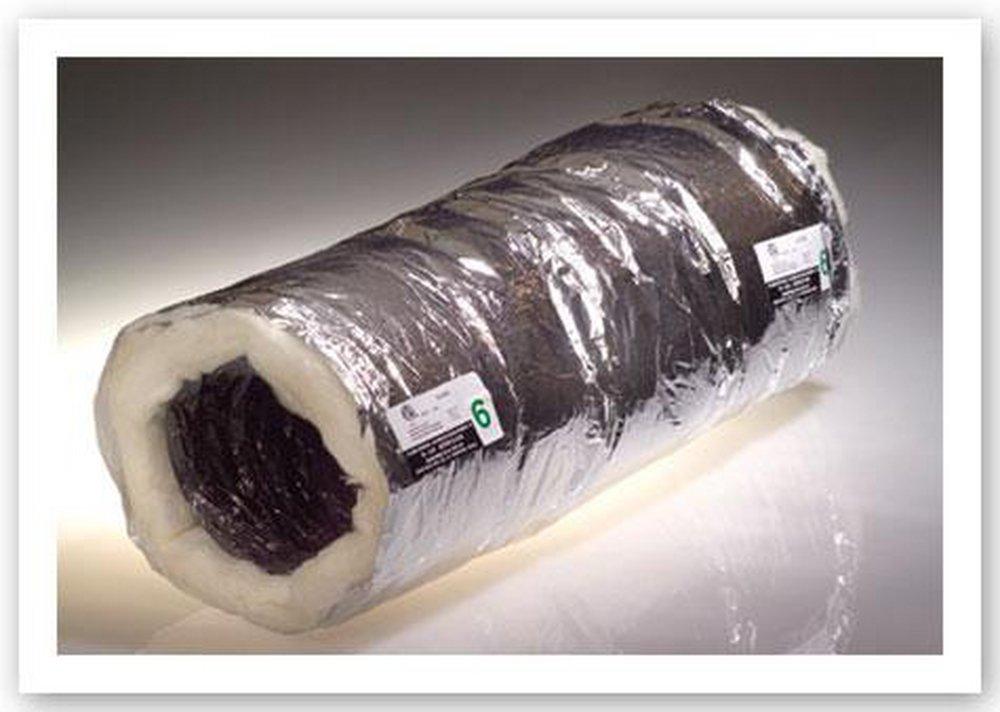

QUIETFLEX 2085 Insulated Flexible Duct

Product Description

The QUIETFLEX 2085 is a flexible air duct suitable for heating, air conditioning, and ventilation systems. With a strong metallic polyester-vapor barrier reinforced by rip-stop scrim, this duct ensures durability and efficiency.

• Features metallic polyester vapor barrier with rip-stop scrim
• Utilizes fiberglass insulation for energy efficiency
• Designed with an oversized core for optimal airflow

Product Highlights

This Class 1 air duct delivers effective airflow while maintaining structural integrity, making it ideal for a range of HVAC applications.

Product Information

Standard Information

• Manufacturer Part Number: 2085
• UPC: 878640008560

Technical Specifications

• Inside Diameter: 20 inches
• Length: 25 feet
• Insulation Value: R8
• Flow Rate: 6000 fpm
• Pressure Rating: -1/2 to 10 in-WC
• Temperature Rating: -20 to 180 degrees F
• Material: Polyester/Fiberglass/Metalized Polyester
• Type: Rip Stop Insulated
• Shipping Weight: 42.400 lb
• Shipping Dimensions: 26.75 inches Width, 24.00 inches Length, 31.00 inches Height
• Country of Origin: USA
