Product Description

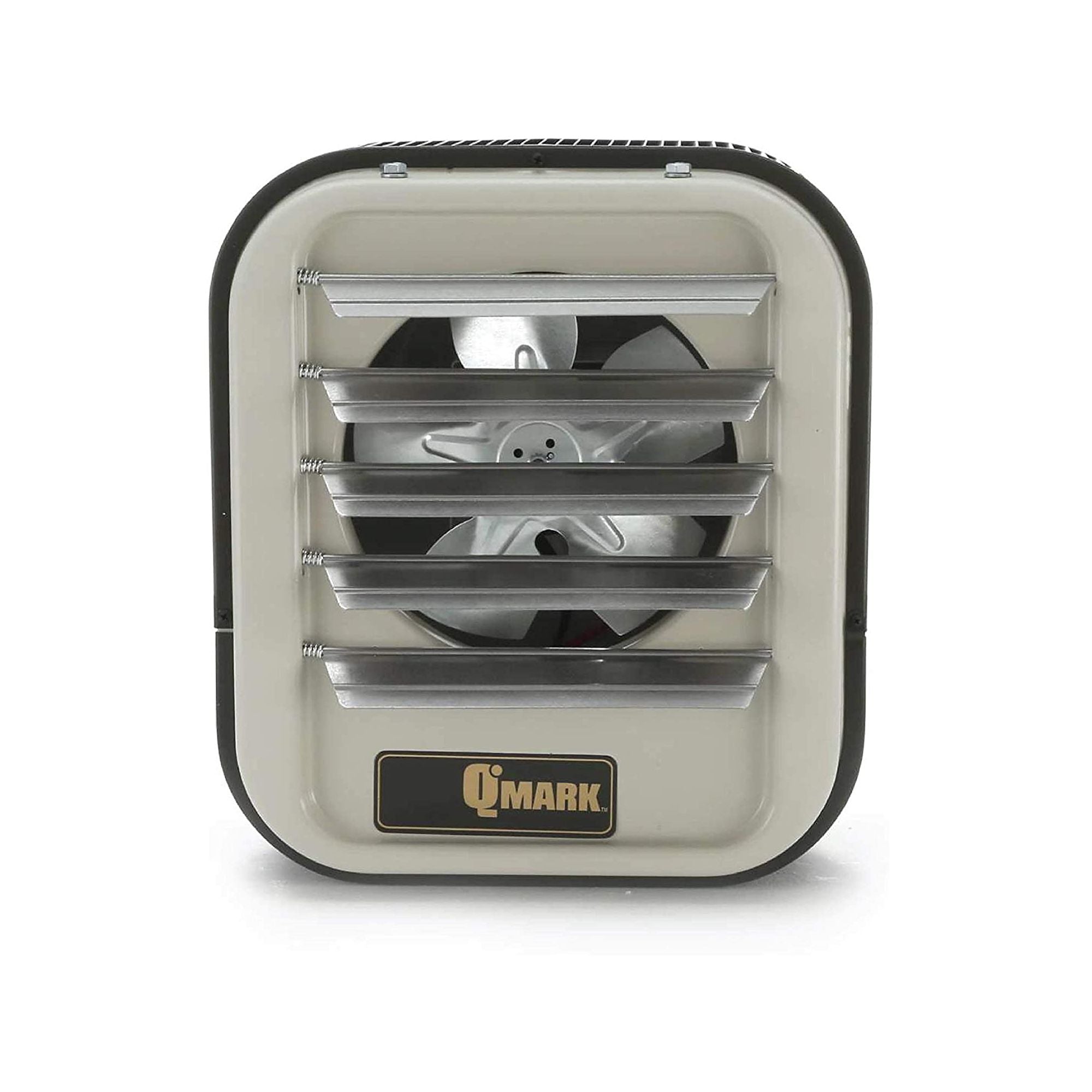

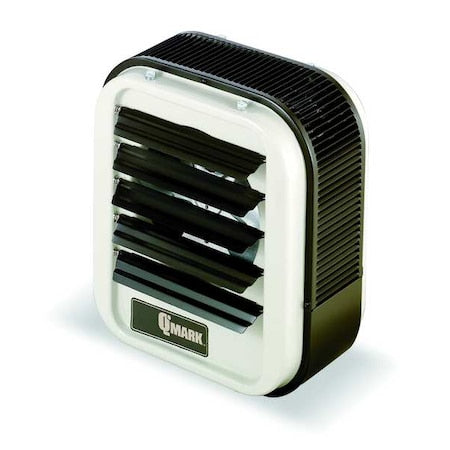

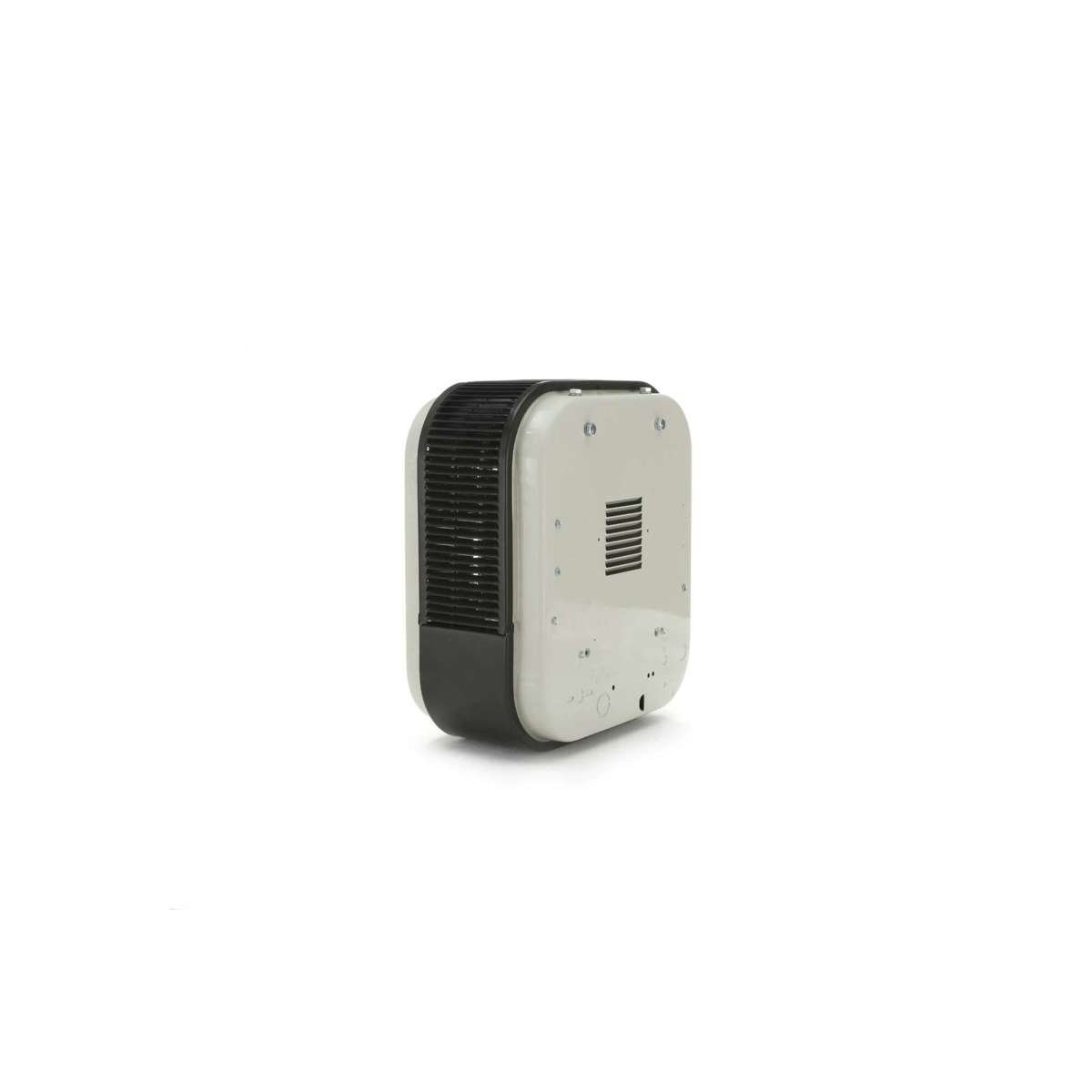

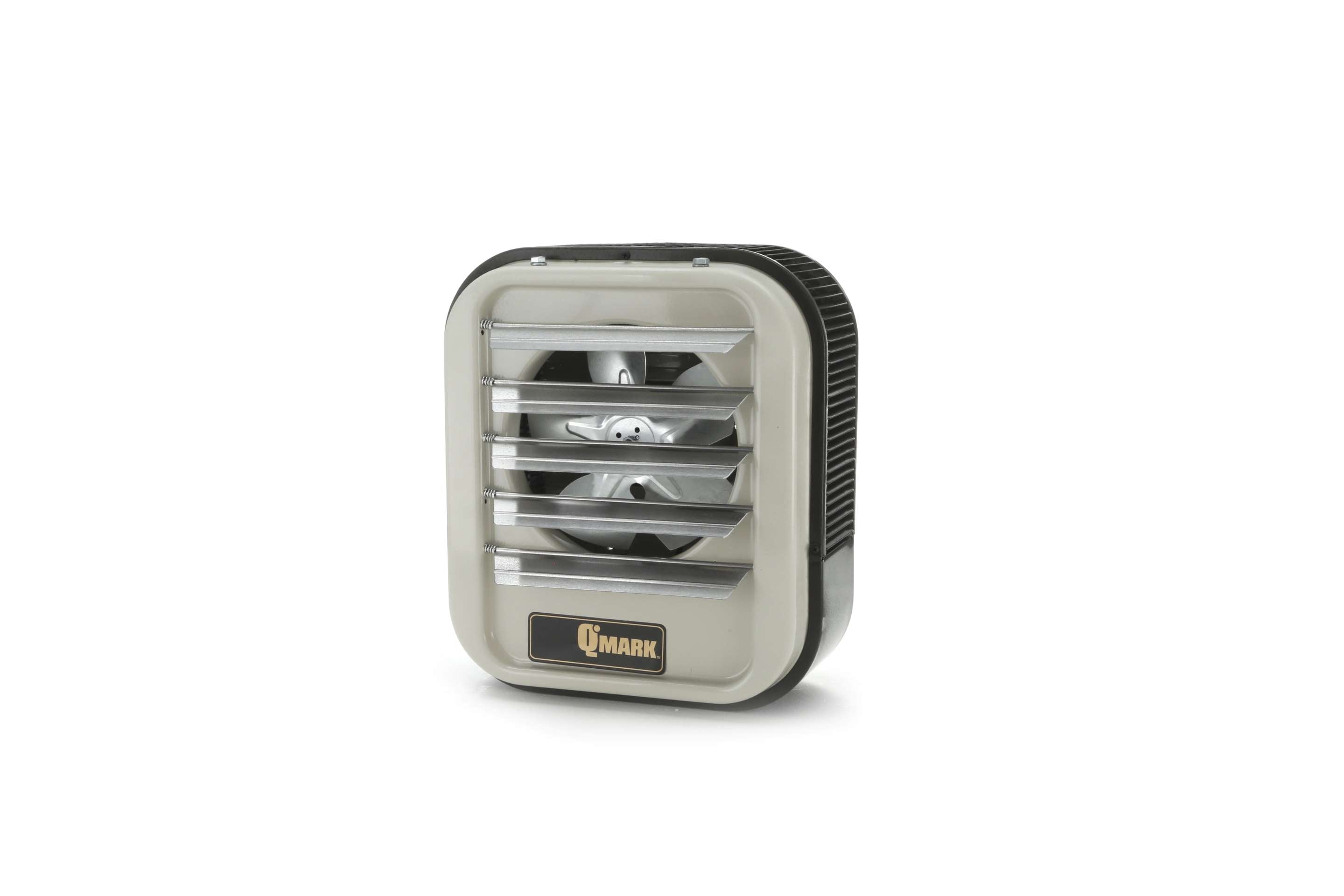

The QMARK MUH0381 unit heater is designed for industrial settings, suitable for factories, warehouses, garages, and mechanical rooms. This rugged unit heater has a powerful output capacity making it suitable for heating loading docks or other indoor/outdoor transition spaces. The heater operates at 208V and 3kW.
- Rugged unit heater suitable for industrial settings.
- Can be installed in factories, warehouses, garages, stairwells, power stations or mechanical rooms.
- Advanced pull-through air flow design for even air distribution.
Product Highlights
The QMARK MUH0381 is a versatile unit heater for primary, supplementary, or spot heating in various industrial and commercial applications.
Product Information
Standard Information
-
Brand: QMARK
-
Manufacturer Part Number: MUH0381
-
Country of Origin: United States
Technical Specifications
-
Brand: Qmark
-
Manufacturer: Marley Engineered Products
-
Catalog Number: MUH0381
-
Wattage: 3000 W
-
Voltage Rating: 208 VAC
-
Country of Origin: United States
-
Made in USA: Yes
-
Application: Factories Warehouses Garages Stairwells Shipping Docks Power Stations Mechanical Spaces
-
Special Features: Advanced Airflow
-
Standard: UL
-
UPC: 685360047218
-
GTIN: 00685360047218
-
Item Type: HORIZONTAL/DOWNFLOW UNIT HEATER
-
Amps: 14.5
-
BTU Output: 10,230
-
CFM: 350
-
Composition: Aluminum; Steel
-
Cycle/Hertz: 60 Hz
-
Energy Star Rated: false
-
Finish: Neutral Gray
-
Kilowatt (KW): 3
-
Motor HP: 1/100 HP
-
Number of Elements: 3
-
Phase: Single
-
Prop 65: true
-
RPM: 1,600
-
Temperature Range: 4.44°C to 32.22°C
-
UL Listed: false
-
UL Recognized: false
-
Heater Type: Horizontal Discharge Unit Heaters
-
Air Flow Capacity (CFM): 350
-
Wire Size: 12
-
Air Throw: 12 Feet
-
Control Voltage: 208 Volt
-
Depth of Product: 7.5 Inch
-
Width of Product: 14 Inch
-
Height of Product: 16 Inch
-
Type of Product: Horizontal Discharge Unit Heaters
-
Frequency Rating: 60 Hz
-
Flow Rate: 350 cfm
-
Mounting Height: 8/9 ft
-
Mounting Type: Surface/Horizontal/Downflow
-
Series: MUH
-
Standards: cULusUL ListedNECOSHA
-
Power Rating: 3 kW
-
Overall Depth: 7 1/2 in
-
Overall Width: 14 in
-
Air Temp. Rise: 27 Degrees F
-
Heater Voltage: 208VAC
-
Heating Method: Fan Forced
-
Housing Finish: Polyester Powder Coated
-
Overall Height: 16 in
-
Electric Heater Item: Electric Unit Heater
-
Heater Mounting Type: Vertical or Horizontal
-
Horizontal Air Throw: 12 ft
-
Electric Heater Phase: 1
-
Vertical Floor Coverage: 9 ft
-
Contactor Coil Voltage: 208V AC
