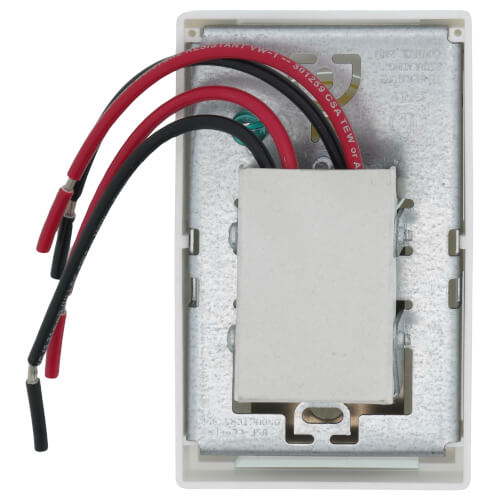

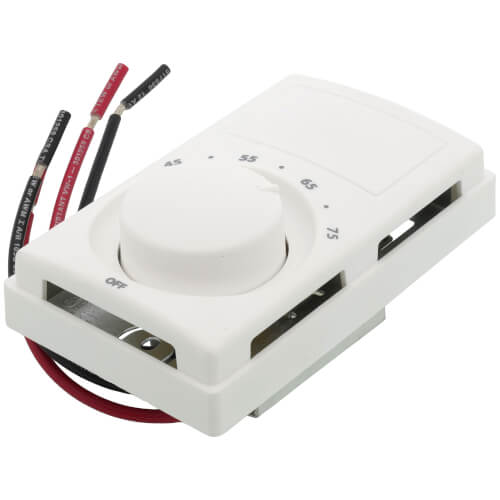

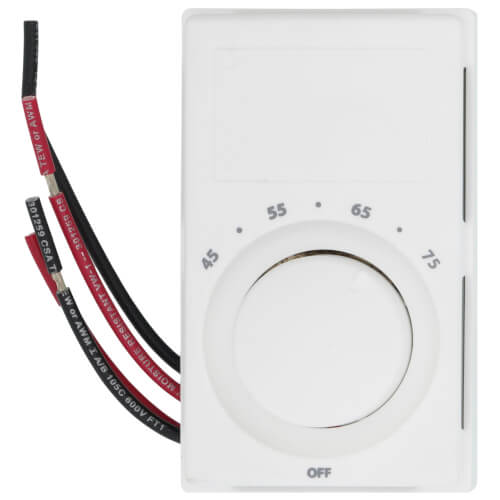

Qmark M602W Double Pole Wall Mount Thermostat 240V

Product Description

The Qmark M602W is a bi-metal snap action thermostat suitable for various electric heating applications. This device is designed for line voltage control and can operate with 120V, 208V, 240V, and 277V systems. Its large adjustment knob allows for easy temperature setting. The thermostat is compatible with different electric heaters including CBD and HBB baseboard heaters, and it can be used for remote control of MUH unit heaters.

• Line voltage thermostat with a positive off setting.
• Compatible with multiple electric heating products.
• Temperature range from 45°F to 75°F with a +/- 4°F differential.

Product Highlights

This thermostat provides reliable control of electric heating systems, ensuring efficient temperature management and energy savings.

Product Information

Standard Information

• Brand: Qmark
• MPN: M602W

Technical Specifications

• Voltage Compatibility: 120V, 208V, 240V, 277V
• Amperage Rating: 22 amps max (120V, 208V, 240V), 18 amps max (277V)
• Temperature Range: 45°F to 75°F
• Differential: +/- 4°F
• Shipping Dimensions: 5 inches (depth) x 3.25 inches (width) x 2.88 inches (height)
• Weight: 0.54 lbs
