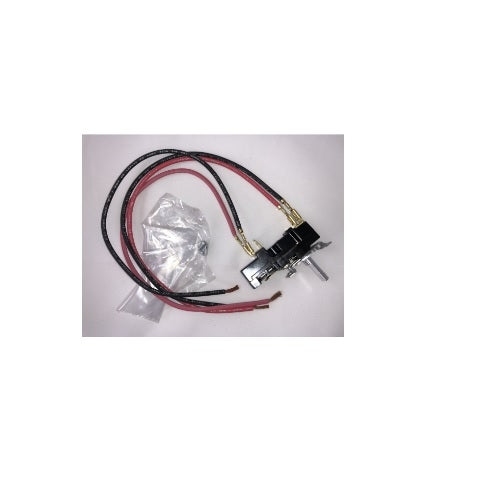

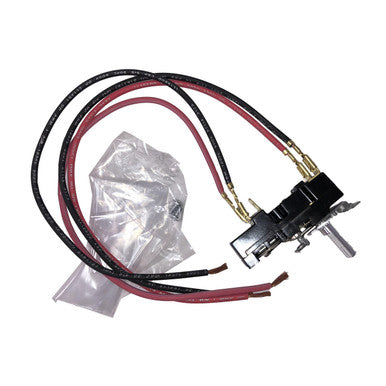

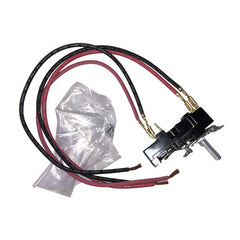

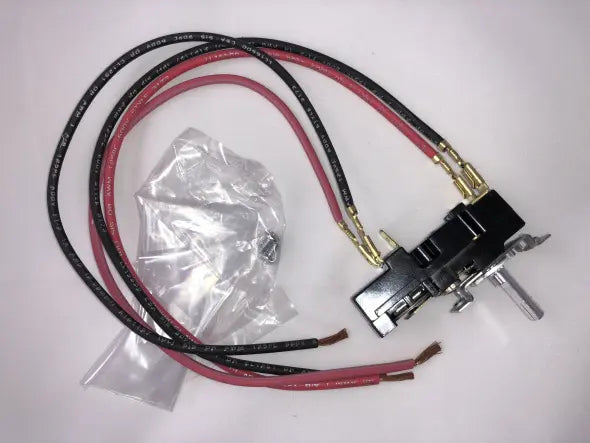

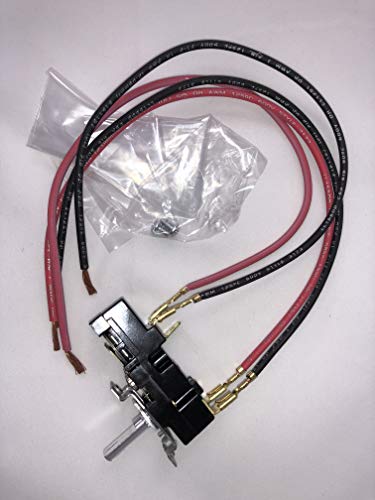

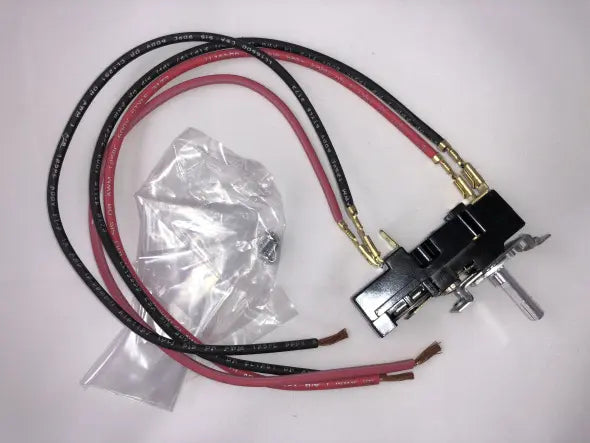

Qmark EFFT2 DP T'STAT Kit F Double Pole Field Installed

Product Description

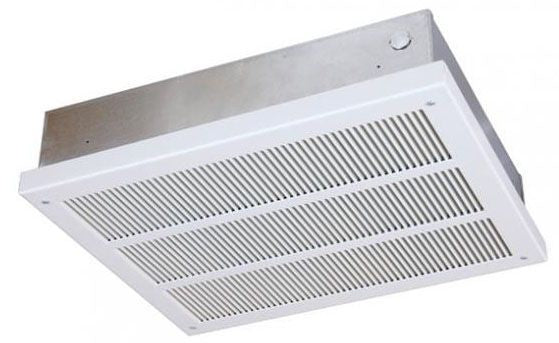

The QMARK EFFT2 is a double pole thermostat kit designed for field installation, commonly used with BMS Systems and EFF series ceiling-mounted fan-forced heaters. It accommodates pneumatic/electric or low voltage controls and features a built-in power on/off switch. The automatic fan delay eliminates cold drafts and discharges residual heat. This kit offers multiple mounting options and includes a heavy-duty 14-gauge louvered front cover grille. It operates within a temperature range of 40-90 Degrees F.

• Accommodates pneumatic/electric or low voltage controls commonly used with BMS Systems
• Built in power on/off switch
• Automatic fan delay eliminates cold drafts on start-up and discharges residual heat from the heater body during shut down

Product Highlights

Field-installed double pole thermostat kit for EFF series heaters, featuring a 40-90 Degrees F range, automatic fan delay, and robust design.

Product Information

Standard Information

• Brand: QMARK
• Manufacturer Part Number: EFFT2
• Country of Origin: United States

Technical Specifications

• Catalog Number: EFFT2
• Manufacturer: Marley Engineered Products
• Brand: Qmark
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer Part Number: EFFT2
• Item Type: Double Pole Thermostat (Field Installed)
• UPC: 685360021034
• Heating Technology: Forced Air
• Power Type: Hardwired
• Sealed Battery: No
• Model: EFF
• Control Type: 2-Pole
• Application: Commercial/Institutional/Industrial, EFF Series Ceiling Mounted Fan-Forced Heater
• Approval: UL (Canada and US)
• Sub-Category: Thermostat
