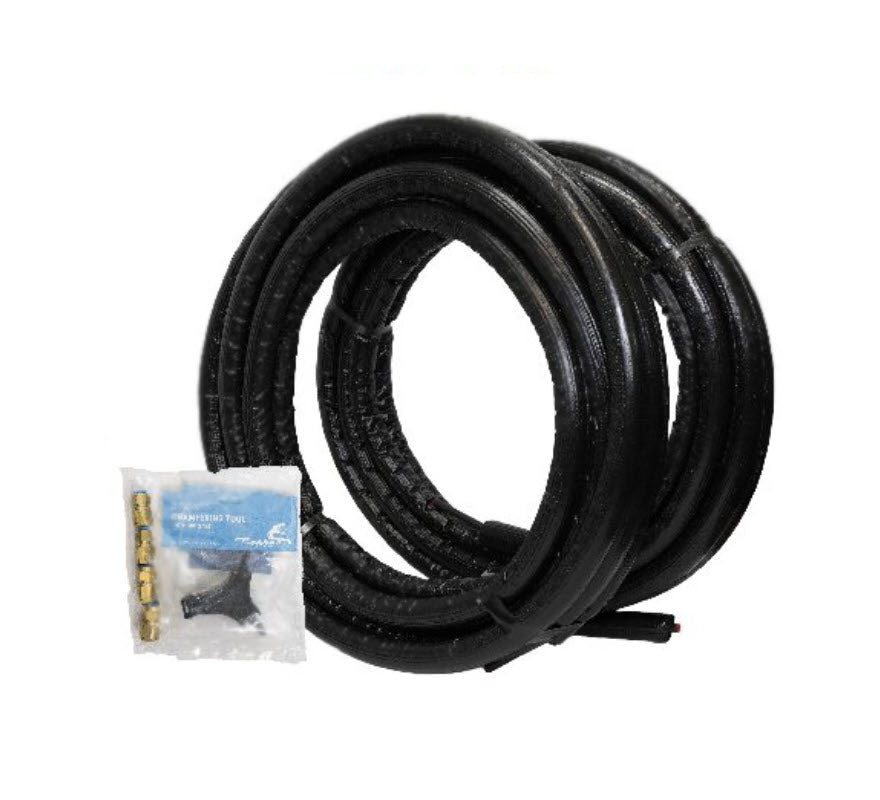

Python 8220 Mini Line Set Kit - 3/8 Liquid Line x 5/8 Suction Line

Product Description

The Python 8220 Mini Line Set Kit is ideal for split and mini-split HVAC systems used in both residential and commercial settings. This kit features a 3/8 inch liquid line and a 5/8 inch suction line, each measuring thirty-five feet in length and insulated with one half inch thick insulation. The construction consists of PE-RT/AL/PE-RT, making it compatible with R410a, R32, and R454b refrigerants. Additionally, it provides resistance against chemicals, UV light, and kinks.

• Designed for HVAC use in residential and commercial applications.
• Pressure rating of seven hundred psi, temperature rating of two hundred three degrees Fahrenheit.
• Meets ICC-ES PMG-1675 and ASTM F3506-21 standards.

Product Highlights

The Python 8220 Mini Line Set Kit is a reliable choice for HVAC installations, ensuring efficiency and durability.

Product Information

Standard Information

• Insulated: Yes
• Insulation Thickness: one half inch

Technical Specifications

• Liquid Line Size: three eighths inch
• Suction Line Size: five eighths inch
• Material: PE-RT
• A2L Compatible: Yes
• Approved Refrigerants: R410a, R32, R454b
• Color: Black
• Length: thirty-five feet
• Pressure Rating: seven hundred psi
• Temperature Rating: two hundred three degrees Fahrenheit
• Type: Kit
• Maximum Design Pressure: one fourth to three fourths at seven hundred psi, seven eighths at six hundred fifty psi
• Maximum Design Temperature: two hundred three degrees Fahrenheit
• ID & Flow Rates: Same as Copper Pipe
• Available Pipe Sizes: one fourth, three eighths, one half, five eighths, three fourths, seven eighths inches
• Pipe Marked Every Foot: true
