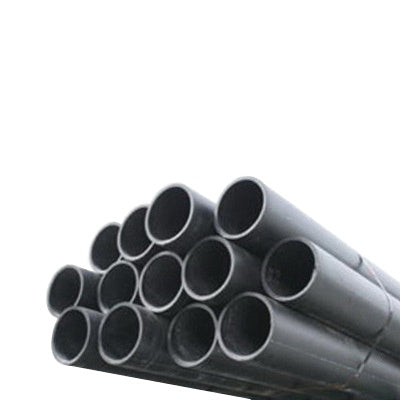

PVC PVC-SCH40-3/4X20 Schedule 40 PVC Pipe

Product Description

The PVC SCH40-3/4X20 is a Schedule 40 PVC pipe widely used in various applications. This pipe is made from durable PVC material and is resistant to acids and corrosive substances. It is ideal for use in chemical delivery systems, potable water transport, irrigation, and gray water collection. The plain ends allow for easy installation and system integration.

• Constructed from reliable PVC material.
• Features a three-quarter inch size and twenty-foot length.
• Designed for lower pressure applications.

Product Highlights

This pipe provides a cost-effective option for users requiring lower pressure capabilities.

Product Information

Standard Information

• Brand: PVC
• MPN: PVC-SCH40-3/4X20

Technical Specifications

• Material: PVC
• Type: Schedule 40 Pipe
• Style: Plain End Pipe
• Trade Size: 3/4 Inch
• Length: 20 feet
• Outside Diameter: 1.05 inches
• Inside Diameter: 0.824 inches
• Wall Thickness: 0.113 inches
• Max Pressure: 480 PSI
• Maximum Temperature: 140° F (60° C)
• Minimum Temperature: 32° F (0° C)
• Color: White
• NEMA Rating: NEMA TC-2/3
• Standards: UL 514B/651 Listed, ETL Listed, Federal Specification WC1094A
• Ratings & Standards: ANSI B1.20.1, ASTM D1784, ASTM D1785, ASTM D2466, ASTM D2672, ASTM F1498, NSF/ANSI 14, NSF/ANSI 61
