Prosoft ILX69-PBM Profibus DPV1 Master Communication Module for CompactLogix

Product Description

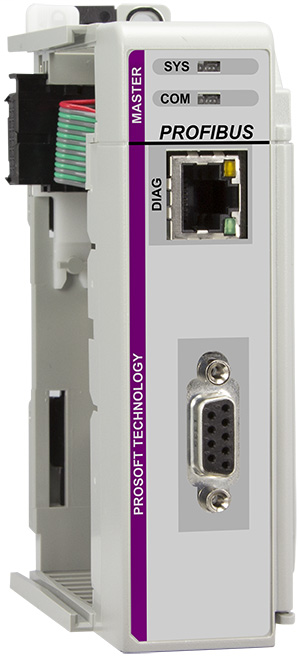

The Prosoft ILX69-PBM is a communication module designed for CompactLogix systems. This module enables PROFIBUS DPV1 master communication, facilitating seamless integration into existing setups. It mounts on a chassis and supports a PROFIBUS interface with RS-485 connectivity, achieving speeds up to twelve Mbps.

• Supports up to 125 slaves.
• Includes a 10/100 Ethernet diagnostic interface via RJ48.
• Effective data handling with maximum input and output data of 5712 Bytes and 5760 Bytes.

Product Highlights

This module connects slave devices using PROFIBUS DPV0 and DPV1 protocols. It acts as an input/output module between the PROFIBUS network and the processor, allowing for efficient data transfer.

Product Information

Standard Information

• Mounting: Chassis
• Type: Communications Module

Technical Specifications

• PROFIBUS Interface: RS-485, max. 12 Mbps
• Diagnostic Interface: 10/100 Ethernet, RJ48
• Power Supply: +5 V ±5 % / 570 mA
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Maximum Slaves: 125
• Input Data: Maximum 5712 Bytes
• Output Data: Maximum 5760 Bytes
• Baud Rate: Supports various rates up to 12 Mbps
