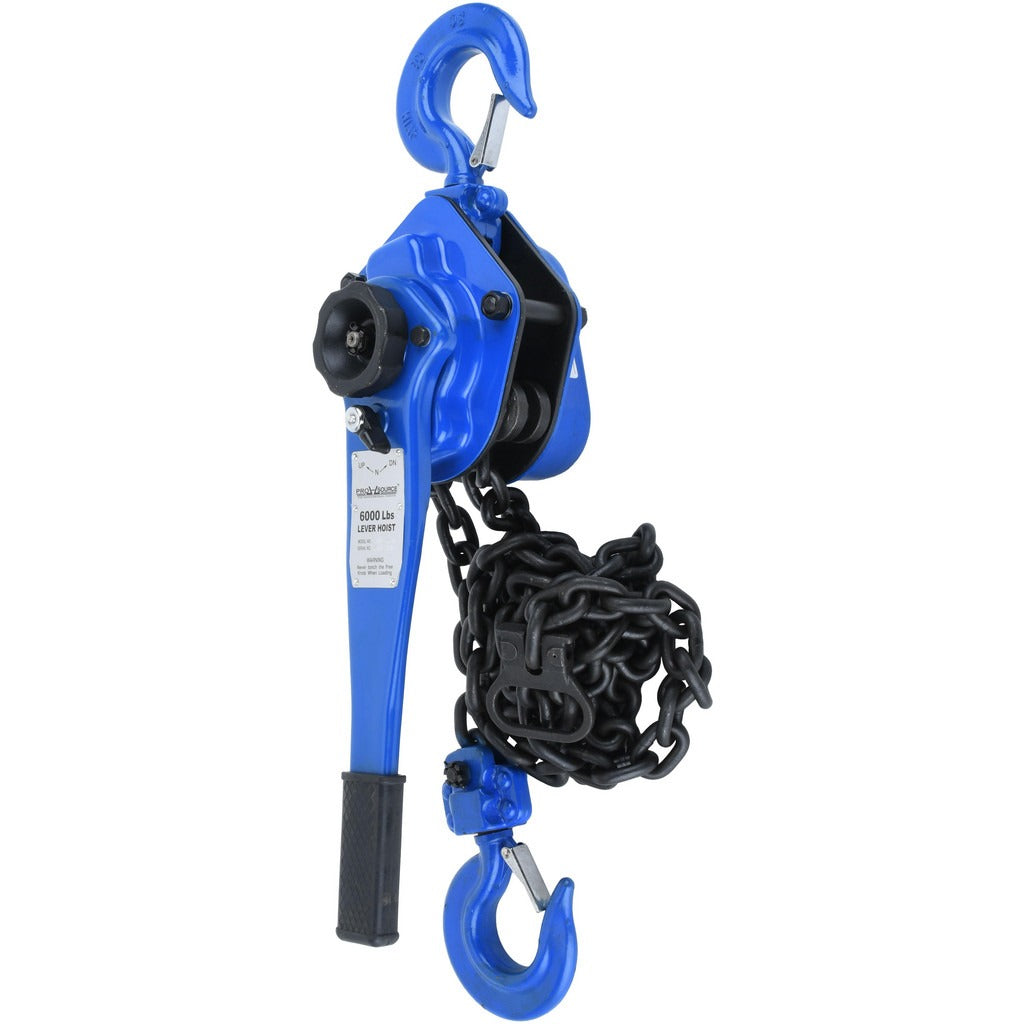

Pro-source PSHSH-3CK-10 Manual Lever Hoist 6000 Lb

Product Description

The PRO-SOURCE PSHSH-3CK-10 is a single-chain manual lever hoist rated for 6000 lb capacity. It operates without electrical or pneumatic power, using a lever mechanism that requires 71 lb of force to actuate. The hoist provides 10 feet of lift height with a minimum headroom requirement of 18.7 inches, making it suitable for installations where overhead clearance is limited. At 51.5 pounds, it is a substantial unit built for sustained lifting loads in demanding work environments. Licensed riggers, millwrights, and maintenance professionals are the primary installers and operators of this type of equipment.

This lever hoist is used in industrial, construction, and maintenance applications where a portable, manually operated lifting solution is required. Typical scenarios include equipment positioning, load securing, tensioning, and vertical or angled lifts in areas without access to powered lifting equipment. The compact body dimensions of 8 inches length by 7.6 inches width by 4.3 inches height allow it to fit into confined overhead spaces. It is well suited for shop floors, job sites, and field service work where portability and reliability matter.

Key Features

• 6000 lb rated lifting capacity for heavy-load applications
• 10 ft lift height on a single-chain configuration
• 71 lb lever operating force for controlled manual actuation
• 18.7 inch minimum headroom requirement suits low-clearance installations
• Compact body at 8 x 7.6 x 4.3 inches for use in confined spaces
• Portable design at 51.5 pounds with no power source required

Compatibility

Designed as a standard manual lever hoist for use with compatible overhead lifting points, trolleys, and rigging hardware rated at or above 6000 lb working load limit.

Installation Notes

A qualified rigger or trained maintenance professional should install and operate this hoist in accordance with ASME B30.21 standards for lever hoists. Before use, verify that the overhead attachment point, hook, and rigging hardware are rated to exceed the intended load. Inspect the chain, hooks, and latch mechanism for wear, cracks, or deformation before each lift. Never exceed the rated 6000 lb capacity and never use the hoist to lift personnel.
