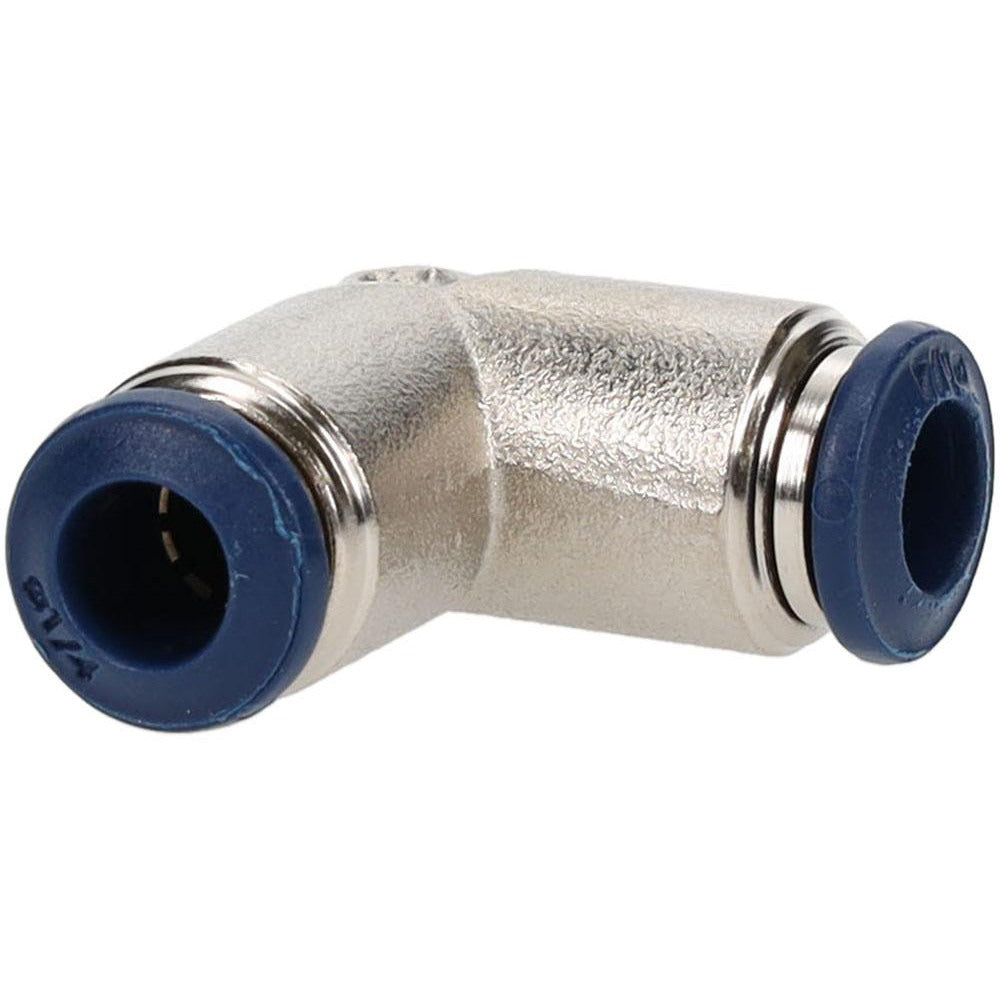

Pro-source 2555901465PRO Push-to-connect Tube Fitting

Product Description

The PRO-SOURCE 2555901465PRO is a push-to-connect tube-to-tube fitting designed for quick, tool-free connections in compressed air, pneumatic, and fluid transfer lines. Constructed from nickel-plated brass with a Buna O-ring, it accepts 1/4-inch outside diameter tubing and is rated for a maximum working pressure of 250 psi. The fitting operates across a temperature range of 0 degrees F to 160 degrees F, making it suitable for a wide range of indoor industrial and light commercial plumbing and pneumatic applications. Plumbers, pipefitters, and pneumatic system technicians install this type of fitting when fast, reliable inline connections are required without soldering or threading.

This fitting is suited for residential and light commercial pneumatic lines, compressed air distribution systems, and fluid handling circuits where 1/4-inch OD tubing is used. The push-to-connect design allows technicians to make secure inline connections quickly during new installations or service calls. Each unit weighs approximately 0.04 pounds, and the fitting ships in a package quantity of five, which is practical for service vans or shop stock where multiple connections may be needed in a single job.

Key Features

• Push-to-connect design allows fast, tool-free tube insertion for inline tube-to-tube connections
• Nickel-plated brass construction provides corrosion resistance in damp or humid environments
• Rated to 250 psi maximum working pressure for use in pneumatic and compressed air systems
• Buna O-ring sealing element ensures a reliable, leak-resistant connection
• Operating temperature range from 0 degrees F to 160 degrees F covers most light commercial and industrial conditions
• Accepts 1/4-inch OD tubing for compatibility with common pneumatic line sizes

Compatibility

Designed as an OEM-style replacement or new-installation fitting for pneumatic and fluid transfer systems using 1/4-inch outside diameter tubing.

Installation Notes

Installation is performed by licensed plumbers, pipefitters, or qualified pneumatic system technicians. Before servicing any line, depressurize the system completely and verify zero pressure at the work point. Ensure tubing ends are cut cleanly and squarely with a dedicated tube cutter to achieve a proper seal against the O-ring. Consult applicable local mechanical codes and the system manufacturer guidelines when integrating push-to-connect fittings into pressurized fluid or air circuits.
