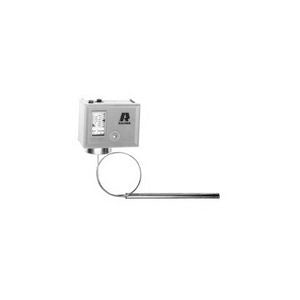

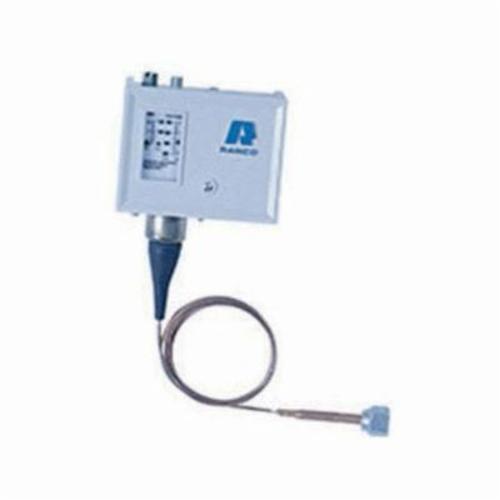

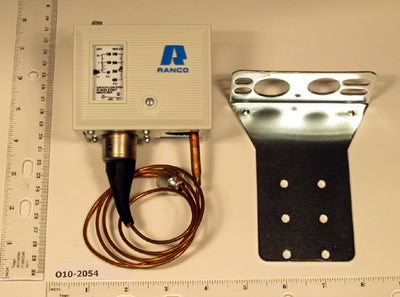

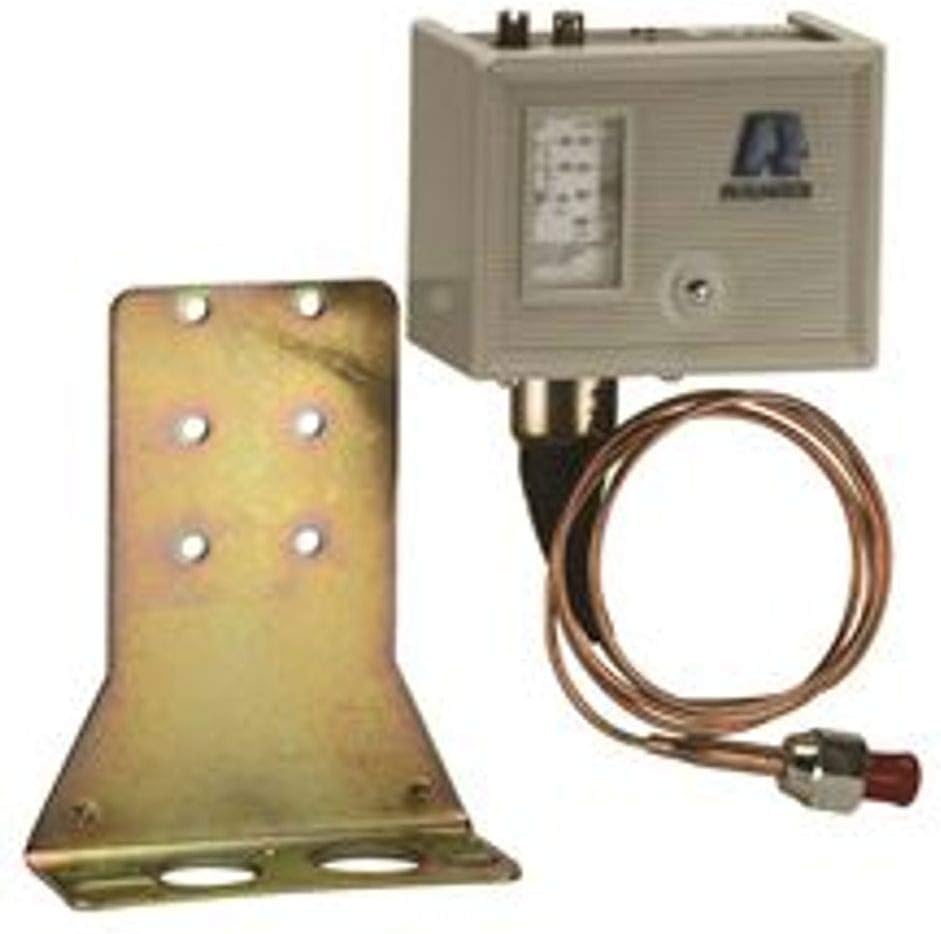

Robertshaw O10-2054 High Pressure Control SPST 100-400 PSI 36 Inches Capillary

Product Description

Robertshaw's O10-2054 High Pressure Control is designed to manage fluid pressure within a range of 100 to 400 PSI. This control is equipped with a Single Pole Single Throw (SPST) switch that opens on low pressure.

• Manages fluid pressure in the range of 100 to 400 PSI
• SPST switch opens on low pressure
• 36-inch capillary length

Product Highlights

Robertshaw O10-2054 is ideal for compressors, refrigeration, and industrial applications. It features a NEMA 1 enclosure, 1/4 inch SAE flare connection, and a high differential range.

Product Information

Standard Information

• Brand Name: Robertshaw
• Product Type: High Pressure Control

Technical Specifications

• MPN: O10-2054
• Pressure Range: 100 to 400 PSI
• Differential: 40 to 150 PSI
• Capillary Length: 36 Inches
• Switch Action: SPST, Opens on Low Pressure
• Mounting Type: Universal
• Connection Type: 1/4 Inch SAE Flare
• Enclosure Type: NEMA 1, Non-Conductive
• Material: Heavy-Duty Plated Steel
• Voltage: 24/240 V
• Manufacturer: Robertshaw
