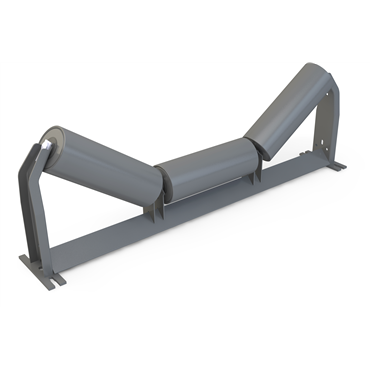

Precision Pulley & Idler B5-35TE-30SB Troughing Equal Idler CEMA B 35° Angle

Product Description

The Precision Pulley & Idler B5-35TE-30SB is a troughing equal idler designed for use in material handling systems. This idler complies with CEMA B standards, ensuring it meets necessary requirements for reliable performance. Use this product for efficient belt support in conveyor systems.

• 30 inches belt width
• 5 inches roller diameter
• 35 degrees trough angle

Product Highlights

This idler is built for light-duty applications and offers a maintenance-free design with high-quality sealed ball bearings.

Product Information

Standard Information

• Brand: Precision Pulley & Idler
• MPN: B5-35TE-30SB

Technical Specifications

• Roll Type: Three Rolls, Equal Length
• Belt Width: 30 inches
• CEMA Class: CEMA Class B - Light Duty
• Idler Type: Carrying Idler, Equal Trougher
• Lubrication: Factory Sealed
• Roller Diameter: 5 inches
• Roller Span: 28.9375 inches
• Bearing Type: SB, Ball Bearing
• Overall Length: 41 inches
• Overall Height: 13.9375 inches
• Overall Width: 8 inches
• Roller Length: 10 inches, 29.875 inches
