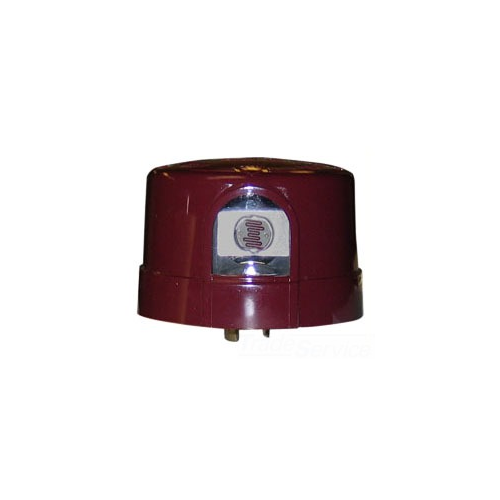

Precision P-7275 SPST 480V PHO-CNTL

Product Description

The Precision P-7275 is an SPST photo control switch designed for use in energy management applications. It operates at a voltage rating of four hundred eighty volts and features a polypropylene enclosure for durability. This switch is suitable for outdoor applications where reliable performance in varying weather conditions is necessary.

• Size: Three point zero seven inches diameter by two point one five inches height
• Temperature Range: From negative forty to one hundred seventy degrees Fahrenheit
• Light Level Activation: One to three foot-candles

Product Highlights

The Precision P-7275 offers a time delay response feature, enhancing its functionality in energy management systems. Its cadmium sulfide cell ensures accurate light level detection.

Product Information

Standard Information

• Manufacturer: Precision
• UPC: 72056377275

Technical Specifications

• Voltage Rating: 480 V
• Switch Type: SPST
• Temperature Rating: -40 to 170 °F
• Size: 3.07 in diameter x 2.15 in height
• Enclosure Material: Polypropylene
• CSA Approved
• Light Level Turn On: 1 to 3 FC
• Time Delay: Yes
