POWER DRIVE BK57-5/8 Fixed Bore Sheave

Product Description

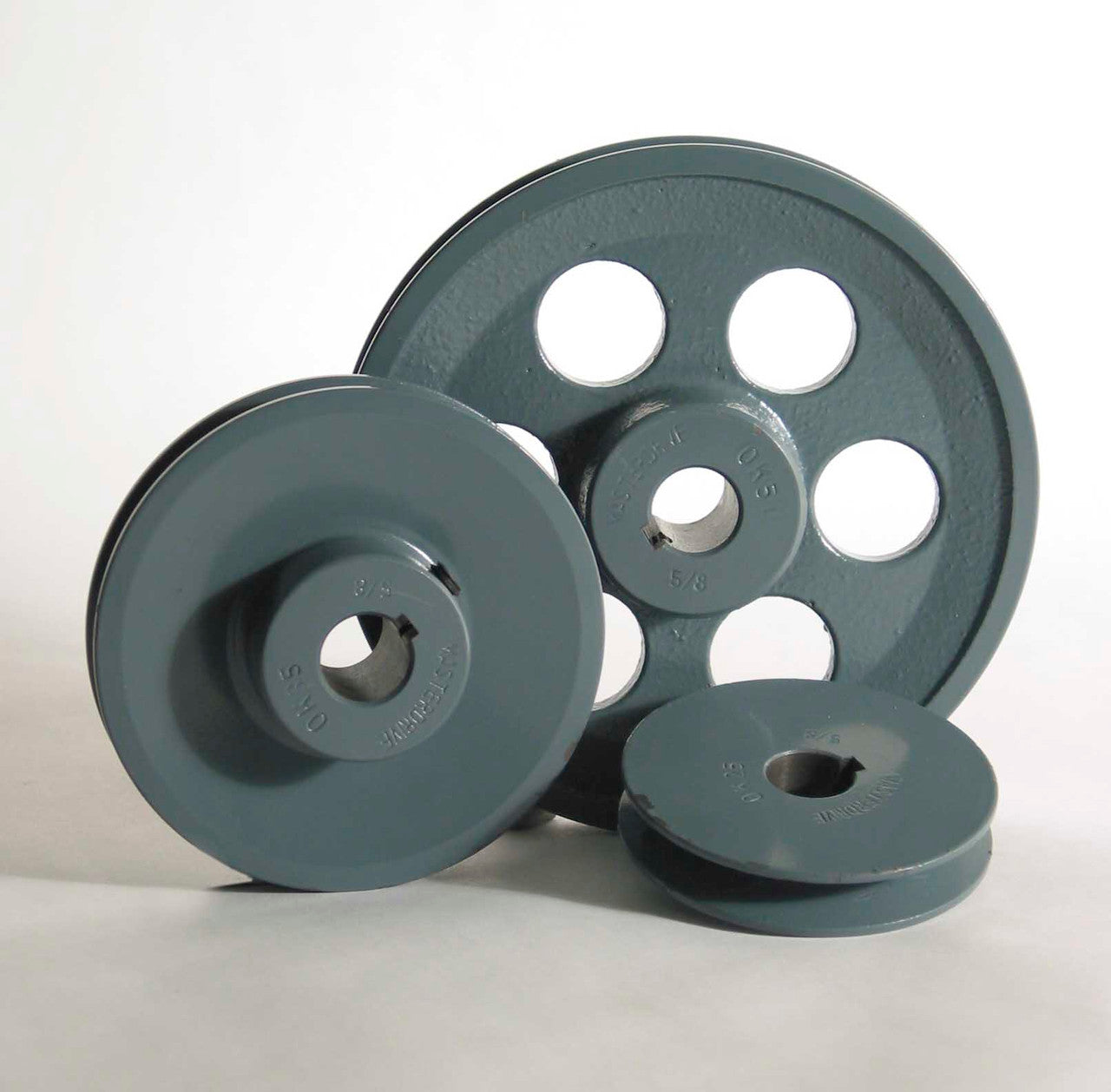

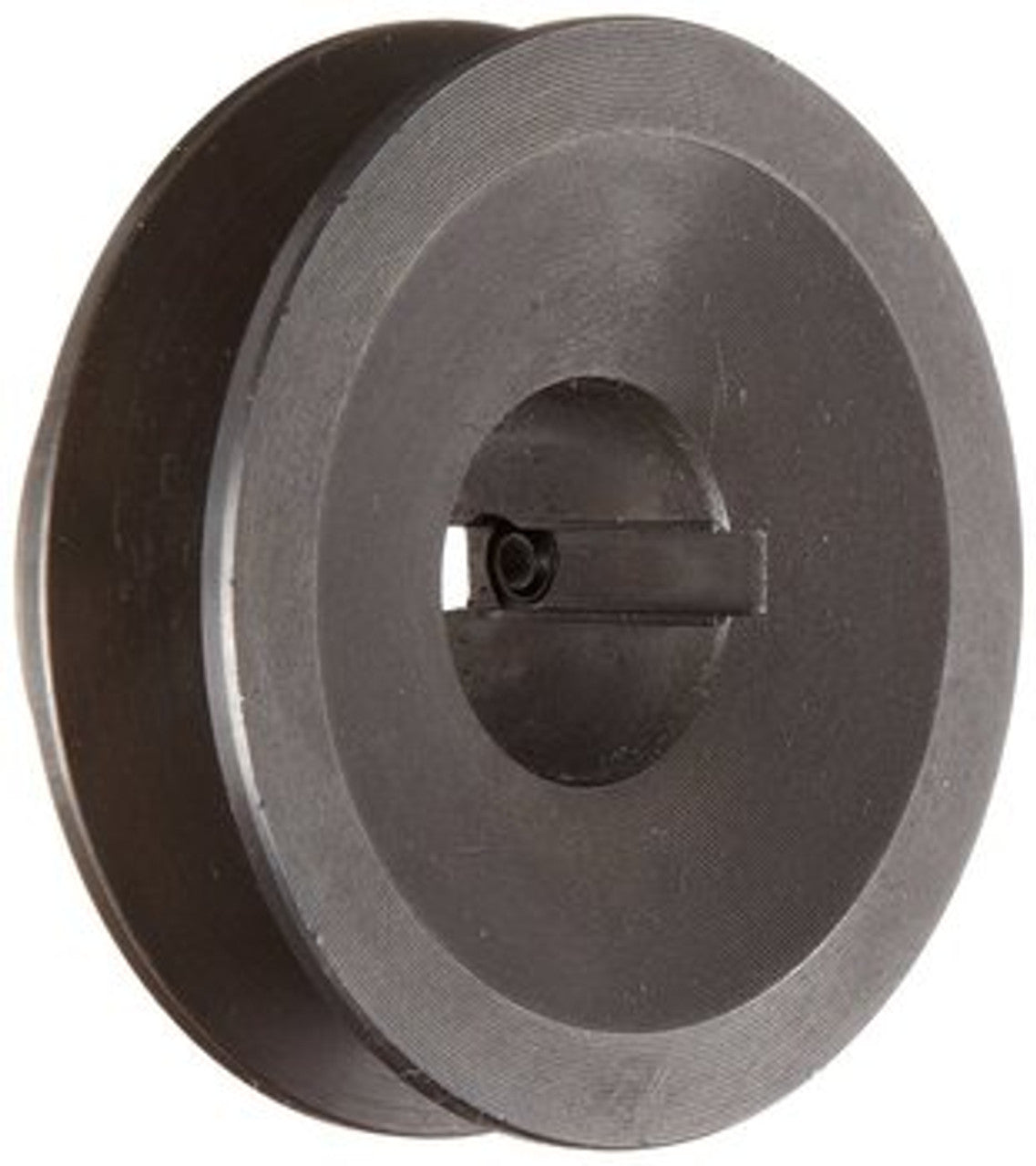

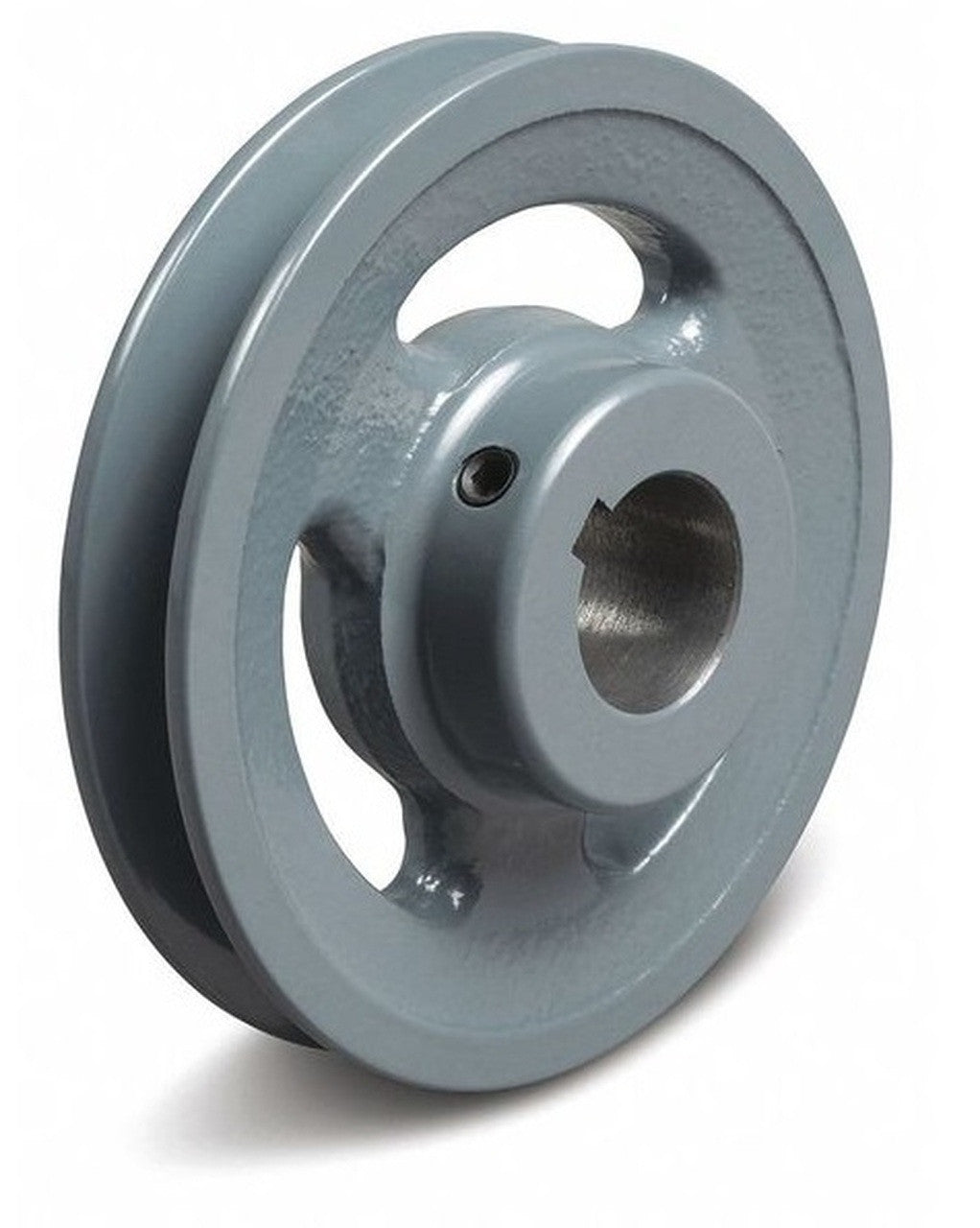

The POWER DRIVE BK57-5/8 is a fixed bore sheave designed for power transmission. This sheave features a single groove and a fixed bore size of 5/8 inches. It has an outside diameter of five point four five inches, making it suitable for various applications. It works seamlessly with four belt series: 4L, A, 5L, and B. The sheave is constructed from durable cast iron and includes a keyway for proper alignment in power transmission setups.

• Single groove sheave built for power transmission.
• Compatible with belt series: 4L, A, 5L, and B.
• Features fixed bore size of 5/8 inches and keyway.

Product Highlights

This sheave is essential in machinery that requires reliable power transfer. Use it in belt-driven systems to ensure efficiency and durability.

Product Information

Standard Information

• Brand: POWER DRIVE
• MPN: BK57-5/8

Technical Specifications

• Groove Quantity: 1
• Mounting Type: Finished Bore
• Belt Series: 4L | A | 5L | B
• Keyway: Yes
• Outside Diameter: 5.45 inches
• Pitch Diameter Minimum: 4.7 inches
• Pitch Diameter Maximum: 5.1 inches
• Bore Size: 0.625 inches
• Belt Width Minimum: 0.5 inches
• Belt Width Maximum: 0.656 inches
• Material: Cast iron
