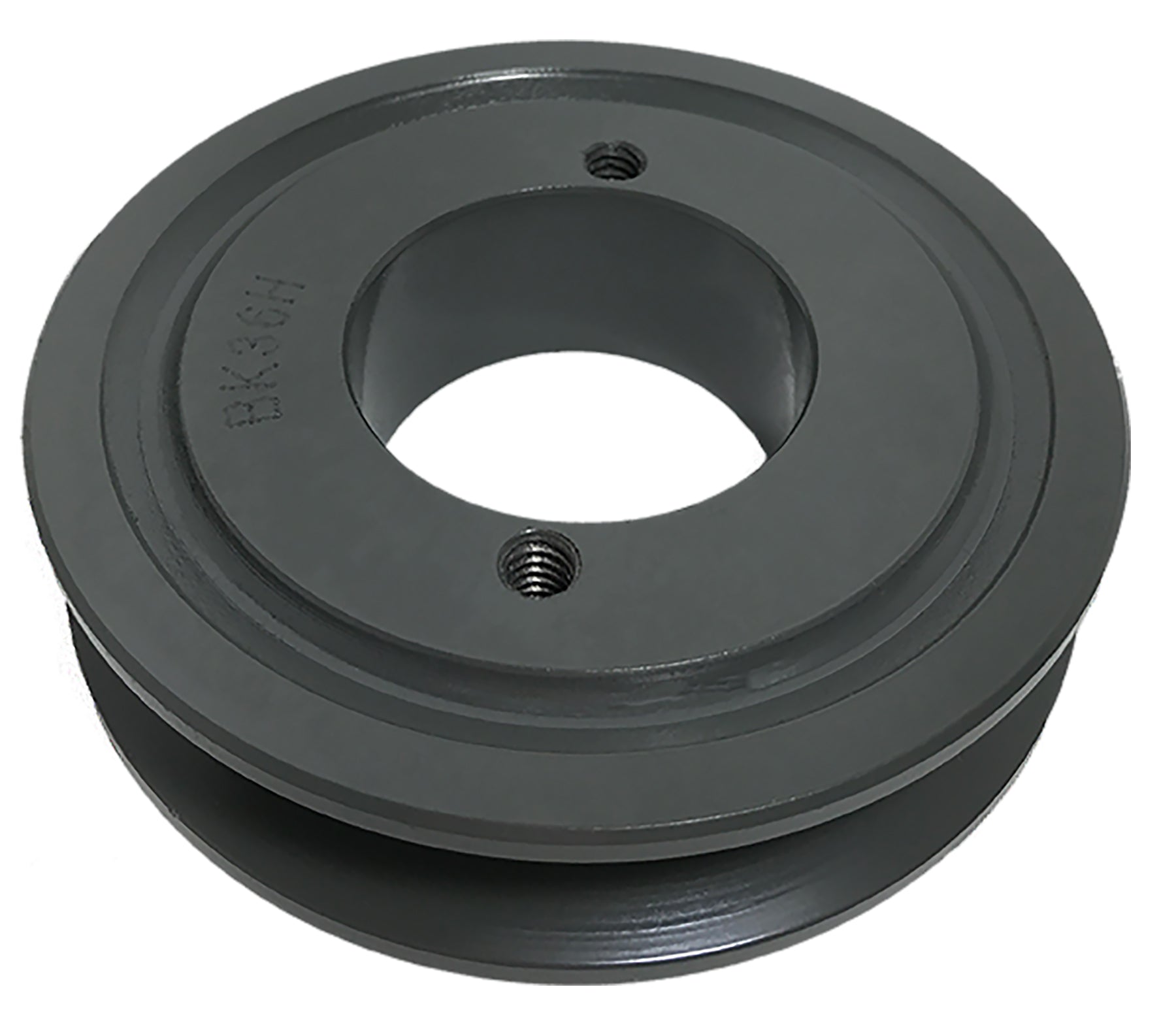

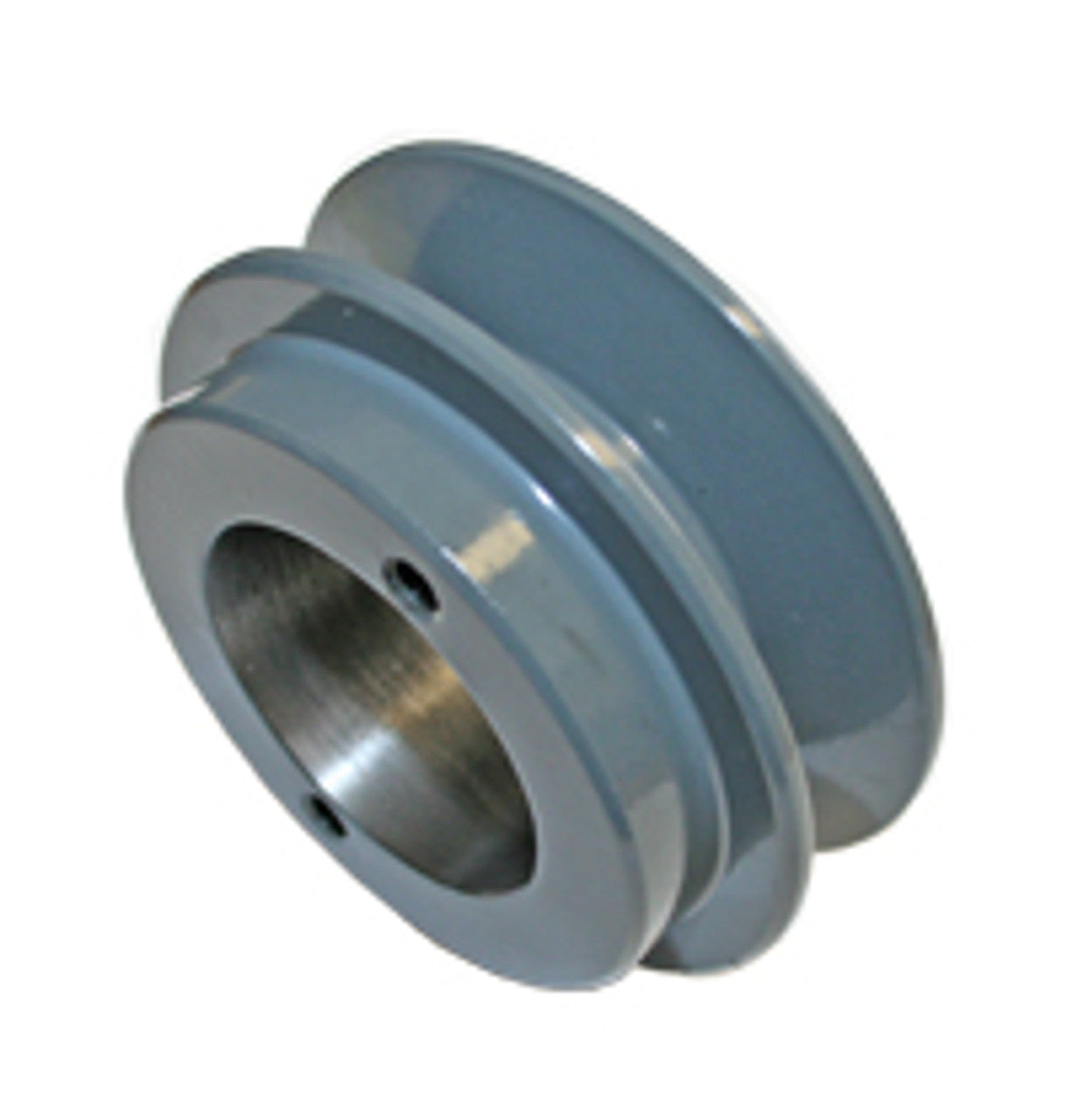

Power Drive BK36H Fixed Pitch Sheave

Product Description

The Power Drive BK36H is a fixed pitch sheave ideal for power transmission applications. This component features a single groove design, efficiently working with A (4L) and B (5L) V-belts. The sheave is made from durable cast iron and has an outside diameter of three point seventy-five inches. It requires an H style bushing for proper installation and utilizes QTL quick detachable taper bushings for convenience.

• Single groove design
• Compatible with A (4L) and B (5L) V-belts
• Requires H style bushing

Product Highlights

The Power Drive BK36H sheave is a robust choice for applications needing reliable power transmission.

Product Information

Standard Information

• Manufacturer Part Number: BK36H
• Brand: Power Drive

Technical Specifications

• Sheave Type: BK
• Grooves: 1
• Outside Diameter: 3.75 inches
• Material: Cast Iron
• For Belt Type: 4L, 5L, A, or B
• Bore Type: QD
• Bore Description: Bored for H Bushing
• Face Width: 0.875 inches
• Overall Length: 1.500 inches
• Min. Bore: 0.375 inches
• Unit System: Inch
• Bushing: H
• Pitch Dia. A: 3.000 inches
• Pitch Dia. B: 3.400 inches
• Weight: 1.20 lb
