Power Drive AK54-1/2 Fixed Pitch Sheave

Product Description

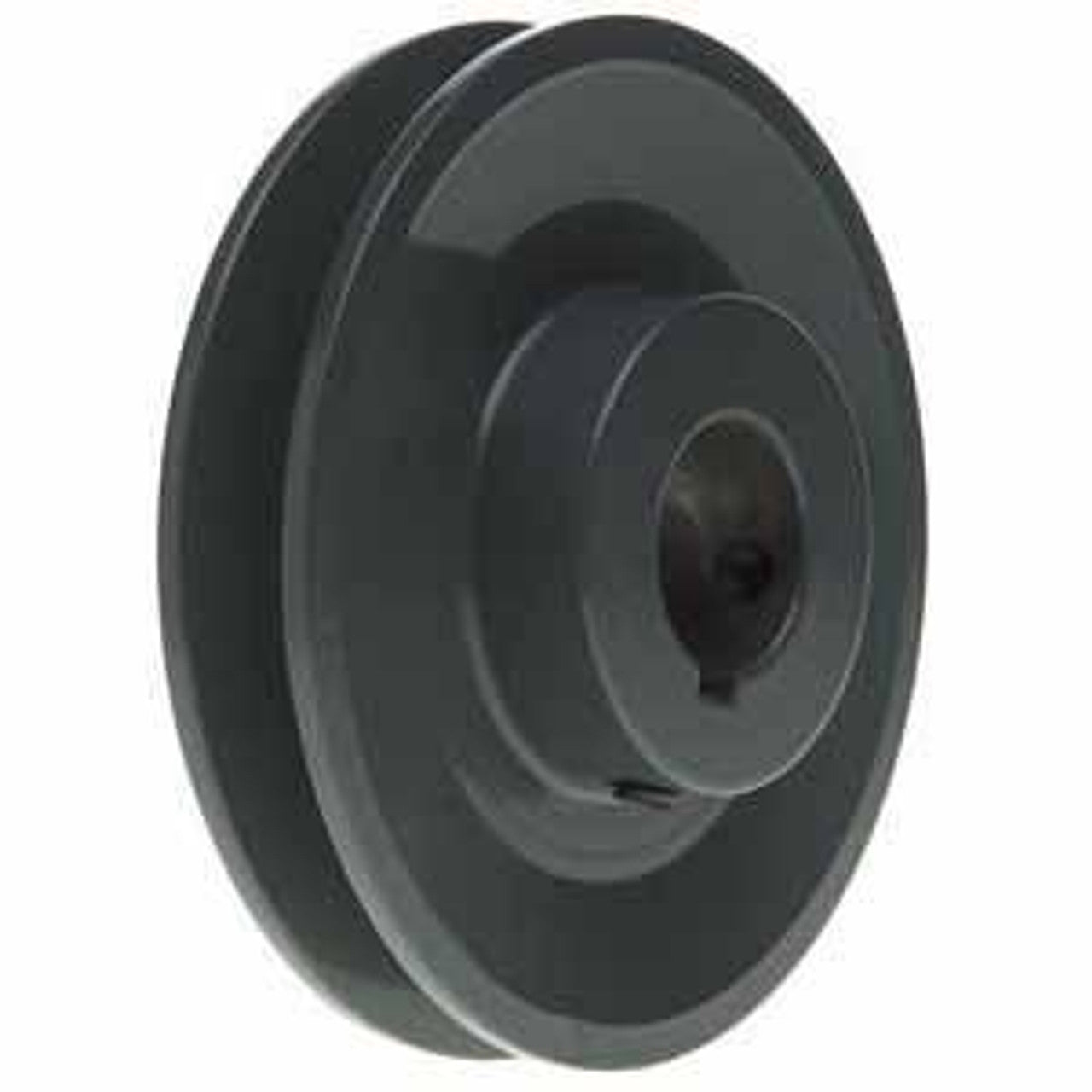

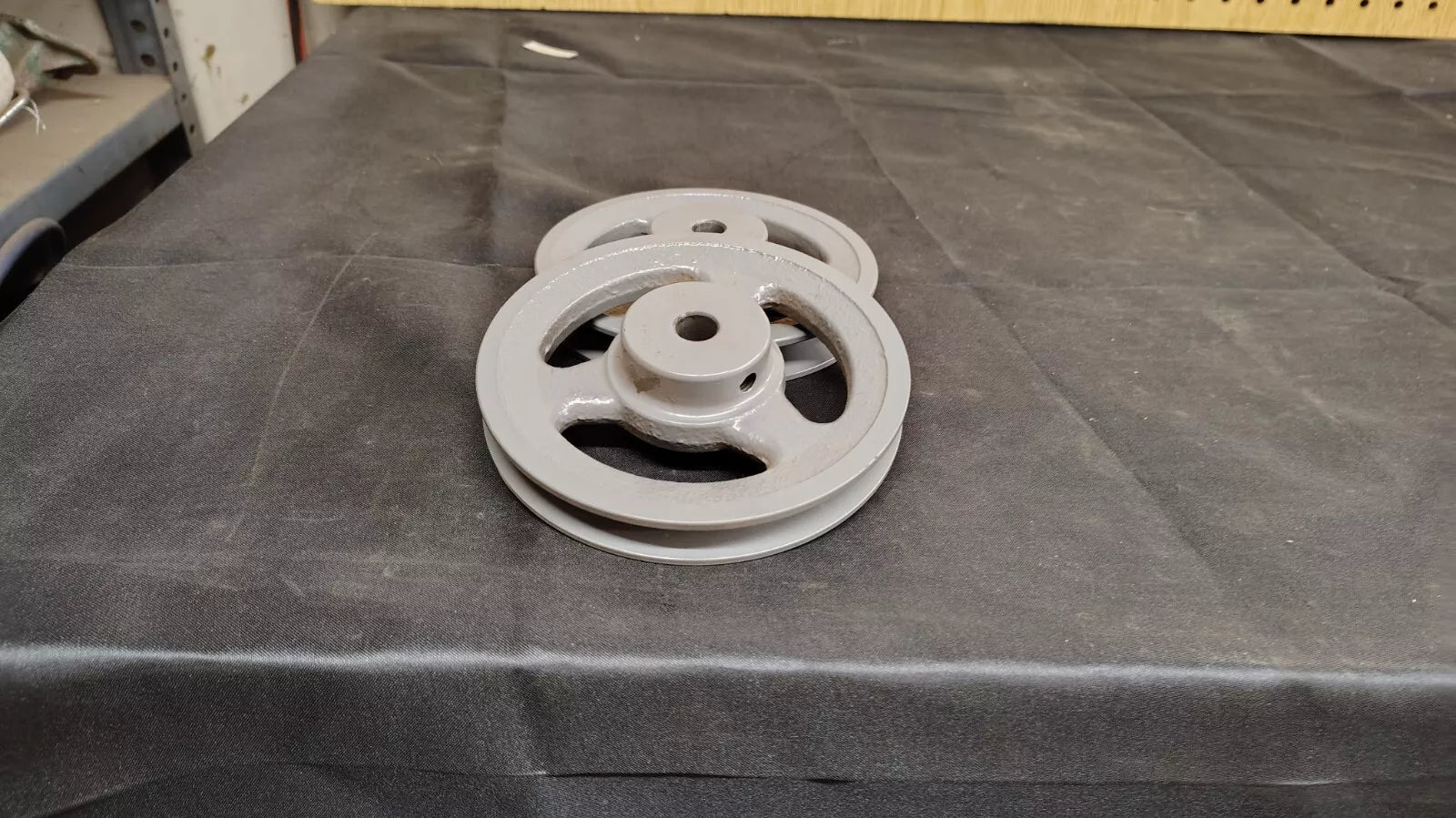

The Power Drive AK54-1/2 is a fixed pitch sheave with a half-inch bore. This sheave features a single groove, making it suitable for use with 3L, 4L, and A belt series. With an outside diameter of five point twenty-five inches, this sheave is built for power transmission applications and has a finished bore without a keyway.

• Type: Fixed Pitch Sheave
• Grooves: Single Groove
• Mounting Method: Finished Bore

Product Highlights

This sheave is designed for efficiency in power transfer across various machinery.

Product Information

Standard Information

• Brand: PowerDrive
• MPN: AK54-1/2

Technical Specifications

• Type: Fixed Pitch Sheave
• Number of Grooves: 1
• Outside Diameter: 5.25 inches | 133.35 millimeter
• Bore Size: 0.5 inches | 12.7 millimeter
• Mounting Method: Finished Bore
• Belt Series: 3L | 4L | A
• Keyway: No
• Material: Cast Iron
• Pitch Diameter Minimum: 4.66 inches | 118.364 millimeter
• Pitch Diameter Maximum: 5 inches | 127 millimeter
• Belt Width Minimum: 0.375 inches | 9.525 millimeter
• Belt Width Maximum: 0.5 inches | 12.7 millimeter
