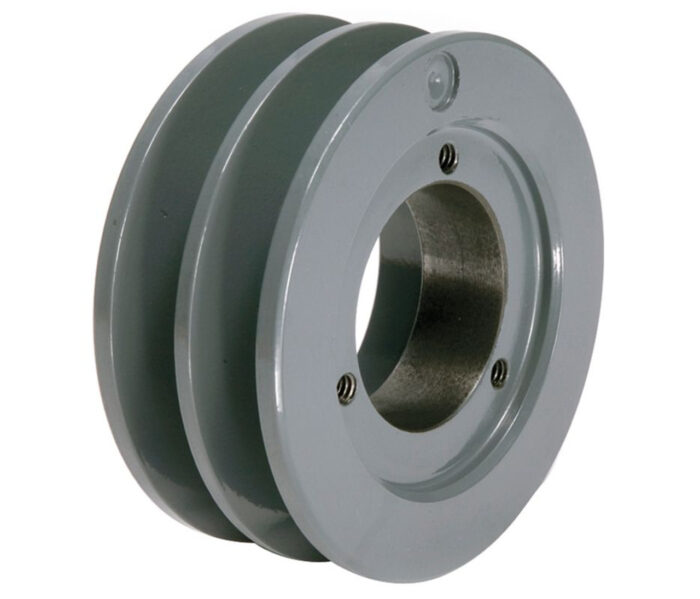

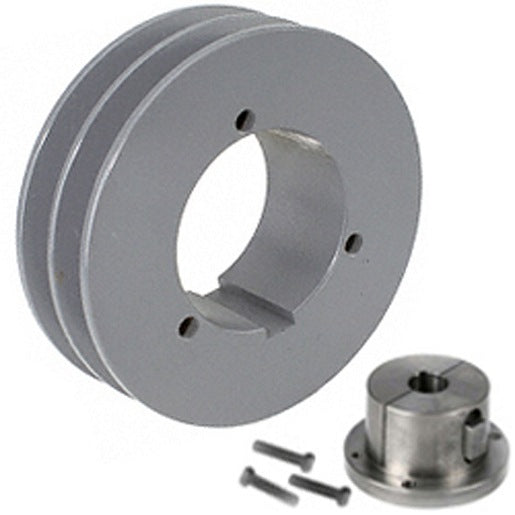

POWER DRIVE 2AK56H Pulley

Product Description

The POWER DRIVE 2AK56H pulley is suitable for H-series bushings. It has a double groove designed to work with double banded A-series v-belts, two single A-series v-belts, or two single 3L-series v-belts. The pulley is made from cast iron and includes a protective coating for corrosion resistance. It is dynamically balanced for optimal performance.

• Designed for H-series bushings
• Double groove accepts multiple v-belt configurations
• Made from durable cast iron with corrosion-resistant finish

Product Highlights

The pulley is essential for effective power transmission in various mechanical applications.

Product Information

Standard Information

• MPN: 2AK56H
• Pulley Size: 2AK56H

Technical Specifications

• Grooves: 2
• Sheave Type: AK
• Bore Type: QD
• Bore Description: Bored for H Bushing
• Bushing: H
• Outside Diameter (O.D.): 5.45 inches
• Pitch Diameter for 4L/A Belts (P.D.): 5.20 inches
• Pitch Diameter for 3L Belts (P.D.): 4.86 inches
• Width (O.L.): 1.5 inches
• Face Width: 1.375 inches
• Overall Length: 1.500 inches
• Weight: 3.6 lbs
• Material: Cast Iron
• Compatible Belt Types: 4L, 3L, or A
• Belt Size: 4L, A
