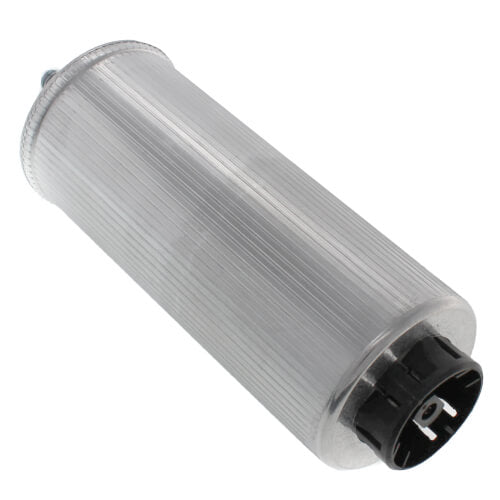

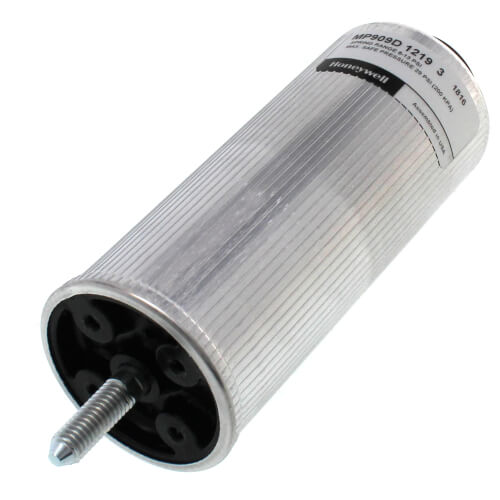

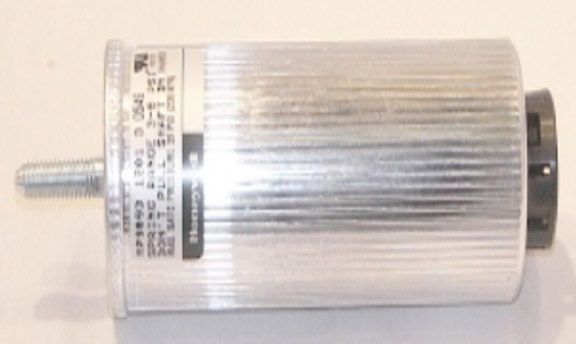

Honeywell MP909D1219 Pneumatic Damper Actuator 8-13 PSI Spring Range

Product Description

The Honeywell MP909D1219 is a pneumatic damper actuator designed for efficient proportional control of variable volume terminal units and small dampers, operating within a spring range of 8 to 13 PSI. Ideal for applications requiring reliable and precise airflow management without the need for a bracket or ball joint.

• Optimized for low-friction operation and durability.
• Versatile mounting options suitable for various installation requirements.
• Equipped with a protected barb connector for secure tubing connection.

Product Highlights

This damper actuator is renowned for its robust ribbed aluminum body and precision in operational range and stroke, making it a preferred choice in HVAC systems management.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MP909D1219

Technical Specifications

• Spring Range: 8 to 13 PSI
• Max Air Pressure: 30 PSI
• Stroke: Approximately 2.4 inches
• Operating Temperature: 50°F to 140°F
• Connection Type: Barb fitting for 3/32 inch O.D. tubing
