PLP IP-53-2 Polymer Spool Insulator

Product Description

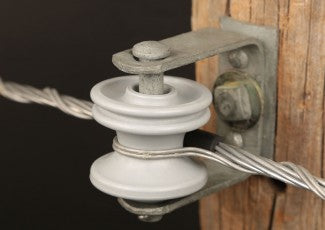

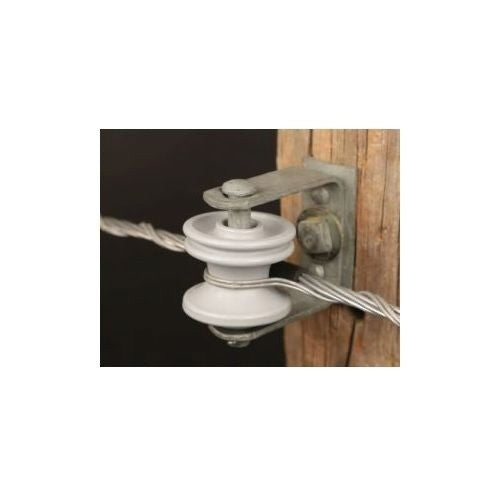

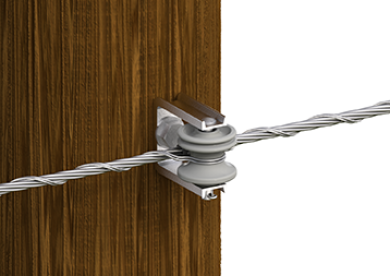

The PLP IP-53-2 polymer spool insulator is made to insulate and support primary neutral and secondary conductors. This product is ideal for use at poles or houses with clevis mounting configurations. It is compatible with ANSI C29.3 class 53-2 spool insulator hardware. This insulator fits PLP spool ties and EZ-WRAP spool ties, serving as a direct replacement for porcelain spool insulators.

• Insulates and supports primary neutral and secondary conductors
• Compatible with ANSI C29.3 class 53-2 spool insulator hardware
• Direct replacement for porcelain spool insulators

Product Highlights

This spool insulator is designed to streamline the installation of electrical conductors while ensuring safe operation.

Product Information

Standard Information

• Brand: PLP
• Type: Spool Insulator

Technical Specifications

• Material: Polymer
• Hole Size: 3/4 inches
• Diameter x Length: 3.125 x 3 inches
• Wire Grooves: (1) 7/10 inches R
• ANSI Class: 53-2
• Listings: ANSI 29.5
• Low Freq. Flash Over Dry: 27kV
• Low Freq. Flash Over Wet Vert/Horiz: 12.8/16kV
• Weight per Carton: 16 lbs
• Units per Carton: 48
• Neck Type: A Neck
• Neck Diameter: 1-3/4 inches
