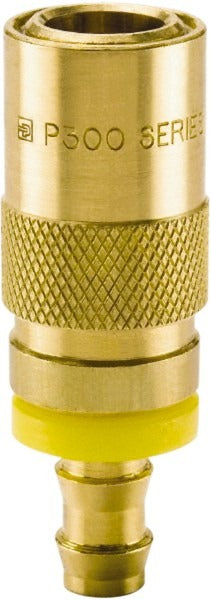

Parker PC504-BP Push-lok Hose Barb Straight Coupler Brass

Product Description

The PARKER PC504-BP is a Push-Lok hose barb straight coupler designed for use in fluid handling applications where a reliable, low-profile connection is required. Constructed from brass, this coupler features a non-threaded shaft with a threaded body connection and is rated for a maximum working pressure of 200 psi. It accepts 0.5-inch inside diameter hose and is built to handle temperatures ranging from -20 degrees F to 400 degrees F. The PC504-BP is part of Parker's Moldmate series, making it a recognized choice for professionals who need consistent, repeatable connections in demanding environments. Installation is handled by qualified fluid system or industrial maintenance technicians.

The PC504-BP is specifically suited for die casting equipment and mold coolant lines, which are the stated applications for the Moldmate series. Its straight coupler geometry and 0.5-inch hose ID sizing make it a straightforward drop-in for coolant circuit assemblies where space and orientation allow a direct inline connection. The brass construction offers solid corrosion resistance in the water-based coolant fluids common in these applications. This coupler ships individually and has a minimum order quantity of one unit.

Key Features

• Brass construction provides corrosion resistance suitable for coolant line service
• 200 psi maximum working pressure rated for demanding industrial fluid circuits
• Accepts 0.5-inch inside diameter Push-Lok hose for tool-free hose assembly
• Operating temperature range of -20 degrees F to 400 degrees F
• Straight coupler geometry for direct inline installation
• Part of the Moldmate series, designed for die casting and mold coolant applications

Compatibility

Designed for use with die casting equipment and mold coolant lines as part of the Parker Moldmate series. Fits 0.5-inch inside diameter Push-Lok hose.

Installation Notes

Installation should be performed by a qualified fluid systems technician or industrial maintenance professional. Before servicing any coolant line, relieve system pressure completely and allow fluid temperatures to drop to a safe handling level. Push-Lok style fittings require the hose to be pushed firmly onto the barb until fully seated — inspect the connection visually before returning the system to service. Follow applicable facility safety procedures and equipment manufacturer guidelines for pressure testing after assembly.
