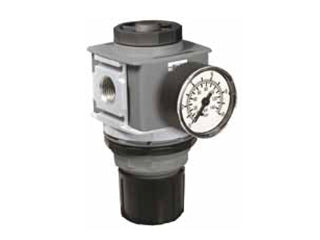

Parker P33RA96BNGP P33 Standard Global Modular Regulator

Product Description

The Parker P33RA96BNGP is a standard global modular regulator designed for effective air preparation in pneumatic systems. It features a three-quarter inch NPT port, making it suitable for various applications in air management and control.

• Port Size: Three-quarter inch NPT
• Supply Pressure Range: Zero to three hundred PSIG
• Maximum Flow: Up to two hundred twelve SCFM

Product Highlights

This regulator operates within a temperature range of negative twenty-five degrees Celsius to sixty-five point five degrees Celsius. It is ideal for applications requiring reliable pressure regulation in pneumatic systems.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: P33RA96BNGP

Technical Specifications

• Port: 3/4 NPT
• Supply Pressure Range: 0 to 300 PSIG (0 to 20 bar)
• Secondary Pressure Range: 2 to 125 PSIG (0 to 8.6 bar)
• Gauge Type: Round
• Relieving/Non-relieving: Relieving
• Maximum Flow: 212 SCFM (100 dm3/s)
• Operating Temperature: -25°C to 65.5°C (-13°F to 150°F)
• Air Preparation Series: Global Modular
• Air Preparation Product Type: Regulator
• Series: P33 Standard
• Port Inch/BSP: NPT
• Flow Range: > 200 SCFM
• Parker Division: Pneumatic
• Parker Group: Automation
