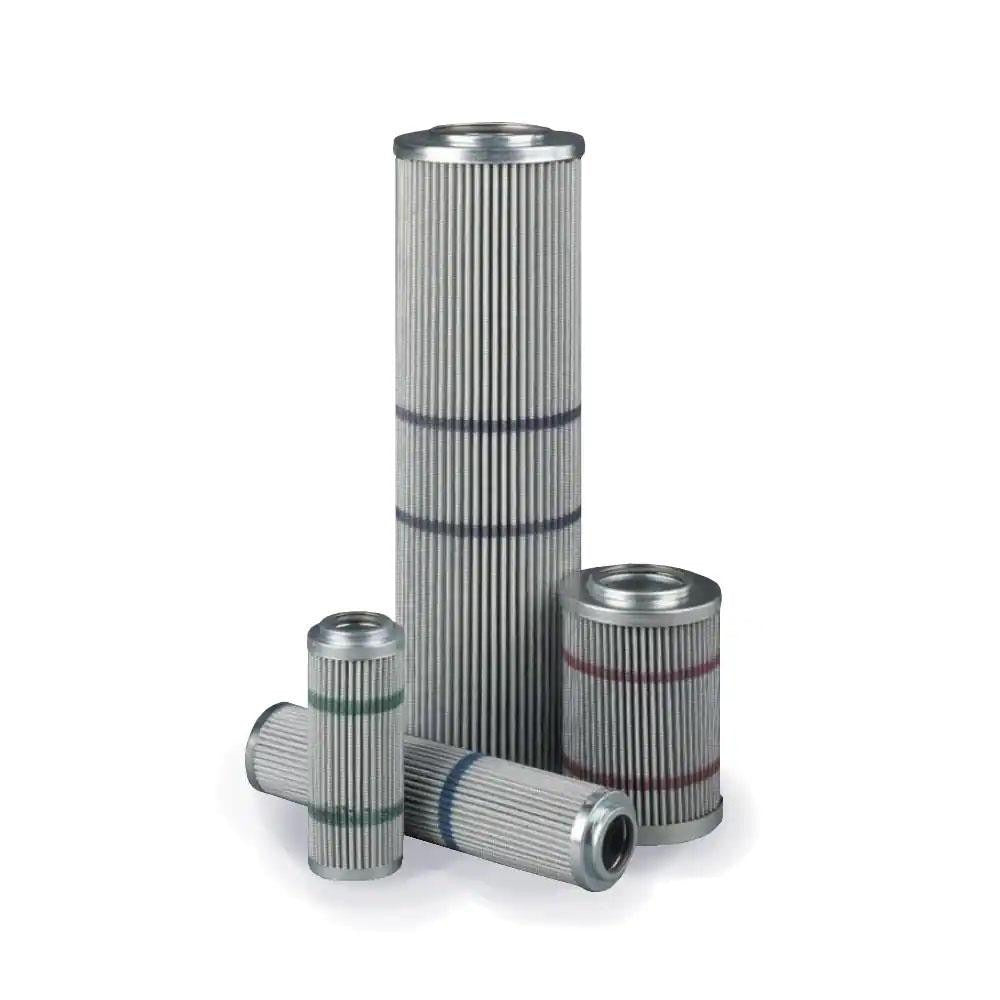

Parker 930118Q Hydraulic Filter Element 20 Micron

Product Description

The PARKER 930118Q is a hydraulic filter element designed to remove oil contaminants from hydraulic systems. Constructed from microglass filter media, it delivers a 20-micron filtration rating suitable for demanding fluid power applications. The element measures 1.7 inches inner diameter and 3.08 inches outer diameter, making it a compact, drop-in replacement for compatible filter housings. This type of element is typically installed by hydraulic system technicians and industrial maintenance professionals servicing mobile or stationary hydraulic equipment. The microglass construction provides consistent particle capture efficiency across a range of operating conditions and fluid viscosities.

This filter element is intended for use in hydraulic return, pressure, or offline filtration circuits where oil cleanliness is critical to system longevity. It suits applications in industrial machinery, mobile equipment, and power units requiring 20-micron filtration. The 930118Q serves as a direct replacement for several OEM and aftermarket part numbers, including PTI part number HF3-030-JF-B, Fairey Arlon R960-H-0825A, Pall HC9600FKT8H, Donaldson P164369, Stauff SP070E20B, and Vickers V6021B2C20, simplifying procurement when cross-referencing legacy service records.

Key Features

• 20-micron filtration rating for effective hydraulic oil contaminant removal
• Microglass filter media construction for consistent particle capture efficiency
• 1.7 inches inner diameter and 3.08 inches outer diameter for precise housing fitment
• Direct cross-reference replacement for PTI, Pall, Donaldson, Stauff, Fairey Arlon, and Vickers elements
• Sold as a single element, compatible with standard filter housings accepting this element size

Compatibility

This element is a direct replacement for PTI HF3-030-JF-B, Fairey Arlon R960-H-0825A, Pall HC9600FKT8H, Donaldson P164369, Stauff SP070E20B, and Vickers V6021B2C20. It fits standard hydraulic filter housings designed for elements with a 1.7-inch inner diameter and 3.08-inch outer diameter.

Installation Notes

Hydraulic filter elements should be replaced by qualified hydraulic technicians or industrial maintenance personnel. Before servicing, depressurize and isolate the hydraulic circuit and allow the fluid to cool to a safe handling temperature. Dispose of used elements and drained fluid in accordance with local environmental regulations. Verify element dimensions and micron rating against the housing specification before installation to ensure proper sealing and filtration performance.
