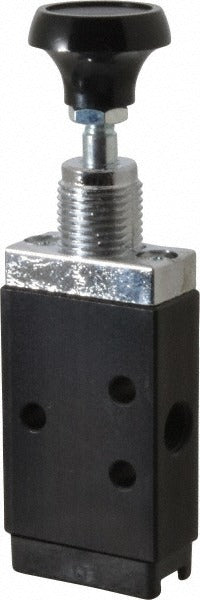

Parker 414411000 3-way 2-position Valve 1/8 Inch Npt

Product Description

The PARKER 414411000 is a 3-way, 2-position mechanically operated valve with a button-spring return actuator. It controls the flow of air or compatible media in pneumatic circuits by shifting between two flow paths when the button is depressed, then returning to its default position via spring force. The valve uses a 1/8 inch NPT inlet and carries a Cv rating of 0.200, making it suited to low-flow pneumatic control applications. It is rated for working pressures from 0 to 150 psi and operates across a temperature range of 32 to 175 degrees F. Pneumatic system technicians and automation specialists are the typical installers.

This valve is used in pneumatic control circuits where a momentary manual input is needed to shift a flow path and automatic reset is required when the operator releases the button. Typical applications include machine tool pneumatics, fixture controls, and small actuator circuits in light industrial and manufacturing environments. Its compact 1/8 inch NPT port size suits panel-mounted or inline installations where space is limited and flow demands are modest.

Key Features

• 3-way, 2-position valve design for versatile pneumatic flow switching
• Button-spring return actuator provides momentary manual actuation with automatic reset
• 1/8 inch NPT inlet for direct integration into standard pneumatic plumbing
• 0 to 150 psi working pressure range covers most light industrial pneumatic circuits
• Cv rating of 0.200 suited to low-flow control applications
• Operating temperature range of 32 to 175 degrees F supports typical indoor industrial environments

Compatibility

Designed as an OEM-style replacement or new-installation component for 1/8 inch NPT pneumatic control circuits requiring a 3-way, 2-position mechanically operated valve with spring return actuation.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician. Depressurize the pneumatic circuit fully before removing or installing any valve to prevent injury or component damage. Apply thread sealant appropriate for pneumatic service to the NPT threads and avoid overtightening, which can crack the valve body. Verify that system pressure and media compatibility fall within the rated limits before returning the circuit to service.
