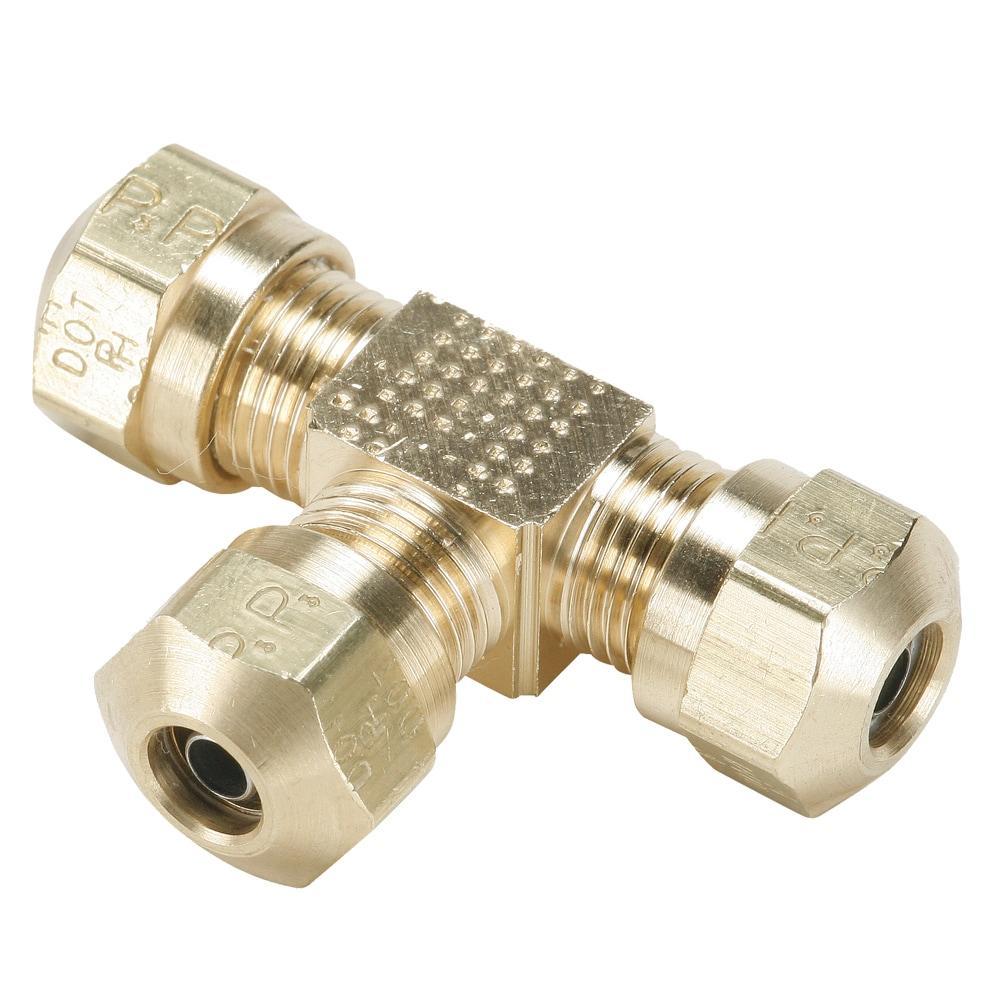

Parker 264NTA-8 Compression Style Fitting 1/2 in Compression Brass

Product Description

Parker 264NTA-8 is a compression style fitting designed for high-pressure applications. This fitting offers a reliable metal-to-metal seal, making it a durable solution for connecting tubing in various installations. The compression end style allows for easy assembly and disassembly without the need for soldering or welding.

• Designed for high-pressure service
• Resistant to mechanical pull-out
• Meets SAE J512 and J513 standards

Product Highlights

This fitting is suitable for refrigeration applications and provides dependable connections in air brake systems for trucks and trailers.

Product Information

Standard Information

• Brand: Parker
• Manufacturer: Parker HVAC Filtration

Technical Specifications

• Type: Extruded Short
• Material: Brass
• Nominal Size: 1/2 in
• End Style: Compression
• Fitting/Connector Type: Tee
• Hex Size: 5/8 in
• Pressure Rating: 150 psi
• Temperature Rating: -40 to 93 degrees C
• Length: 0.88 in
• Series: 41FS
• Domestic/Import: Domestic
