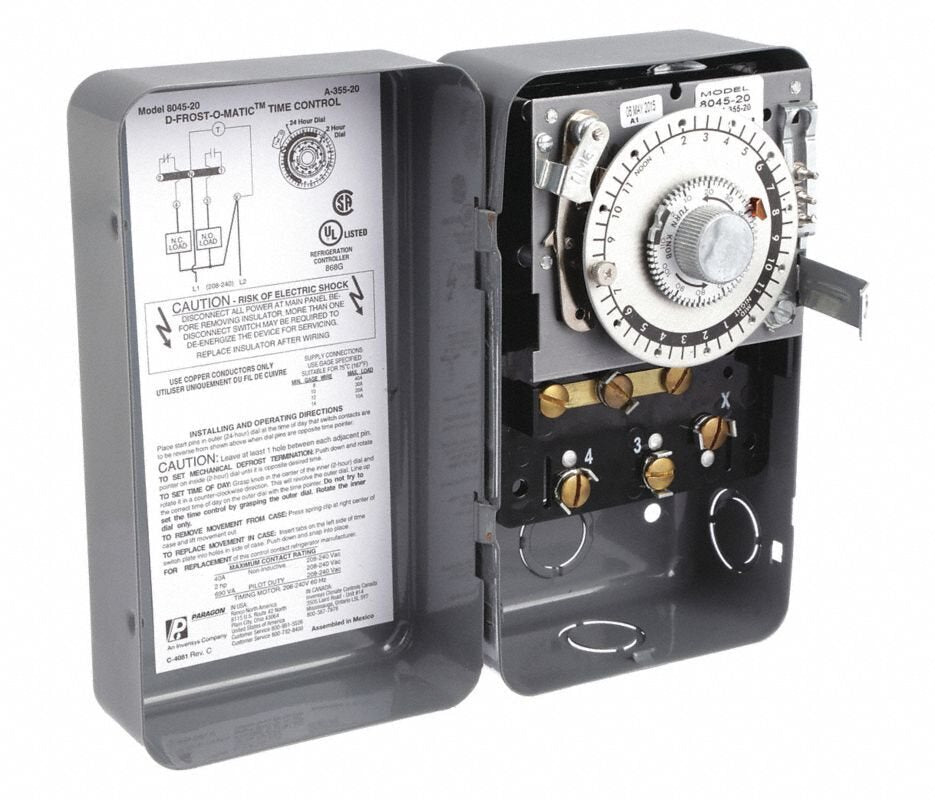

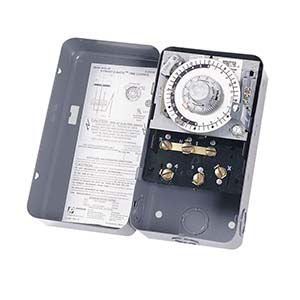

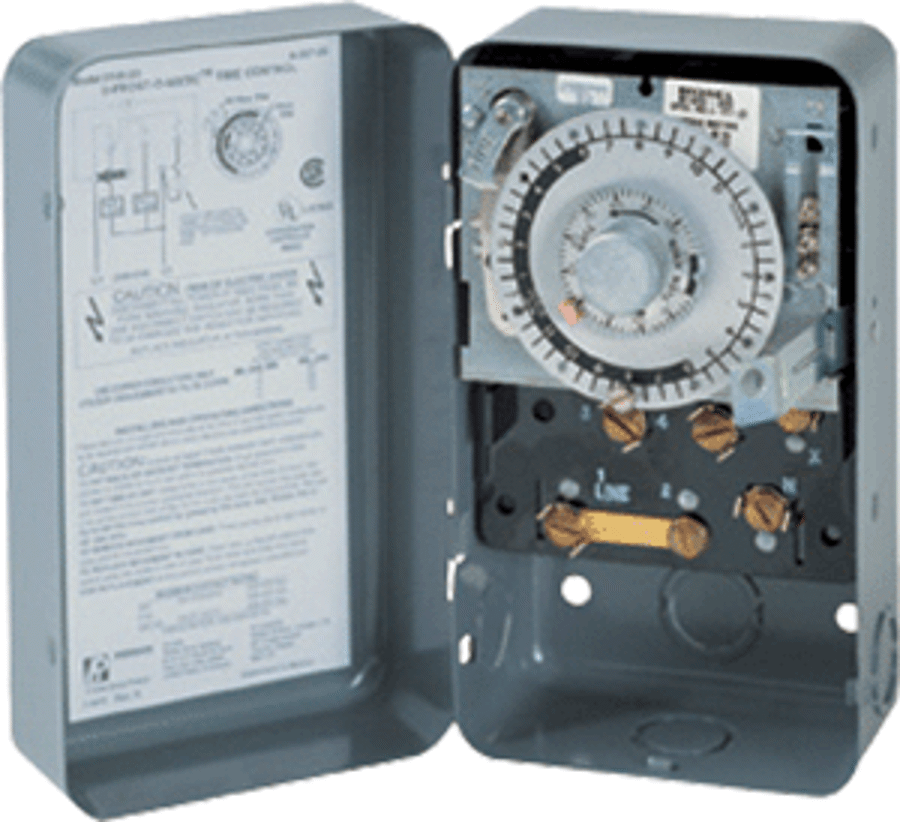

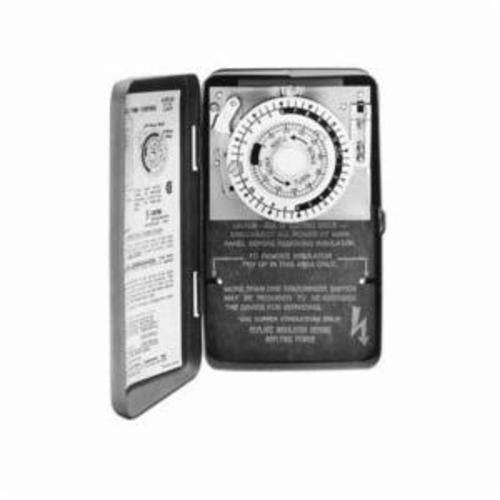

Robertshaw 8045-20 Mechanical Defrost Timer, 4 to 110 min Defrost, 208 to 240 VAC, 2 hp, SPDT Contact Form, 1 Poles

Product Description

The Robertshaw 8045-20 Mechanical Defrost Timer is designed for commercial refrigeration systems. It operates at 208 to 240 VAC and is ideal for automatic defrosting in freezers and refrigerators. This robust timer accommodates multiple defrosting systems, including electric heaters and hot gas systems.

• Operates within a range from four to one hundred ten minutes for defrost cycles.
• Features a single pole double throw (SPDT) contact form.
• Rated for two horsepower with a high amperage capacity of forty amps.

Product Highlights

This timer guarantees a reliable operation, essential for maintaining system efficiency and preventing frost buildup in commercial refrigeration units.

Product Information

Standard Information

• Brand: Robertshaw
• MPN: 8045-20

Technical Specifications

• Voltage Rating: 208 to 240 VAC
• Amperage Rating: 40 A
• Horsepower: 2 hp
• Defrost Time: 4 to 110 min
• Number of Poles: 1
• Contact Form: SPDT
• Operation Mode: Automatic
• Enclosure Type: Steel
• Series: 8000
• Safety Features: Mechanical time-driven defrost termination
