Panduit UTPSP4Y PanNet TX6 PLUS Patch Cord Cat 6 Class D/E

Product Description

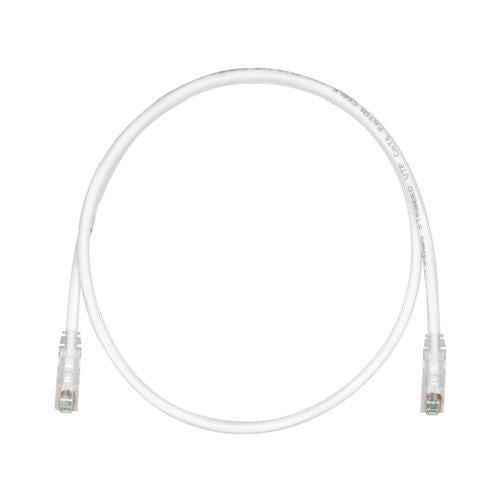

Panduit PanNet TX6 PLUS Patch Cord, MPN: UTPSP4Y, is designed for reliable connectivity in data communication. The cord is constructed using 24 AWG unshielded twisted pair stranded copper cable. This patch cord is suitable for both T568A and T568B wiring schemes, making it versatile for various installations.

• Constructed with 24 AWG stranded copper
• Compatible with T568A and T568B wiring
• 4-foot length for flexible installation

Product Highlights

Ideal for networking applications, the cord supports data rates suitable for various Ethernet standards.

Product Information

Standard Information

• Manufacturer: Panduit
• MPN: UTPSP4Y

Technical Specifications

• Category Type: Cat 6/Class D/E
• Conductor Size: 24 AWG
• Conductor Type: U/UTP Stranded Copper
• Connector Type: RJ45 Modular Plug
• Cord Length: 4 ft
• Temperature Rating: 14 to 140 deg F
• Application: Supports 10BASE-T, 100BASE-T, 1000BASE-T Ethernet, and VoIP
• Standards/Approvals: RoHS Compliant, ANSI/TIA-568-C.2 Compliant, UL 1863
