PANDUIT PV10-14R-D TERMINALS
PANDUIT Panduit PV10-14R-D Vinyl Insulated Ring Terminal
PANDUIT Panduit PV10-14R-D Vinyl Insulated Ring Terminal
PANDUIT Panduit PV10-14R-D Vinyl Insulated Ring Terminal
PANDUIT PV10-14R-D TERMINALS

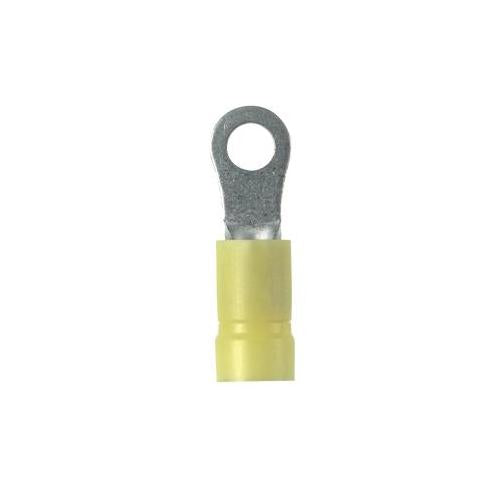

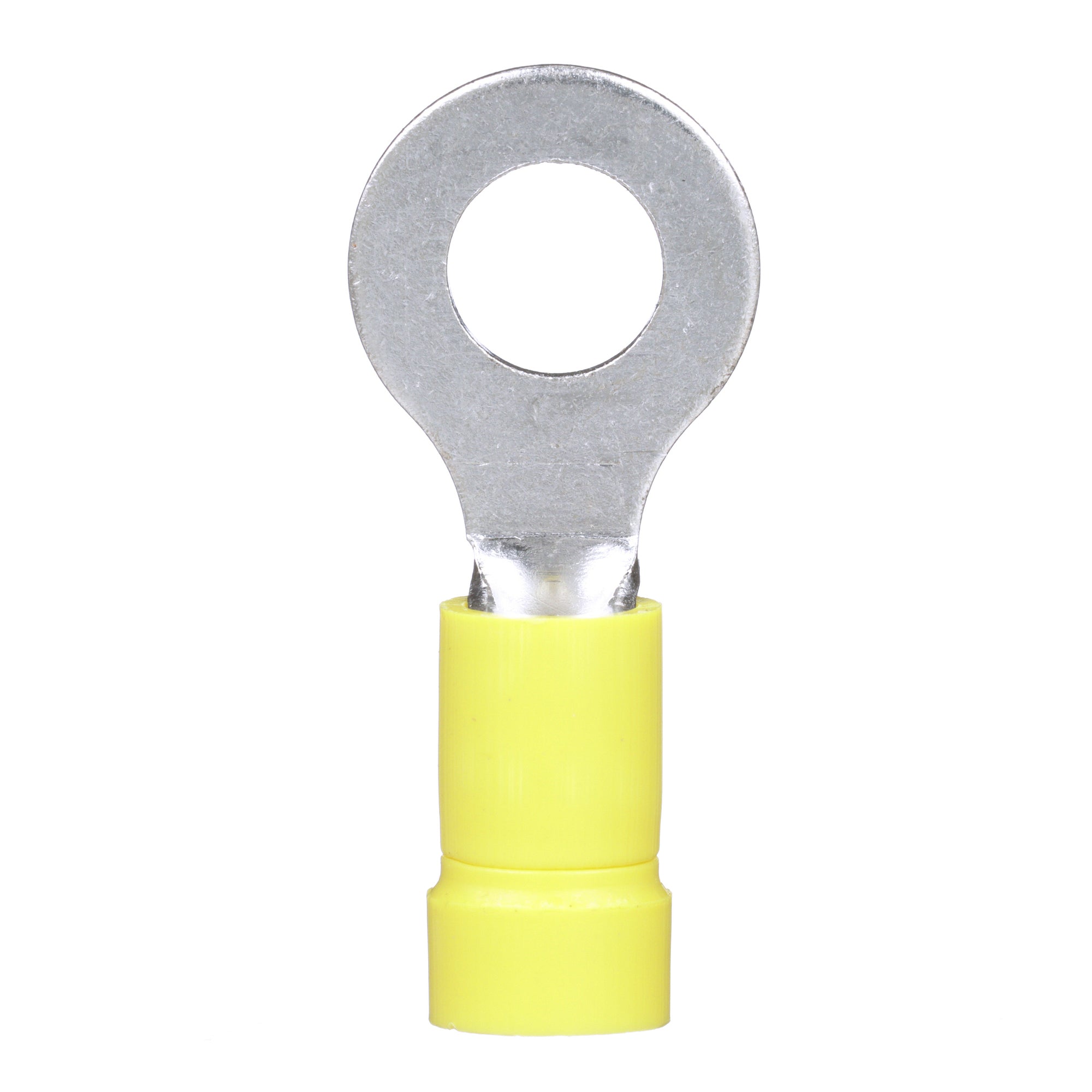

Panduit PV10-14R-D Vinyl Insulated Ring Terminal
Panduit PV10-14R-D Vinyl Insulated Ring Terminal
Panduit PV10-14R-D Vinyl Insulated Ring Terminal

Panduit PV10-14R-D Vinyl Insulated Ring Terminal

Brand: PANDUIT
SKU: PV10-14R-D
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The PV10-14R-D is a vinyl insulated ring terminal from Panduit. This terminal features a brazed seam to prevent barrel splitting during crimping. The internal barrel serrations provide good wire contact and tensile strength.

  • Designed for solid and stranded conductors.
  • Compatible with wire sizes 12 to 10 AWG.
  • Rated for 600 VAC and a maximum insulation temperature of 221°F (105°C).

Product Highlights

This terminal ensures a secure connection in high vibration applications, making it suitable for various electrical installations.

Product Information

Standard Information

  • Manufacturer: Panduit
  • Material: Copper

Technical Specifications

  • Type: Type PV-R Loose Piece
  • Color: Yellow
  • Stud Size: 1/4 in
  • Length: 1.23 in
  • Voltage Rating: 600 VAC
  • Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
  • Insulation: Vinyl
  • Finish: Tin-Plated
  • Connection: Funnel Entry
