Panduit LCA3/0-12-X Copper Compression Lug

Product Description

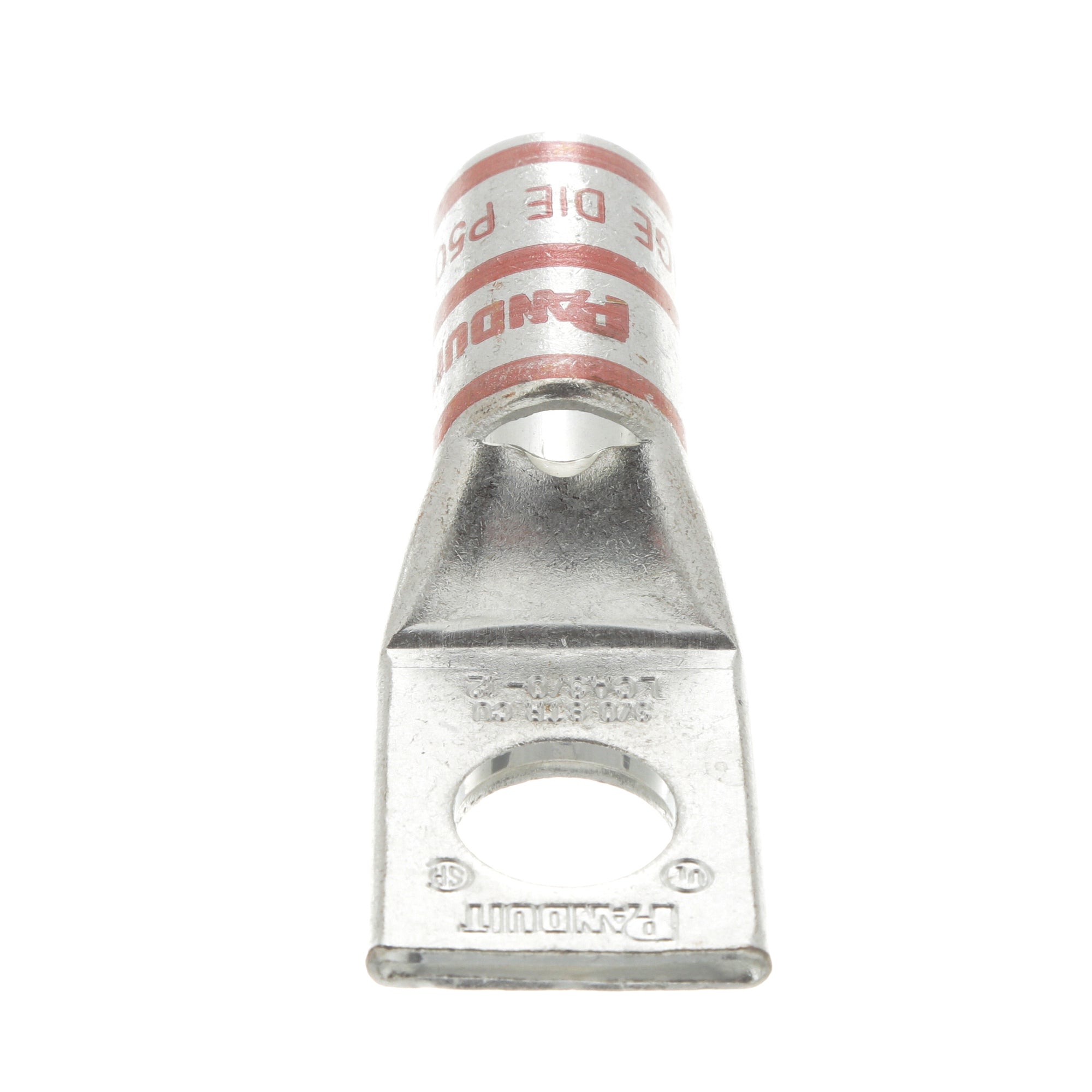

The LCA3/0-12-X is a tin-plated copper compression lug made by Panduit. This product is designed for one-hole use with a standard barrel. It features color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window allows users to visually ensure full conductor insertion. This product is suitable for use with stranded copper conductors.

• Color-coded barrels for easy identification and die selection
• Inspection window for full conductor insertion assurance
• Tin-plated to prevent corrosion

Product Highlights

This compression lug meets UL and CSA standards, rated for up to 35 kV and a temperature of 90 degrees Celsius when installed with compatible crimping tools.

Product Information

Standard Information

• Brand: Panduit
• MPN: LCA3/0-12-X

Technical Specifications

• Barrel: Standard
• Bolt Hole: 1/2 inch
• Gauge: 3/0 AWG
• Holes: 1 hole
• Inspection Hole: Yes
• Lug Material: Copper
• Type: Standard Compression
• UNSPSC Code: 39121400
