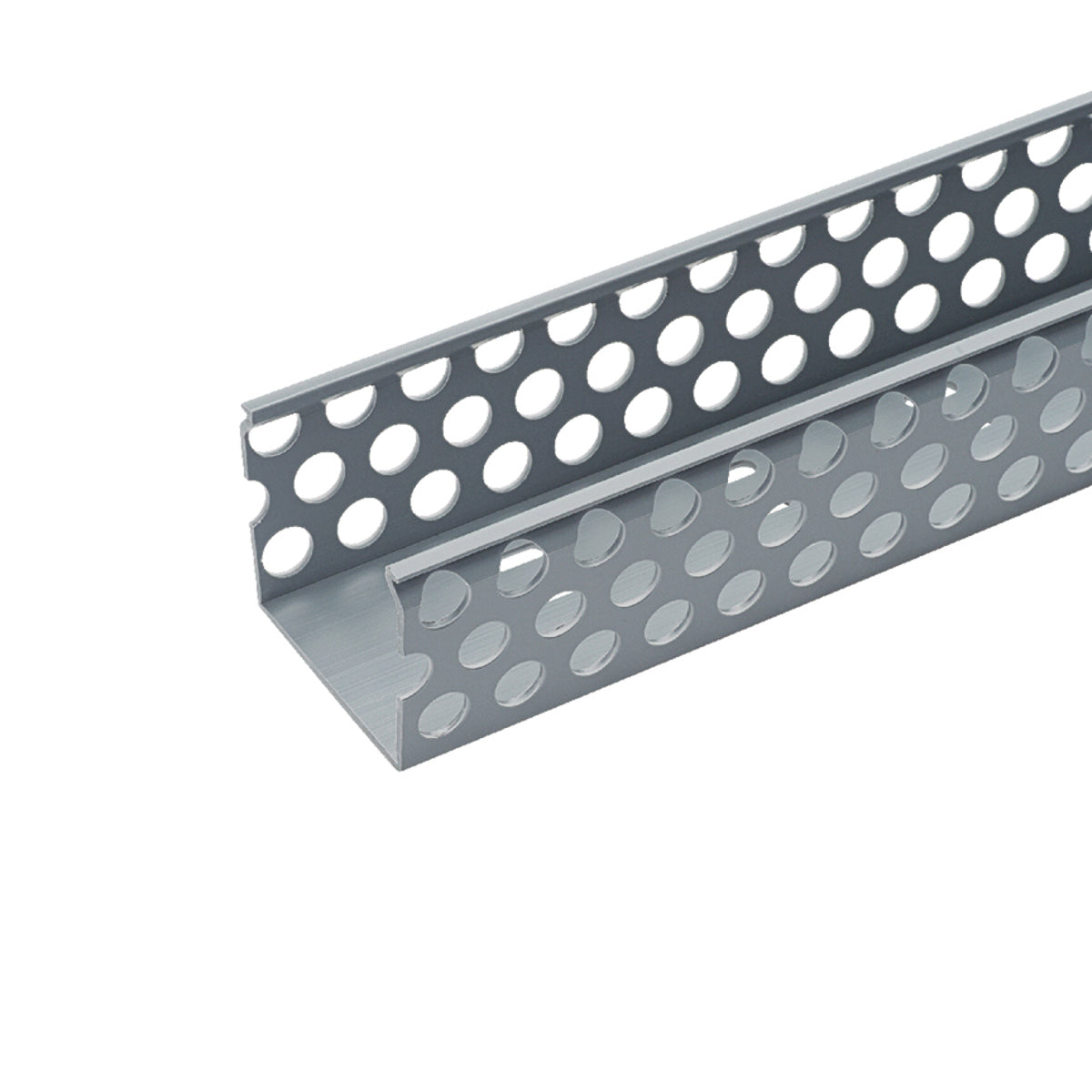

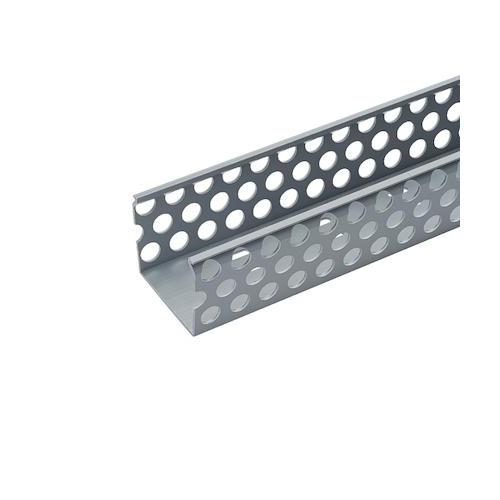

Panduit D2X2LG6 Base Wiring Duct

Product Description

The Panduit D2X2LG6 Base Wiring Duct is a lead-free PVC product designed for effective wire management. It features multiple rows of holes that retain and support wire at various heights and positions. This duct complies with the UL 94 flame class of V-0 and can withstand continuous-use temperatures up to one hundred twenty-two degrees Fahrenheit (fifty degrees Celsius). The product includes mounting holes for easy installation. The duct measures two inches by two inches (50.8 mm x 50.8 mm) in cross-section and is six feet (1.83 m) long. Note that the cover is sold separately.

• Multiple rows of holes for versatile wire placement
• UL recognized with effective temperature resistance
• Lead-free PVC for safe installation

Product Highlights

This wiring duct is essential for organizing electrical wiring and ensuring safety in installations.

Product Information

Standard Information

• Brand: Panduit
• Manufacturer Part Number: D2X2LG6

Technical Specifications

• Material: PVC
• Flame Rating: UL 94 V-0
• Size: 2 x 2 inches
• Length: 6 feet
• Temperature Rating: Up to 122F (50C)
• Connection Type: Mounting holes included
• Country of Origin: United States
