Product Description

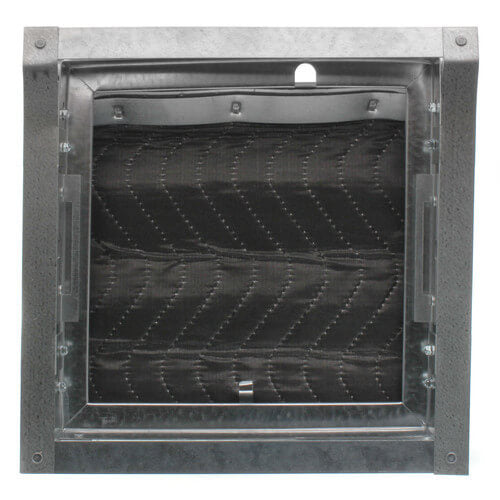

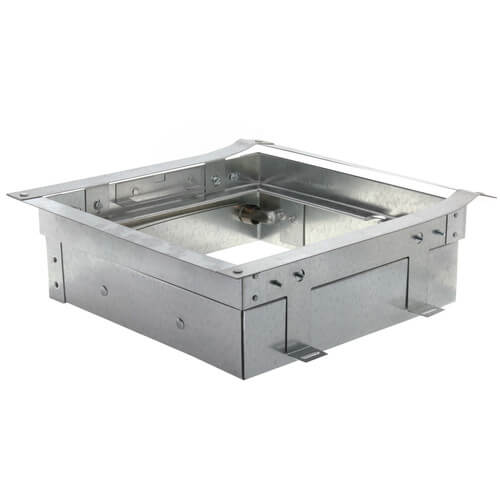

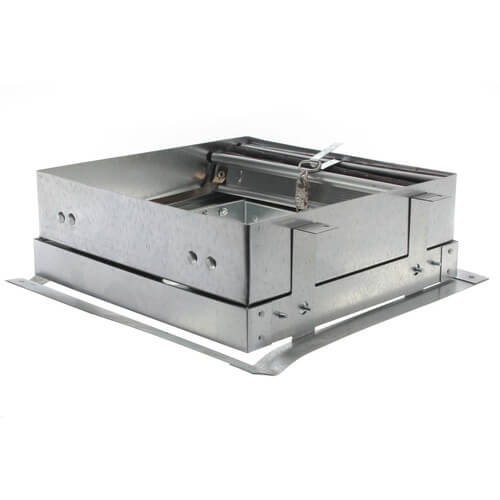

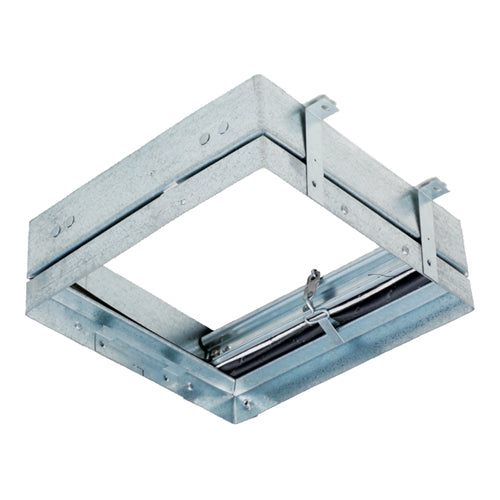

The Panasonic PC-RD05C5 Radiation Damper is designed to provide effective fire resistance in HVAC systems. Made from galvanized steel, this all-in-one flexible damper offers reliable performance and is compatible with a variety of Panasonic fans.
- Folded ceramic curtain style
- Supports two stage construction
- Easy access for maintenance
Product Highlights
This radiation damper is suitable for use with most Panasonic 10-1/4 inch fans, including models with motion sensors and lights. The galvanized steel frame includes a 165 degree F fusible link and high-temperature reinforced fiber thermal fabric. Designed for both combustible and non-combustible UL assemblies, it allows for separate installation stages.
Product Information
Standard Information
-
Brand: Panasonic
-
Manufacturer: Panasonic Ventilation
-
UPC: 86608300020
Technical Specifications
-
Type: All-In-One
-
Material: Steel
-
Finish: Galvanized
-
Dimensions: 11-7/8 in W x 11-7/8 in D x 3-1/4 in H
-
Mounting Type: Ceiling
-
Shape: Square
-
Standards/Approvals: ENERGY STAR Certified|NFPA|UL 555C
-
Includes: Radiation Damper, Mounting Screws, Clip and Grommets, Plaster Guard, Installation Guide
