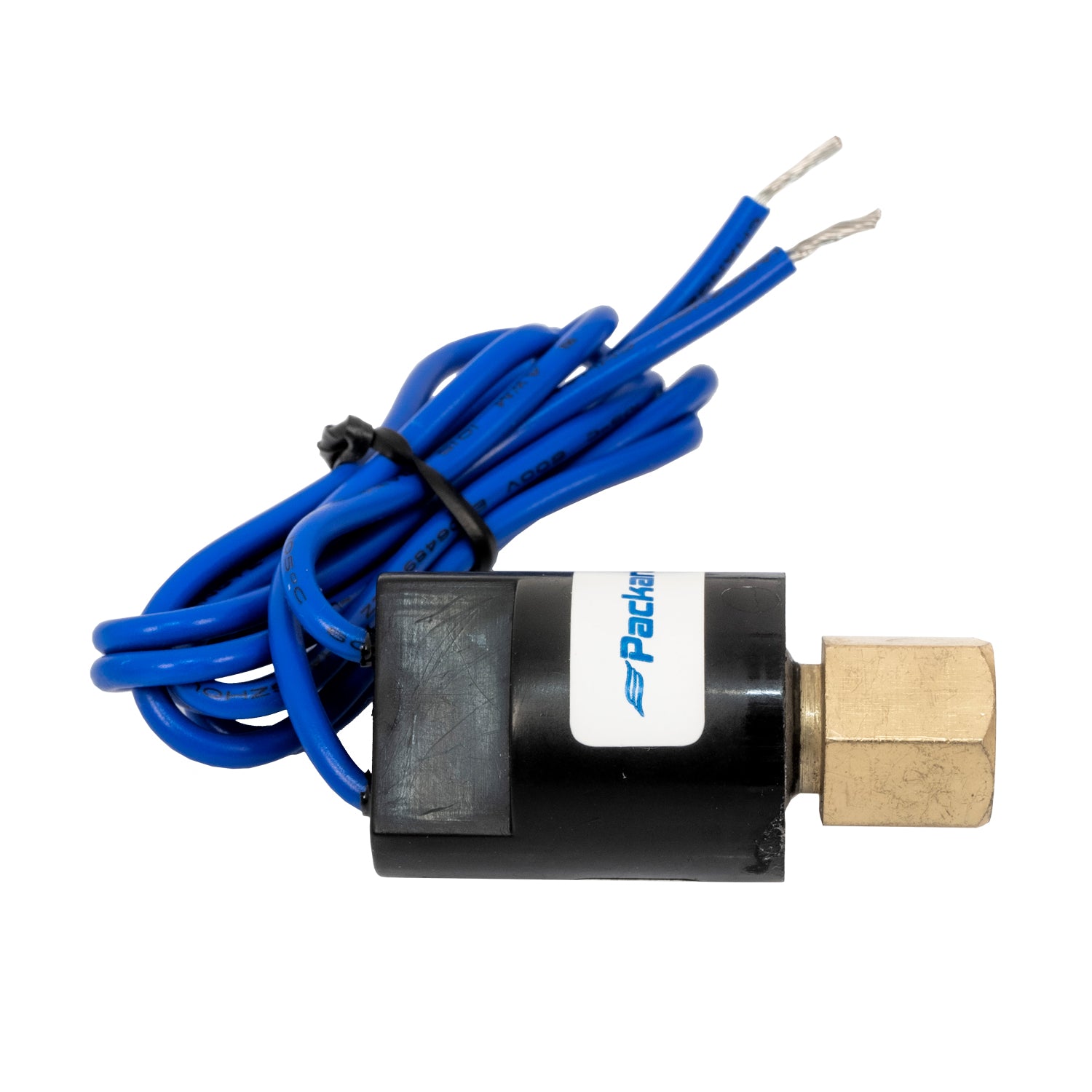

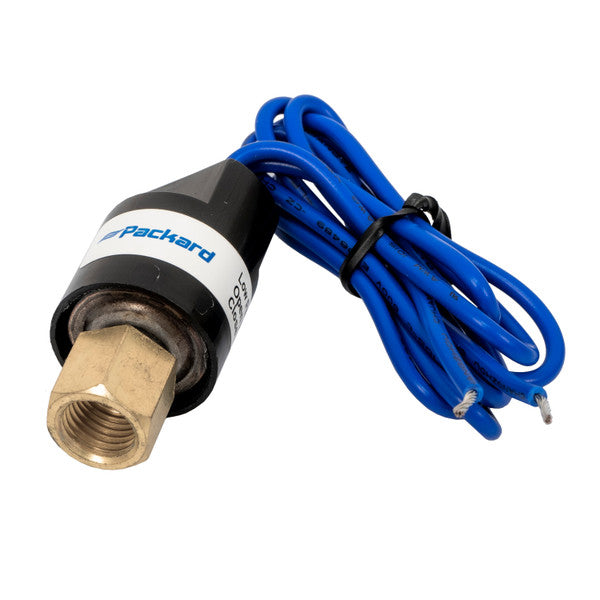

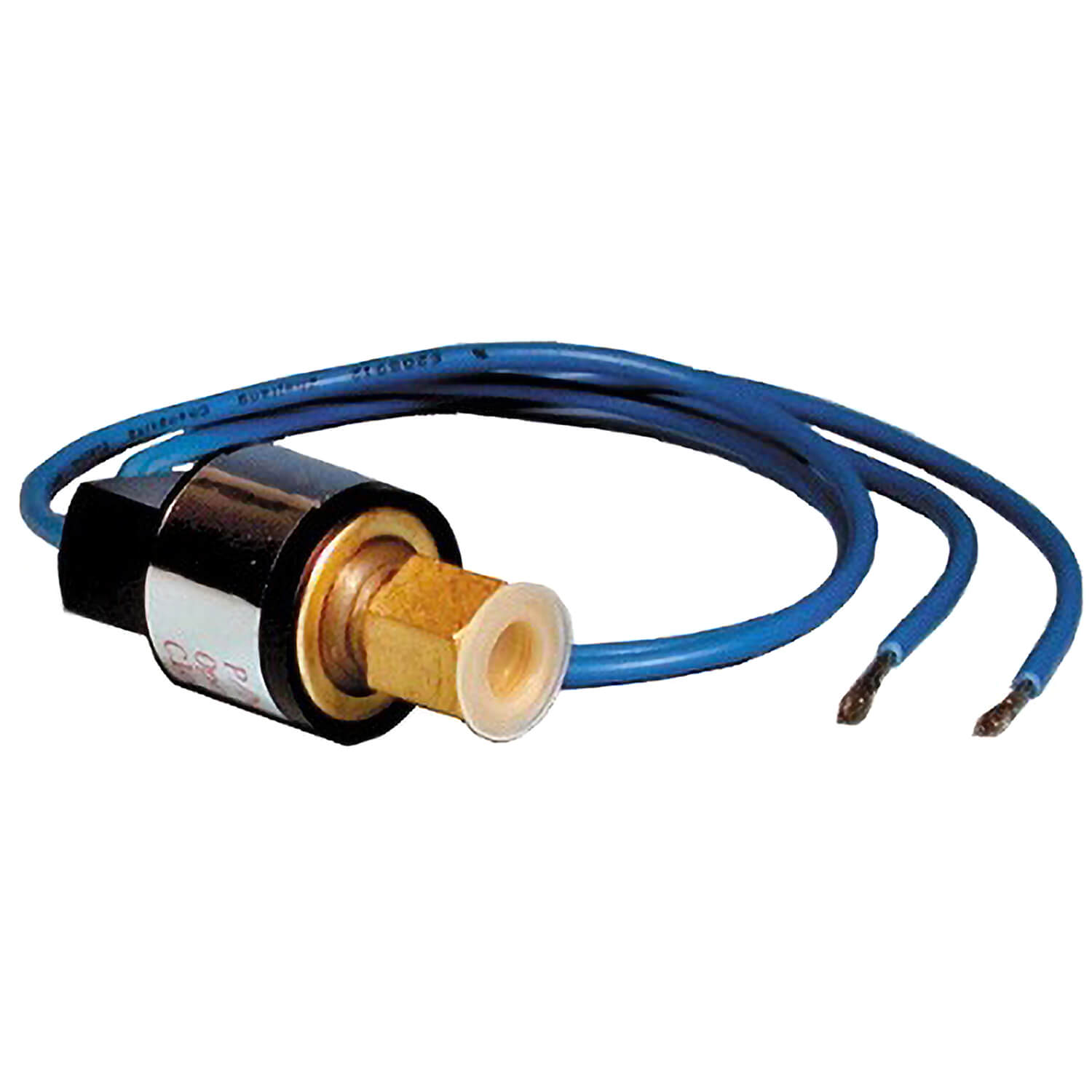

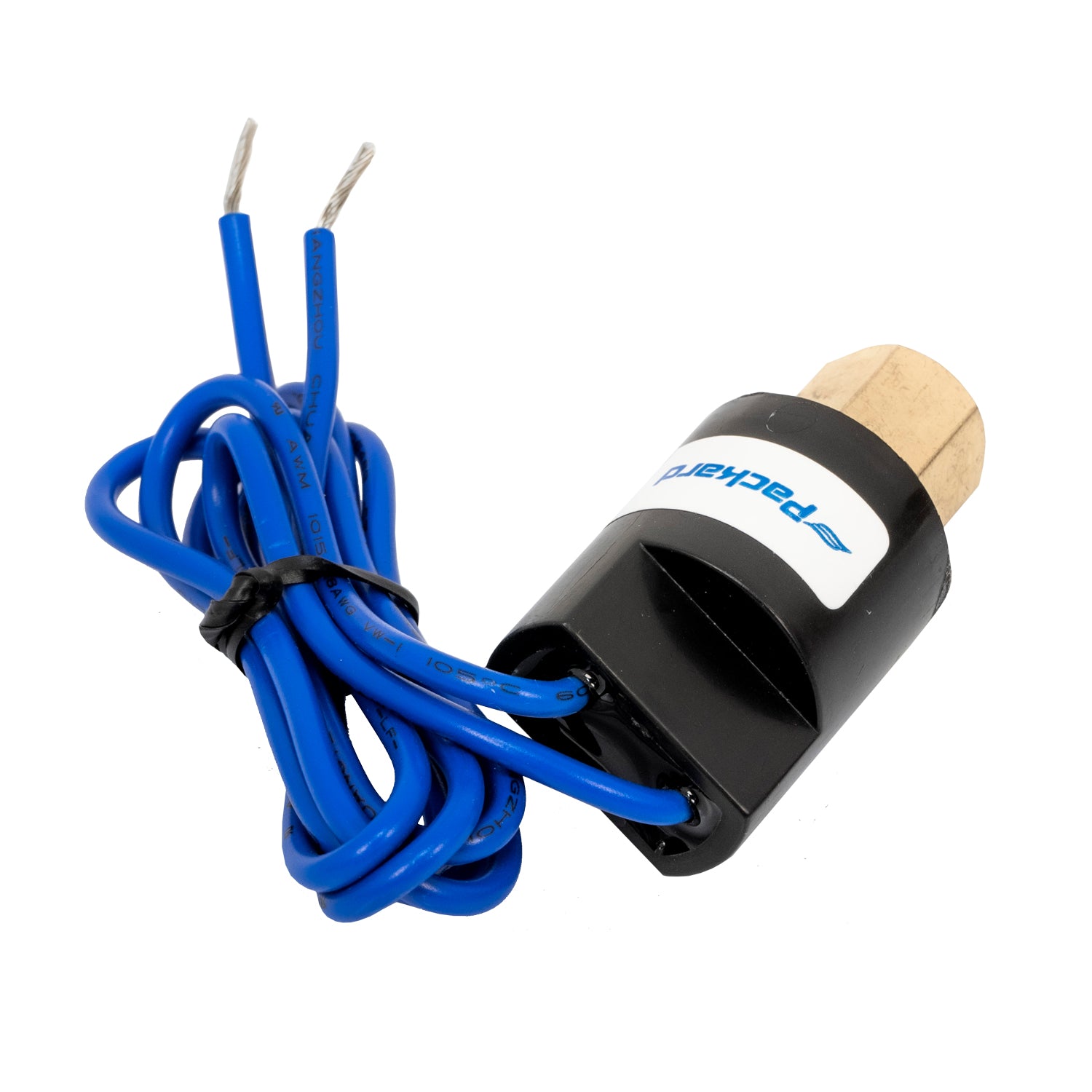

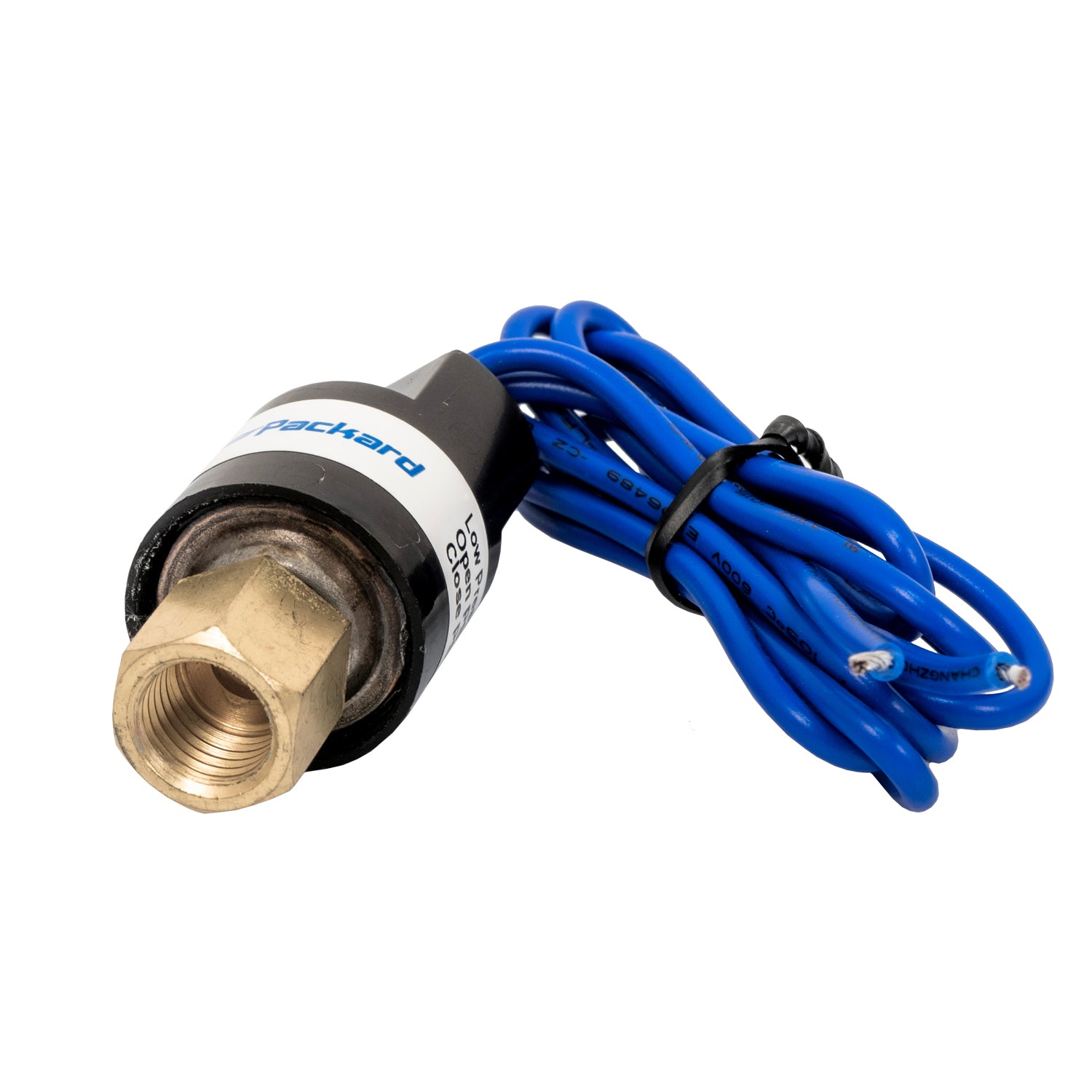

Packard PLP75100 Low Pressure Control (EA) Supco SLP75100

Product Description

Packard PLP75100 is an encapsulated low pressure control that opens at 75 PSI and closes at 100 PSI with a ±5 PSI tolerance. It is a non-adjustable SPST direct-mount switch for HFC, HCFC, and CFC refrigerants, featuring a snap-acting stainless steel hermetically sealed sensor and a 1/4" SAE female flare fitting with valve core depressor. Rated for 24/120/240 V (50/60 Hz), it covers 0–650 PSI with 5000 PSI burst pressure.

• Opens on pressure fall; set points: open 75 PSI, close 100 PSI; tolerance ±5 PSI
• Rated voltage 24/120/240 V (50/60 Hz); life at rated load 100,000 cycles; lead length 18 in
• Ambient −30°C to 80°C (20°F to 176°F); fluid −50°C to 120°C (60°F to 250°F); 1/4" SAE female flare fitting

Product Highlights

Direct-mount SPST low pressure control for HVAC/R with snap-acting hermetic sensor and 0–650 PSI operating range.

Product Information

Standard Information

• Brand: PACKARD
• Manufacturer Part Number: PLP75100
• Country of Origin: China

Technical Specifications

• Brand: Packard
• MPN: PLP75100
• Product type: Low pressure control
• Switch type: Single pole single throw (SPST)
• Operation: Opens on pressure fall
• Open pressure: 75 PSI
• Close pressure: 100 PSI
• Tolerance: ±5 PSI
• Pressure range: 0 to 650 PSI
• Burst pressure: 5000 PSI
• Rated voltage: 24/120/240 V (50/60 Hz); 6 RLA, 36 LRA
• Life at rated load: 100,000 cycles
• Lead length: 18 in
• Connection type: 1/4" SAE female flare fitting with valve core depressor
• Connection size: 1/4 in
• Sensor type: Snap-acting stainless steel hermetically sealed sensor
• Compatible refrigerants: HFC, HCFC, CFC
• Ambient temperature range: 20°F to 176°F (-30°C to 80°C)
• Fluid temperature range: 60°F to 250°F (-50°C to 120°C)
• Mounting type: Direct mount
• Intended application: HVAC/R
• Width (in): 1.4
• Height (in): 5.6
• Depth (in): 3.3
• Weight: 0.15 lbs
• Cross references: Jard 43953; Mars 33342, 43353, 43953; Supco SLP75100
• Country of origin: China
• UPC: 840899122182
• GTIN: 840899122182
