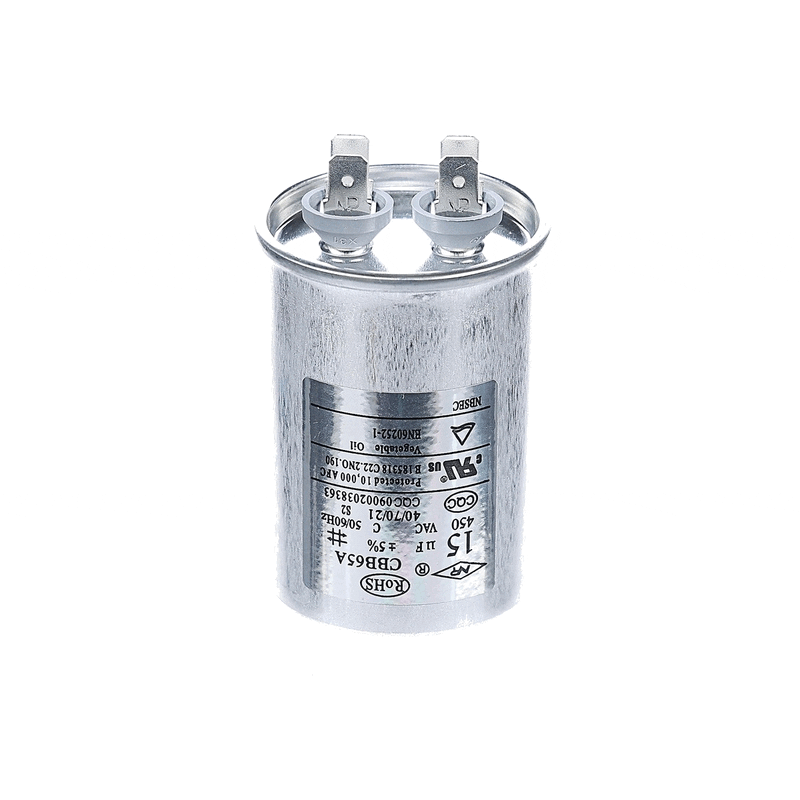

Oxbox cpt02523 Run Capacitor

Product Description

The OXBOX cpt02523 is a run capacitor designed for use in HVAC systems where continuous motor operation requires stable capacitance support. Run capacitors maintain the phase shift needed to keep single-phase motors running efficiently after startup. This part is typically installed by licensed HVAC technicians during routine maintenance, system repair, or component replacement. At 0.5 pounds, it is a compact unit suited for residential and light-commercial air conditioning and heat pump applications where reliable motor performance is essential.

This run capacitor is intended for installation in HVAC equipment requiring a sustained capacitance supply to fan motors or compressor motors. It fits within standard capacitor mounting brackets and enclosures found in condensing units and air handlers. Technicians replacing a failed or degraded run capacitor will find this unit appropriate for systems calling for an OEM-style replacement part in this size and form factor.

Key Features

• Run capacitor design maintains continuous motor phase shift during operation
• Compact form factor at 6.3 inches x 4.7 inches x 3.4 inches
• Lightweight at 0.5 pounds for easy handling during service calls
• OEM-style replacement for HVAC motor capacitor applications

Compatibility

Designed as an OEM-style replacement run capacitor for residential and light-commercial HVAC systems. Verify capacitance value, voltage rating, and terminal configuration against the existing capacitor before installation.

Installation Notes

Run capacitors are installed by licensed HVAC technicians. Always disconnect and lock out power to the unit before servicing capacitors, as run capacitors store a charge and must be discharged safely before handling. Use a capacitor discharge tool prior to removal. Follow applicable local codes and the equipment manufacturer's wiring diagram when reconnecting terminals.

Technical Specifications

• Length: 6.3 inches
• Width: 4.7 inches
• Height: 3.4 inches
• Weight: 0.5 pounds

Standard Information

• Brand: OXBOX
• Manufacturer Part Number: cpt02523
