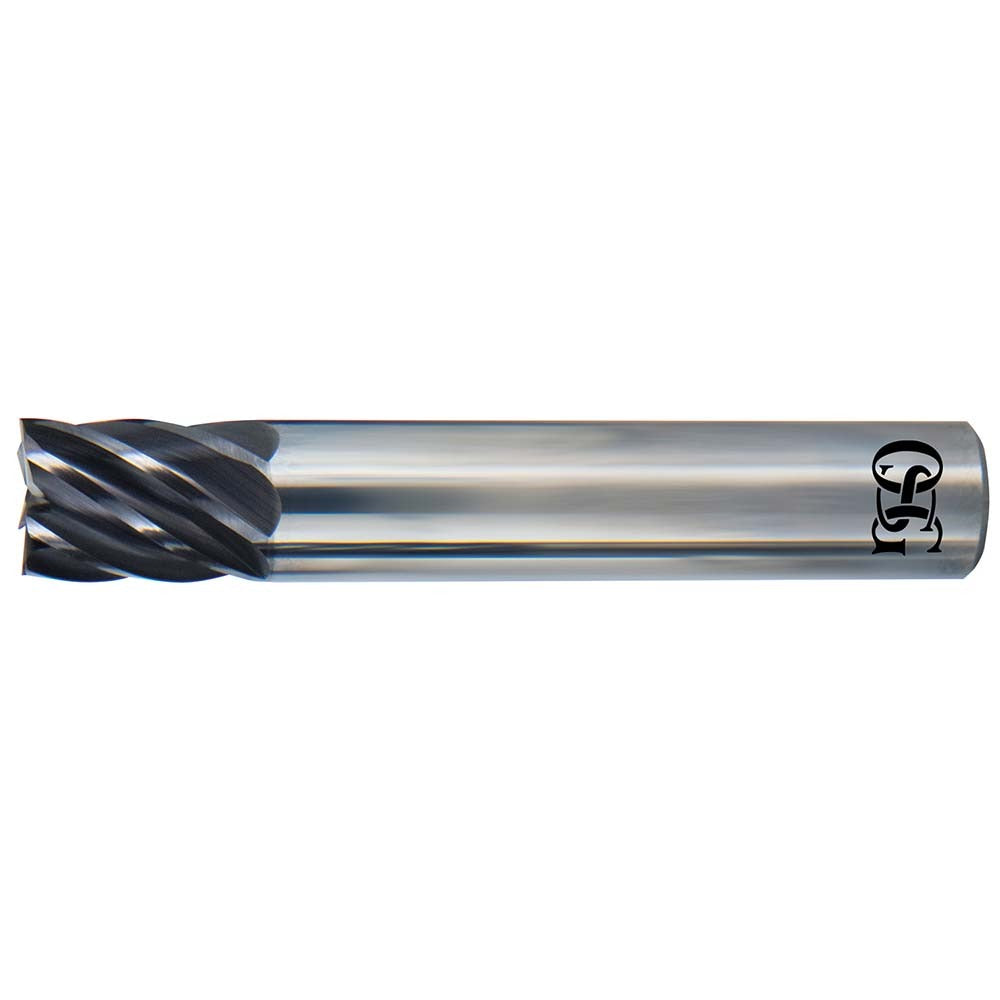

Osg VGM7-0096 Square End Mill 3/4 in 7 Flute Solid Carbide

Product Description

The OSG VGM7-0096 is a solid carbide square end mill designed for high-performance milling in demanding machining environments. Built to the VGM7 series specification, it features a 0.75 inch mill diameter, a 2.25-inch length of cut, and 7 helical flutes with a 36-degree helix angle. The variable index flute spacing reduces chatter and improves surface finish in aggressive cutting conditions. An EXO coating provides enhanced heat and wear resistance, extending tool life in ferrous and hardened materials. This end mill is sized for use in CNC machining centers and manual knee mills where a 3/4-inch straight-cylindrical shank is the standard setup.

The VGM7-0096 is suited for milling operations in job shops, tool rooms, and production machining environments. Its micrograin carbide substrate and right-hand cutting direction make it a practical choice for slotting, profiling, and peripheral milling passes on steel, stainless, and similar materials. The single-end configuration and regular-length body fit standard toolholders without extended-reach adapters. This tool is not center-cutting, so it is not intended for direct plunge entry.

Key Features

• 7 helical flutes with variable index for reduced vibration and improved finish
• EXO coating for increased wear resistance and thermal protection
• Micrograin solid carbide substrate for rigidity and edge retention
• 36-degree helix angle optimized for aggressive material removal
• Right-hand flute direction and right-hand cutting orientation
• Straight-cylindrical shank fits standard ER and hydraulic toolholders

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide end mill for CNC machining centers and manual mills requiring a 3/4-inch diameter, 7-flute square end mill with a 3/4-inch straight-cylindrical shank.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and the toolholder is clean and free of debris before seating the shank. Confirm runout within acceptable tolerances using a dial indicator before engaging the cut. Because this tool is not center-cutting, ramping or helical interpolation entry strategies should be used instead of direct plunge moves.
