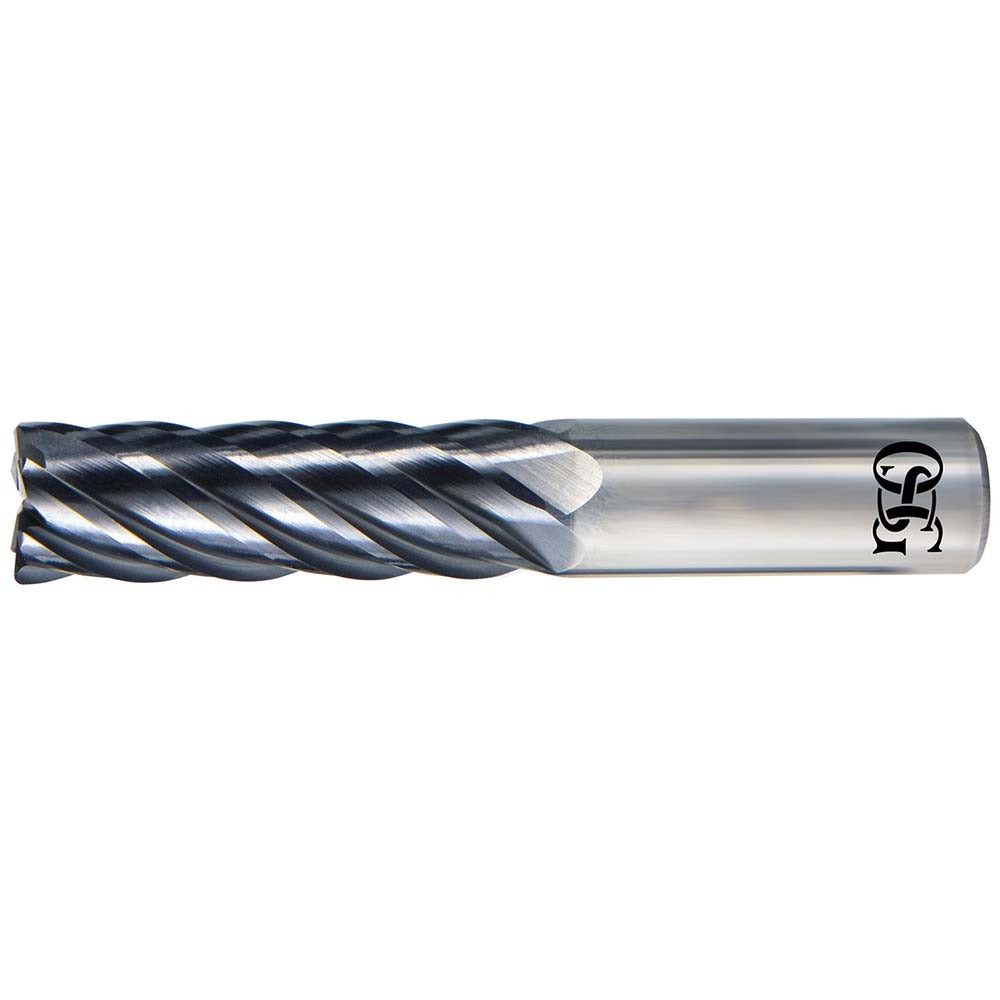

Osg VGM6-0067 Square End Mill 6 Flute Solid Carbide

Product Description

The OSG VGM6-0067 is a 6-flute solid carbide square end mill designed for high-performance milling in demanding metalworking applications. With a 0.5-inch mill diameter, a 1-inch length of cut, and a 37-degree helix angle, this tool delivers efficient chip evacuation and smooth cutting action in a compact stub-length profile. The EXO coating provides enhanced wear resistance and heat protection at the cutting edge. The variable index flute spacing reduces harmonic vibration during aggressive cuts, making it well suited for production environments where tool life and surface finish consistency matter.

This end mill is used in CNC milling operations across job shops, tool rooms, and production floors. The stub-length geometry and straight-cylindrical shank make it a practical choice for face milling, slotting, and profiling in steel, stainless steel, and other ferrous alloys where rigidity and short tool overhang are priorities. Right-hand cutting and right-hand flute direction follow standard CNC spindle configurations. Note that this tool is not center-cutting, so it is not suitable for plunge entry without a pre-drilled hole or ramping strategy.

Key Features

• 6-flute configuration with variable index spacing to reduce vibration and chatter
• 37-degree helix angle promotes efficient chip flow in ferrous materials
• EXO coating for improved wear resistance and elevated-temperature performance
• Micrograin solid carbide substrate for rigidity and edge retention
• Stub-length profile provides maximum rigidity in short-reach setups
• Straight-cylindrical shank compatible with standard ER collets and end mill holders

Compatibility

Designed as an OEM-style replacement or direct selection within the OSG VGM6 series for CNC milling applications requiring a 0.5-inch diameter, 6-flute square end mill with a 0.5-inch shank.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Secure the shank in a properly sized collet or end mill holder, ensuring minimum shank engagement per tooling manufacturer guidelines. Verify spindle direction is set to right-hand rotation before running. Because this end mill is not center-cutting, use a ramp entry, helical interpolation, or a pre-drilled pilot hole when entering a pocket to avoid tool damage.
