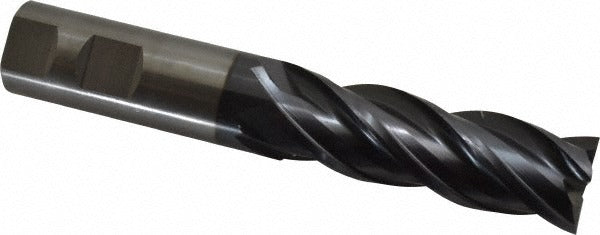

Osg VG441-1003 Square End Mill 1 in 4 Flute Solid Carbide

Product Description

The OSG VG441-1003 is a solid carbide square end mill designed for precision milling operations in production and job-shop environments. Built on OSG's VG441 series platform, it features a 1-inch cutting diameter, a 3-inch length of cut, and a 6-inch overall length with a 1-inch straight shank. The micrograin carbide substrate provides hardness and wear resistance suitable for demanding milling applications. A TiAlN coating helps the tool handle elevated cutting temperatures, extending tool life in ferrous and hard materials. The 35-degree helix angle promotes chip evacuation and reduces cutting forces across the full length of cut.

This end mill is suited for peripheral and slot milling in CNC machining centers and manual mills where a full-inch diameter tool is required. The 4-flute, right-hand cut and right-hand spiral flute configuration is well matched to milling steel, alloy steel, stainless steel, cast iron, and similar materials. The variable index geometry helps suppress chatter during aggressive side milling passes. It is not center-cutting, so it is not intended for plunge operations. Machinists and toolroom technicians working in aerospace, die-mold, and general machining will find this geometry appropriate for finishing and semi-finishing passes.

Key Features

• 1-inch cutting diameter with 3-inch length of cut for deep peripheral milling
• Solid micrograin carbide construction for rigidity and edge retention
• TiAlN finish for high-temperature resistance and extended tool life
• 35-degree spiral helix angle promotes efficient chip evacuation
• Variable index flute spacing reduces chatter and vibration during cutting
• Right-hand cut, right-hand flute — compatible with standard CNC spindle rotation

Compatibility

Designed as an OEM-style replacement or direct equivalent within the OSG VG441 series for CNC machining centers and milling machines that accept a 1-inch straight shank end mill.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully stopped and locked out before changing tooling. Use a proper end mill holder or collet rated for a 1-inch shank diameter and torque the retention mechanism per the toolholder manufacturer's specifications. Confirm runout with a dial indicator before beginning a cut, as excessive runout accelerates edge wear and reduces surface finish quality.
