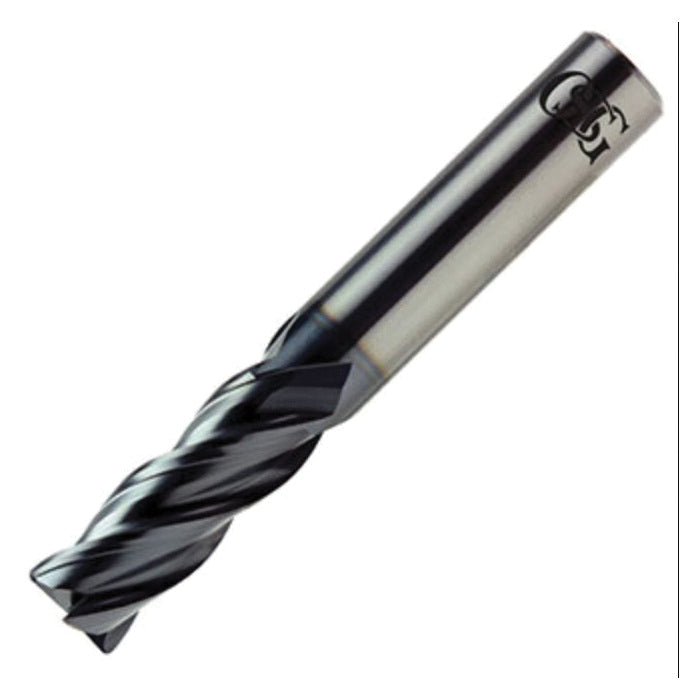

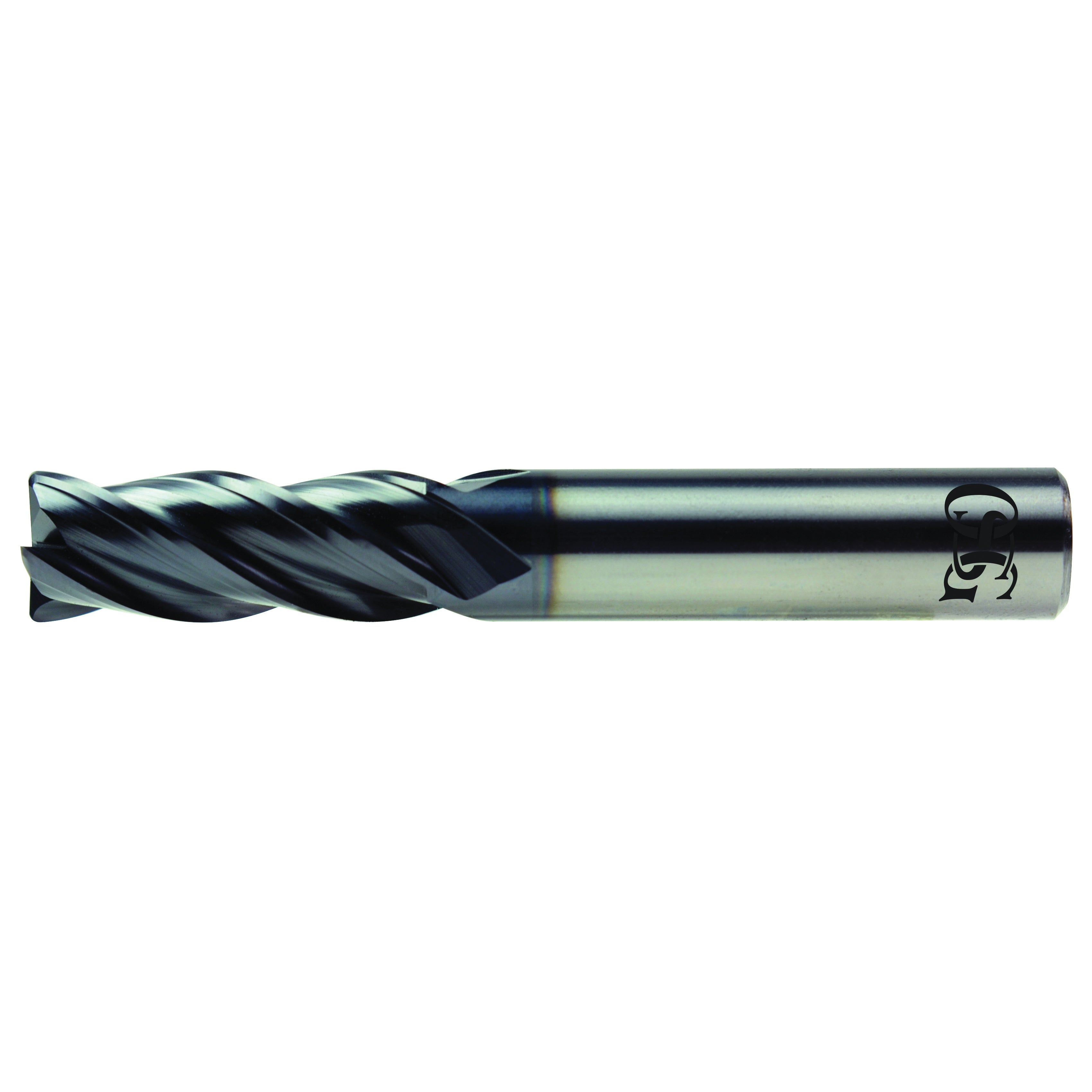

OSG VG434-6250 High Performance Center Cutting Regular Length Single End Variable Index Corner Radius End Mill

Product Description

OSG VG434-6250 is a high performance center cutting end mill designed for efficient milling operations. This tool features a cutter diameter of five eighths inches and a corner radius of zero point zero three inches. The overall length is three and one half inches with a length of cut measuring one and one fourth inches. It consists of four flutes and comes with a five eighths inch shank diameter. This end mill is suitable for various milling tasks including roughing and finishing.

• Unequal flute spacing to reduce vibration
• TiAlN coating for wear resistance
• Weldon flat shank for secure gripping

Product Highlights

The HY-PRO® series VG434 is built to minimize chatter and maximize tool life, ensuring consistent and reliable performance in metal removal.

Product Information

Standard Information

• Brand: OSG
• Country of Origin: US

Technical Specifications

• Material: Carbide
• Finish: TiAlN Coated
• Flute Type: Spiral
• Shank Type: Weldon Flat
• Helix Angle: 35 deg
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Corner Radius: 0.03 in
• Length of Cut: 1-1/4 in
• Overall Length: 3-1/2 in
• Cutter Diameter: 5/8 in
• Shank Diameter: 5/8 in
