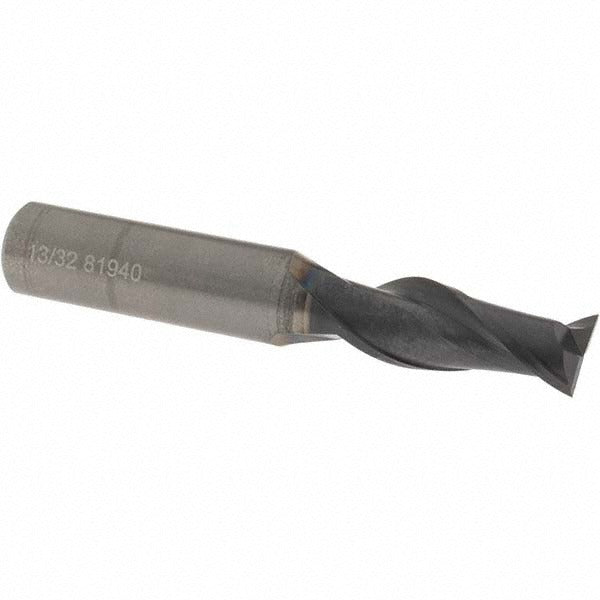

Osg HP421-4062 Square End Mill 13/32 Inch Solid Carbide

Product Description

The OSG HP421-4062 is a solid carbide square end mill designed for high-performance milling in ferrous and non-ferrous materials. It carries a 13/32 inch (0.4062 inch) cutting diameter, a 1 inch length of cut, and a 7/16 inch (0.4375 inch) shank diameter. The overall length is 2-3/4 inches. The TiAlN coating improves heat resistance and tool life in dry or semi-dry cutting conditions. The two-flute, spiral geometry with a 35-degree helix angle promotes efficient chip evacuation and reduced cutting forces. Micrograin carbide substrate adds edge strength and wear resistance in demanding applications.

This end mill is suited for slotting, profiling, and contouring operations on machining centers and manual knee mills. The centercutting geometry allows plunge entry directly into the workpiece, making it practical for ramping and pocket milling operations without pre-drilling. The right-hand cut and right-hand flute configuration is standard for conventional CNC spindle setups. It fits applications in tool and die, aerospace component work, mold making, and general precision machining where tight tolerances and fine surface finish are required.

Key Features

• 13/32 inch (0.4062 inch) cutting diameter with 1 inch length of cut
• Solid micrograin carbide construction for extended edge life and rigidity
• TiAlN finish for improved heat resistance and reduced tool wear in high-speed cutting
• 35-degree helix angle spiral flute for efficient chip evacuation and smooth cutting action
• Centercutting design allows direct plunge entry and ramp milling
• Right-hand cut, right-hand flute — compatible with standard CNC spindle rotation

Compatibility

Designed for use with standard milling machine spindles and CNC machining centers accepting a 7/16 inch shank diameter. Part of the OSG HP421 series of solid carbide square end mills.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and locked out before tool changes. Use a properly sized collet or end mill holder matching the 7/16 inch shank diameter and torque the retention mechanism per the toolholder manufacturer specifications. Verify runout at the cutting edge before commencing production cuts.
