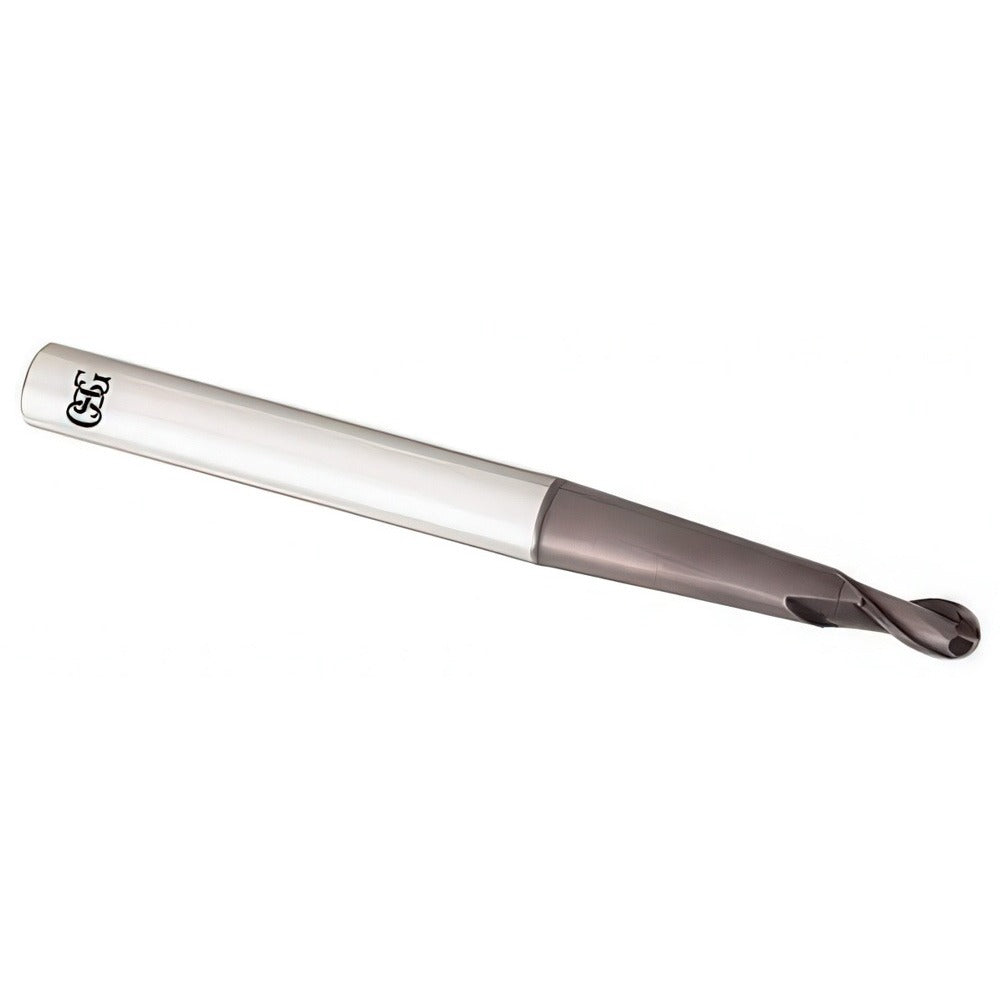

Osg HP419-0197 Ball End Mill 0.50mm 2 Flute Solid Carbide

Product Description

The OSG HP419-0197 is a single-end ball end mill from the Hy-Pro-Carb HP419 series, engineered for high-performance milling in demanding materials. Built from submicron-grade solid carbide and coated with TiAlN via a PVD process, this tool handles both roughing and finishing operations. It features a 0.50 mm cutting diameter, 0.50 mm length of cut, a 0.25 mm nose radius, and a 30-degree medium helix angle with right-hand cutting and flute direction. The 6.00 mm straight-cylindrical shank and extended-reach geometry make it well suited for deep-cavity and micro-detail work where rigidity and precision matter.

This end mill is designed for machining steel, cast iron, and hardened materials, corresponding to ISO material groups P, K, and H. Its extended-length configuration and 2.50 mm reach length allow access to features that standard-length tools cannot reach. The 0.45 mm neck diameter and 2.00 mm neck length provide clearance in tight pockets without sacrificing tool stability. It is center-cutting, allowing direct plunge entry. Typical applications include precision die and mold work, aerospace component finishing, and micro-feature machining on CNC vertical or horizontal machining centers.

Key Features

• Submicron-grade solid carbide body for rigidity and wear resistance in hard materials
• TiAlN coating (PVD process) extends tool life in steel, cast iron, and hardened materials up to group H
• Extended-reach design with 2.50 mm reach length for deep-cavity access
• Center-cutting geometry allows direct plunge milling
• Right-hand spiral flutes with 30-degree medium helix for efficient chip evacuation
• Mill diameter tolerance of +0.000 / -0.038 mm and h6 shank tolerance for consistent fit

Compatibility

Designed for use in CNC machining applications involving steel, cast iron, and hardened materials (ISO material codes P, K, and H). Compatible with standard ER and straight-bore collet systems accepting a 6.00 mm shank diameter.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the spindle fully stopped and machine power locked out per shop safety procedures. Ensure the collet or toolholder bore is clean and free of debris before seating the 6.00 mm shank. Do not exceed the tool manufacturer's recommended speeds and feeds for the workpiece material and depth of cut. Given the micro diameter of 0.50 mm, verify runout with a dial indicator before initiating a cut to avoid premature tool breakage.
