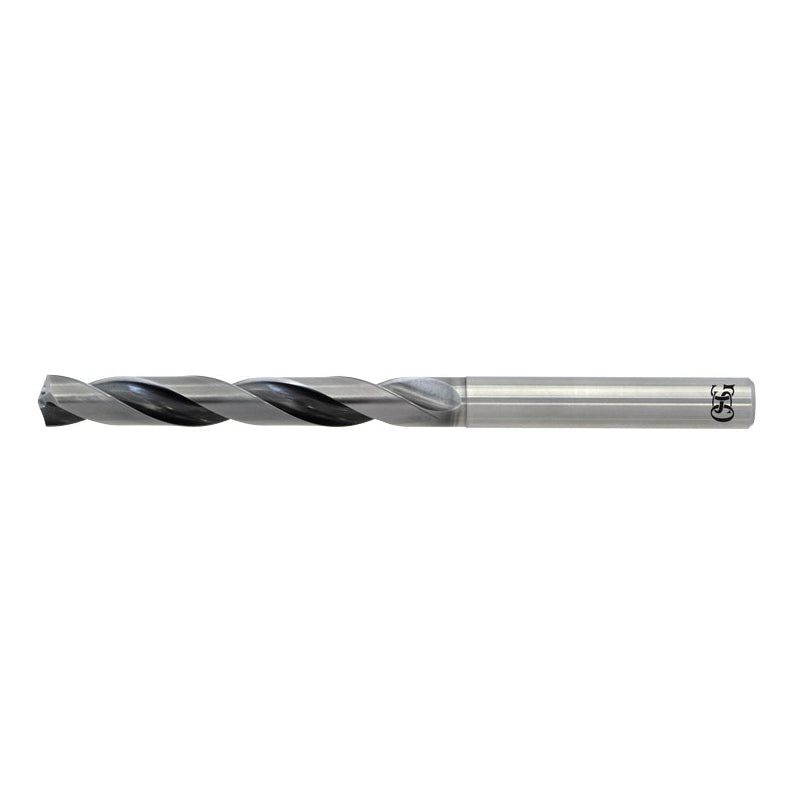

OSG 521026512 ADO-SUS 17/64 Drill Bit

Product Description

The OSG 17/64 EXOCARB ADO-SUS-5D is a high-performance drill bit crafted from carbide. This drill bit has a diameter of seventeen sixty-fourths of an inch. It features a shank diameter of five sixteenths of an inch and a flute length of fifty-five millimeters. The overall length measures one hundred nine millimeters, making it suitable for precision drilling tasks.

• Material: Carbide for durability
• Designed for stainless steel drilling
• 140-degree point angle for precise starts

Product Highlights

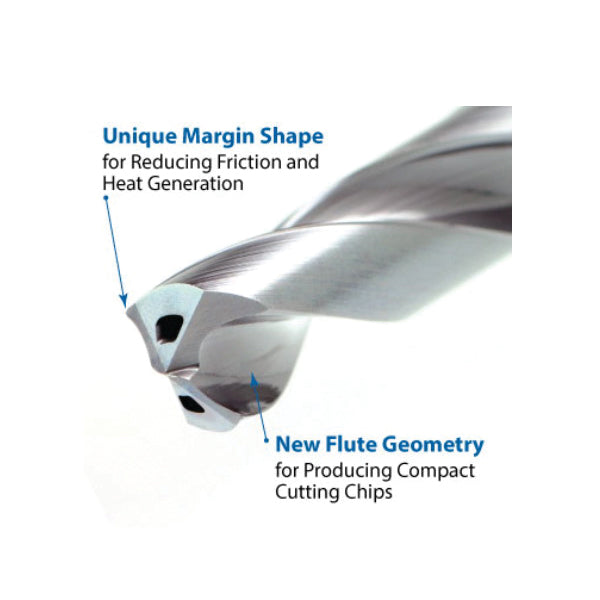

This drill bit is engineered for high-speed drilling with excellent chip removal capabilities. Its design minimizes heat buildup, enhancing tool life during operations.

Product Information

Standard Information

• Brand: OSG
• Part Number: OSG-521026512

Technical Specifications

• Diameter: 17/64 inches (0.2656)
• Shank Diameter: 5/16 inches (7.938 mm) (0.3125)
• Flute Length: 55 mm (2.1654)
• Overall Length: 109 mm (4.2913)
• Number of Flutes: 2
• Point Angle: 140 degrees
• Cutting Direction: Right Hand

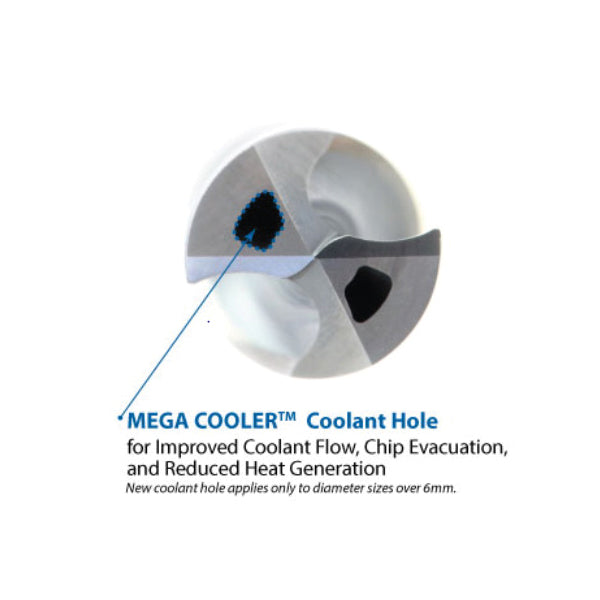

• Through Coolant: Yes
