Product Description

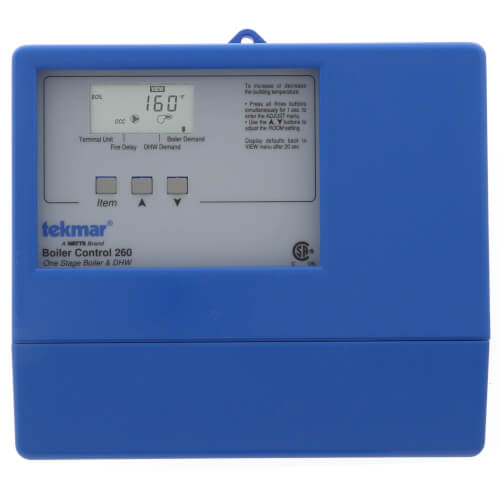

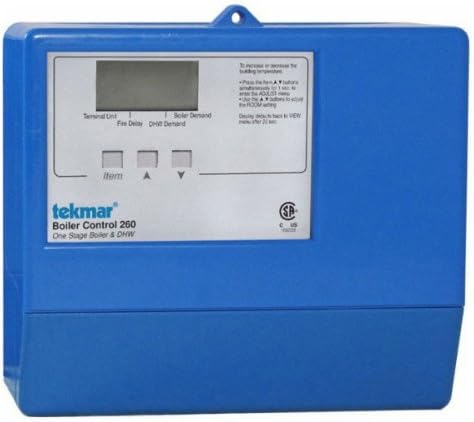

The Tekmar 260 Boiler Control is designed to manage the supply water temperature from a single boiler using outdoor air temperature or a domestic hot water (DHW) demand. This control system can handle either a DHW pump or valve and provides DHW Priority.
- Microprocessor-based control
- Regulates supply water temperature
- Handles DHW pump or valve
Product Highlights
Ensure consistent and efficient boiler operation with the Tekmar 260. This system adapts to changes in outdoor air temperature and DHW demand, providing reliable performance for both commercial and industrial applications.
Product Information
Standard Information
-
Control: Microprocessor PID control
-
Enclosure: Blue PVC plastic
-
Dimensions: 6-5/8 inches H x 7-9/16 inches W x 2-13/16 inches D
-
Approvals: CSA C US, EMI/RFI regulations
-
Ambient Conditions: Indoor use, 32 to 113°F, less than 90% RH non-condensing
Technical Specifications
-
Literature: D 260, A 260, D 001, D 070
-
Power Supply: 120V +10% 50/60Hz 1300VA
-
Relays: 240V (ac) 10A 1/3 hp, pilot duty 240VA
-
Demands: 20 to 260V (ac) 2VA
-

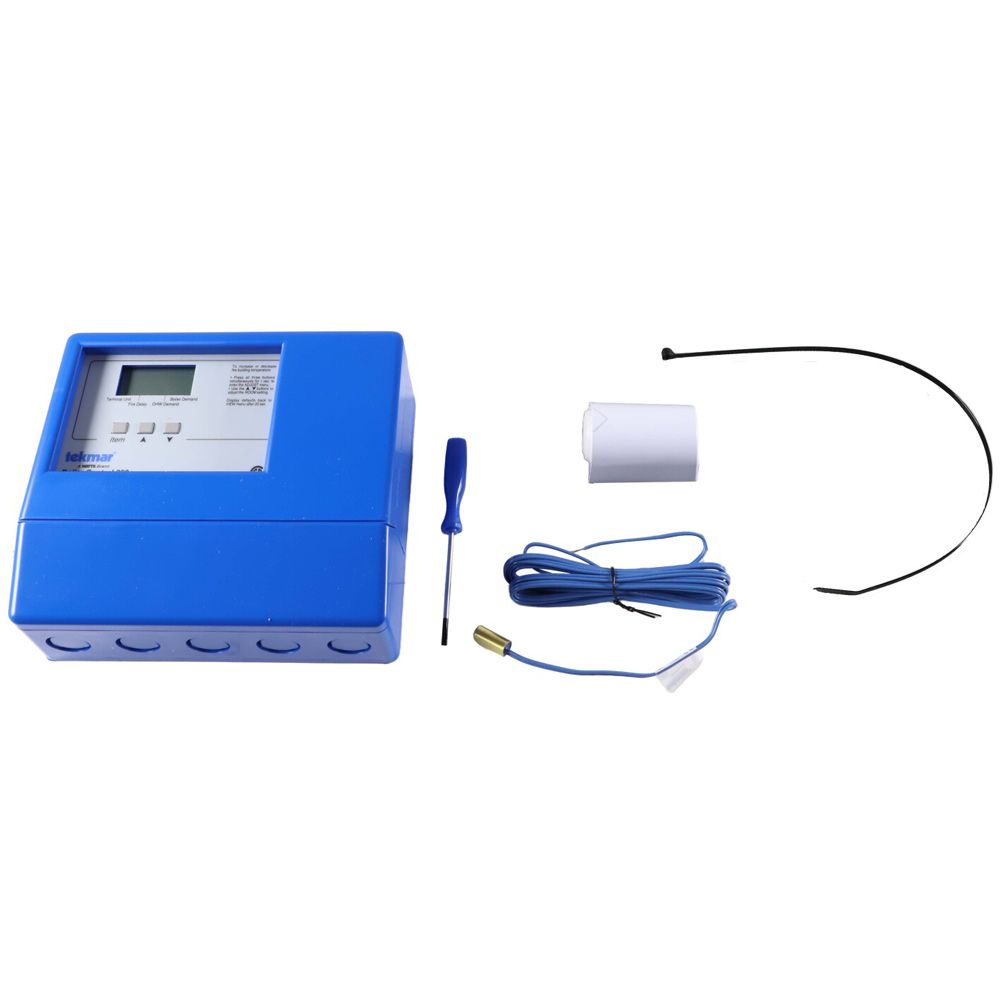

Sensors Included: NTC thermistor, 10k @ 77°F
-
Optional Devices: Tekmar type # 031, 032, 076, 077
