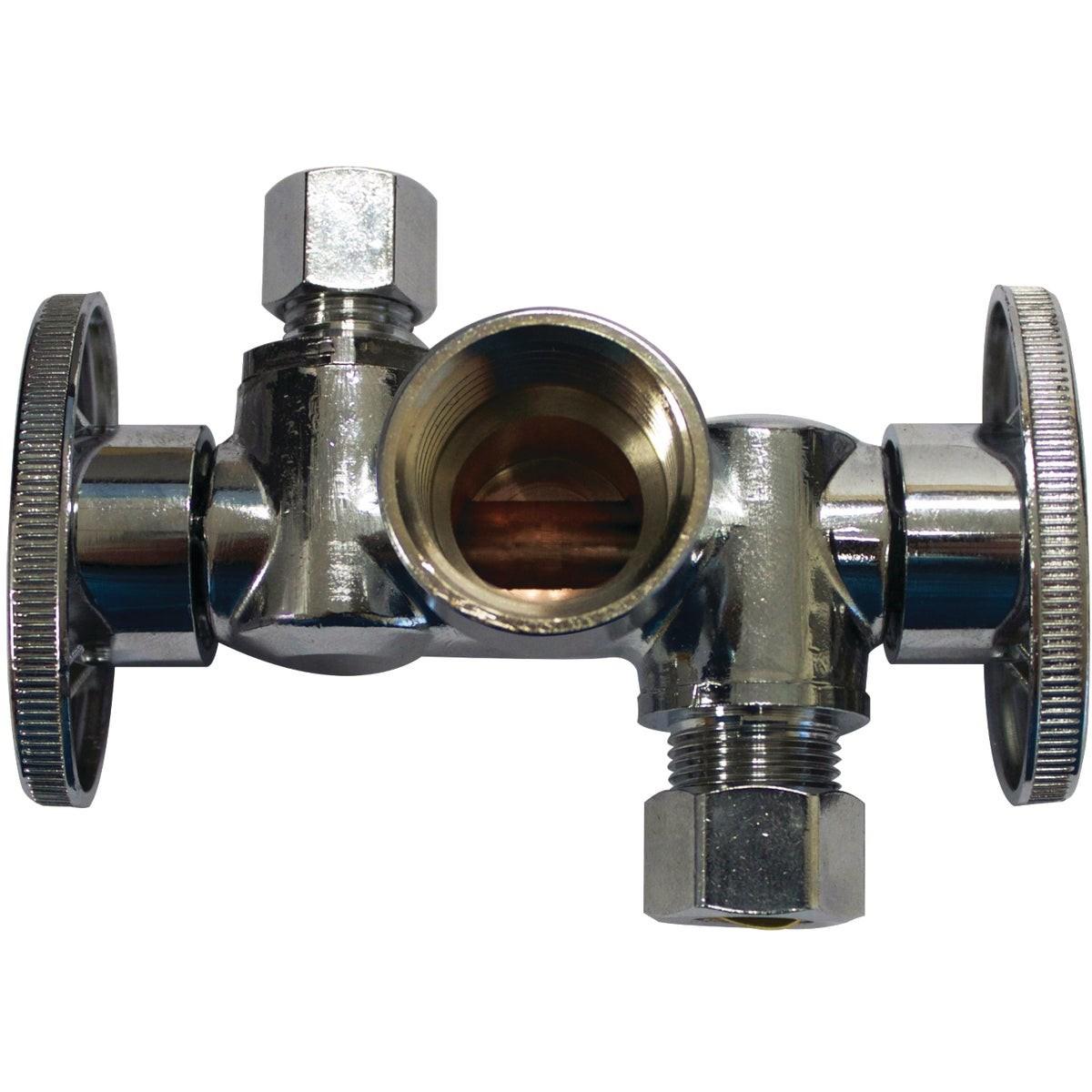

Oatey K2902DHLF Dual Outlet Quarter Turn Shut-off Valve

Product Description

The OATEY K2902DHLF is a lead-free, dual-outlet quarter-turn ball valve designed for residential plumbing supply lines. It accepts a 1/2-inch FIP inlet and delivers water through two independently controlled outlets: one at 3/8-inch OD and one at 1/4-inch OD. Each outlet is operated by its own dedicated handle, allowing a plumber or service tech to shut off flow to one branch without interrupting supply to the other. The lead-free construction meets current potable water standards. At 0.475 pounds, the valve is compact and suited for tight under-sink or cabinet installations.

This valve is commonly installed under kitchen or bathroom sinks where two appliances or fixtures must share a single supply stub-out. Typical applications include pairing a water filter with a pot filler, connecting an ice maker alongside a hot water dispenser, or supplying a dishwasher and a secondary fixture from one 1/2-inch FIP source. The dual-outlet configuration eliminates the need for a separate tee fitting and an additional valve, reducing the number of connections and potential leak points in the supply line.

Key Features

• Two independently operated outlets controlled by separate quarter-turn handles
• Lead-free ball valve construction meets potable water compliance requirements
• 1/2-inch FIP inlet with 3/8-inch OD and 1/4-inch OD compression outlets
• Quarter-turn operation for fast, positive open and close without over-tightening
• Compact form factor suited for under-sink cabinet installations
• Eliminates need for a separate tee and additional shutoff valve

Compatibility

Suitable for residential water supply lines serving water filters, pot fillers, ice makers, dishwashers, and hot water dispensers that require a 3/8-inch OD or 1/4-inch OD compression connection from a 1/2-inch FIP supply stub-out.

Installation Notes

Installation is typically performed by a licensed plumber. Shut off the main water supply and relieve line pressure before removing the existing valve or fitting. Apply thread sealant tape to the male FIP threads before making the inlet connection, and hand-tighten before applying a final quarter-turn with a wrench to avoid cracking the valve body. Verify all connections are leak-free by slowly restoring supply pressure and inspecting each outlet fitting before closing the cabinet.

Technical Specifications

• Inlet Connection: 1/2 inches FIP
• Outlet 1 Connection: 3/8 inches OD
• Outlet 2 Connection: 1/4 inches OD
• Operation: Quarter turn ball valve
• Lead Free: Yes
• Number of Outlets: 2
• Weight: 0.475 pounds
• Sold As: Each
• UPC: 00046224047773

Standard Information

• Brand: OATEY
• Manufacturer Part Number: K2902DHLF
