O-Z/Gedney EF-75 3/4 Inch Straight Electroform Insert

Product Description

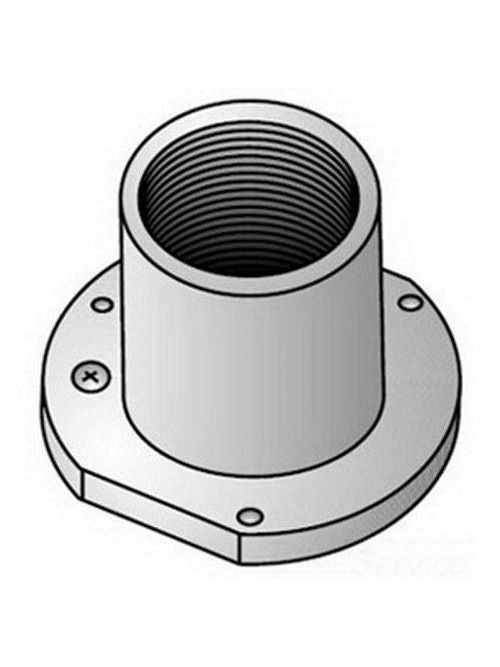

The O-Z/Gedney EF-75 is a straight electroform conduit insert designed for concrete slabs. This insert has a trade size of three-fourths of an inch and is made from malleable iron with a zinc plated finish. The dimensions are two and three-sixteenths inches in base diameter, two inches across flats, and one and three-eighths inches in height. It is suitable for concrete slabs four inches thick and greater, and compatible with threaded rigid conduit and IMC.

• Certified by UL and CSA for safety
• Constructed from durable materials for long-lasting use
• Designed for easy installation in concrete applications

Product Highlights

This conduit insert is ideal for various concrete application scenarios, providing reliable support and protection for electrical systems.

Product Information

Standard Information

• Brand: O-Z/Gedney
• MPN: EF-75

Technical Specifications

• Type: Type EF Concrete Slab Electroform Straight Conduit Insert
• Material: Malleable Iron
• Finish: Zinc Plated
• Trade Size: 3/4 Inch
• Applications: For Concrete Slabs 4 IN Thickness And Up, Threaded Rigid Conduit And IMC
• Dimensions: 2-3/16 IN Base Diameter, 2 IN Base Across Flats, 1-3/8 IN Height
• Third Party Certification: UL File Number E-11853, CSA 009795
• Applicable Standards: UL 514B, CSA: C22.2 No.18, Federal Specification W-F-408E
