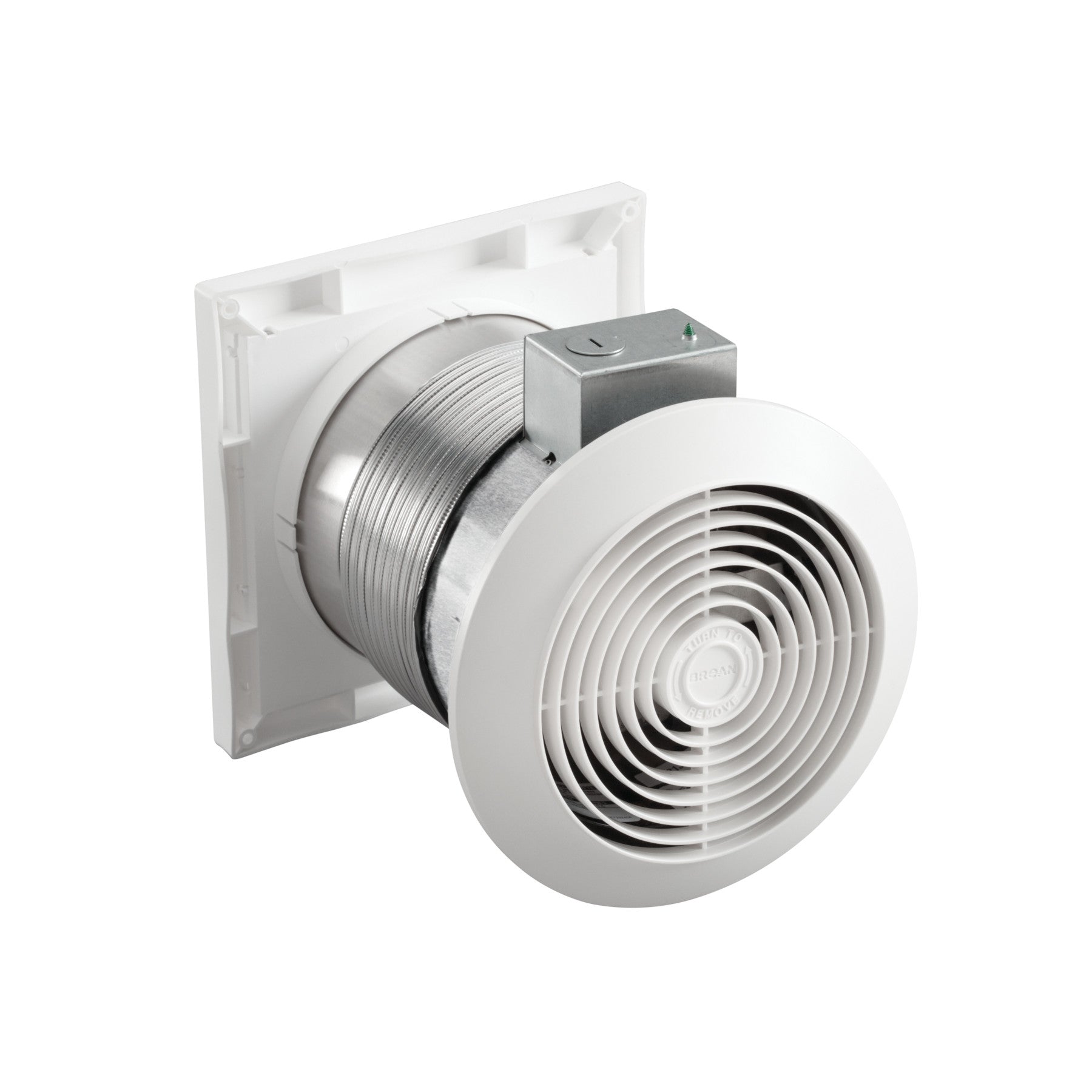

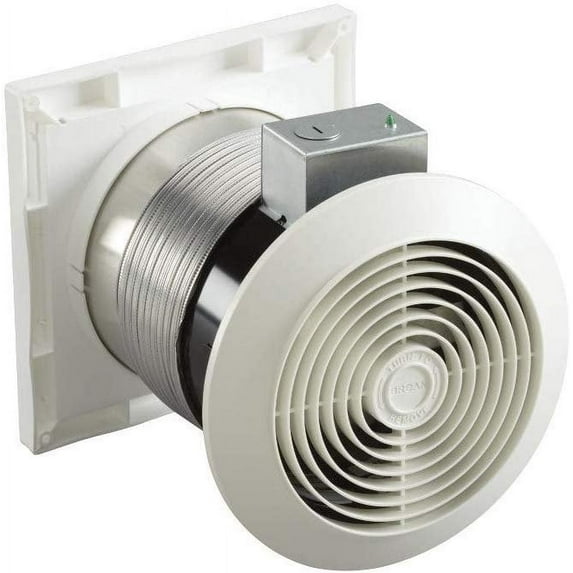

Nutone 512M Through-Wall Ventilation Fan 70 CFM

Product Description

The NUTONE 512M Through-Wall Ventilation Fan is designed for rooms up to 65 sq. ft. It is perfect for eliminating heat, humidity, and unwanted smells in garages, kitchens, laundry rooms, and rec rooms. The durable galvanized steel housing provides protection against the elements. It features a built-in exterior wall cap/vent with bird screen, reducing install time, and requires no duct work.

• UL Listed
• 70 CFM - ventilate up to 65 sq. ft.
• 6.0 Audible Sones

Product Highlights

This ventilation fan fights heat, humidity buildup, and unwanted smells. It features a galvanized steel housing for superior protection and a built-in bird screen.

Product Information

Standard Information

• Brand: NUTONE
• Manufacturer Part Number: 512M

Technical Specifications

• CFM: 70
• Color Finish: White
• Duct Size: 6
• ENERGY STAR certified: No
• Housing Dimensions: 6" Round x 4-3/8"
• Sound Level (Sones): 6
• UL Listed: Yes
• Grille Finish: White
• Humidity Sensing: No
• Motion Sensing: No
• Motor Engineered For Continuous Operation: No
• Night Light: No
• Radiation Damper Available: No
• Room Side Installation: No
• UL Listed for use over bathtubs or showers when connected to a GFCI circuit: No
• Heater Wattage: 0
• Recommended Room Size (Sq Ft): 65
• Rated Amps: 0.7
• Voltage: 120
• Can Be Used To Comply With Title 24: No
• Brand: Broan-NuTone
• Color: White
• Electric fan design: Exhaust Fan
• Power Source: ac
• Style: Surface Mount
• Room Type: Garage, Kitchen, Laundry Room, Rec Room
• Special Feature: Tested for Extreme Weather (Garage Usage); Wall Mount
• Recommended Uses For Product: Ventilating
• Mounting Type: Wall Mount
• Controller Type: Button Control
• Number of Speeds: 1
• Noise Level: 6 Sones
• Wattage: 25.4 watts
• Number of Blades: 3
• Air Flow Capacity: 70 Cubic Feet Per Minute
• Speed: 1 RPM
• Switch Type: Wall Control
• Indoor Outdoor Usage: Indoor, Outdoor
• Control Method: Remote
• Light Type: not_applicable
• Connector Type: not_applicable
• Reusability: not_applicable
• Standby Power Shutoff: Efficient
• Is Product Cordless: No
• Number of Power Levels: 1
• Material: Metal, Plastic
• Blade Material: Plastic
• Specification Met: UL
• Model Name: Through-the-Wall Ventilation Fan
• Model Number: 512M
• Manufacturer: Broan
• Item Type Name: White Cover
• Unit Count: 1.0 Count
• Blade Length: 6 Inches
• Air flow: 70.0 CFM
• Mount type: Wall Mounted
• Sones rating: 3.5
• Rec. room: Bathroom
• Rec. use: Ventilation
• Ventilation fan type: Wall-Mounted Ventilation Fans
