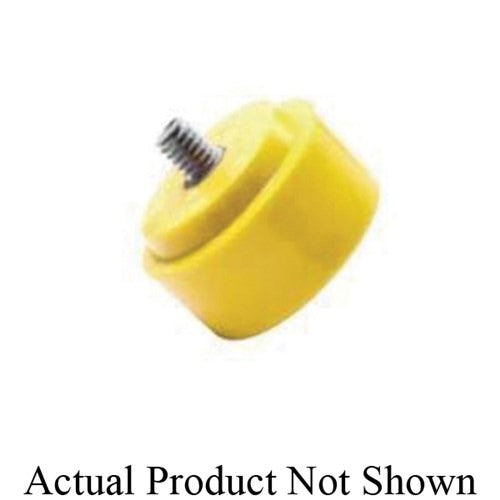

Nupla 15-159 Quick-change Soft Face Replaceable Tip 1.5in Nylon

Product Description

The NUPLA 15-159 is a quick-change soft face replaceable tip designed for use with compatible dead blow and quick-change hammers. Part of the 15XH series, this tip is made from nylon and rated extra hard, making it suitable for applications that demand firm impact without damaging the workpiece surface. The tip diameter measures 1.5 inches and uses a 5/16-18 thread for secure attachment. It is color-coded yellow for fast identification on the job site. Installers and maintenance technicians working in manufacturing, assembly, and general industrial settings rely on replaceable tips like this to extend hammer service life and adapt to different impact needs without replacing the entire tool.

This replaceable tip is intended for use in industrial and general maintenance environments where controlled, non-marring impact is required. The extra hard nylon construction handles demanding tasks while still protecting finished or sensitive surfaces. The quick-change design allows for rapid field swaps between tip types, reducing downtime during multi-material jobs. It is confirmed to fit the 2LMX7 and 2LMX8 Impax Dead Blow and Quick-Change Hammers.

Key Features

• 1.5-inch tip diameter suits medium to large impact face applications
• Extra hard nylon construction provides firm, controlled impact
• Quick-change design enables fast tip replacement without tools
• 5/16-18 threaded attachment for a secure, stable fit
• Yellow color coding aids quick visual identification of tip hardness
• Part of the 15XH series for consistent replacement sourcing

Compatibility

Confirmed to fit the 2LMX7 and 2LMX8 Impax Dead Blow and Quick-Change Hammers.

Installation Notes

This tip is installed and replaced by maintenance technicians, assembly workers, or general tradespeople familiar with soft face hammer systems. Before swapping tips, ensure the hammer is not in use and is secured or resting safely. Thread the tip in by hand using the 5/16-18 connection until fully seated. Do not over-tighten or use pipe wrenches or impact tools on the tip threads, as this may damage the nylon tip body or the hammer's receiver threads.

Technical Specifications

• Series: 15XH
• Tip Diameter: 1.5 inches
• Tip Material: Nylon
• Hardness: Extra Hard
• Thread Size: 5/16-18
• Type: Quick-Change Soft Face
• Color: Yellow

Standard Information

• Brand: NUPLA
• Manufacturer Part Number: 15-159
