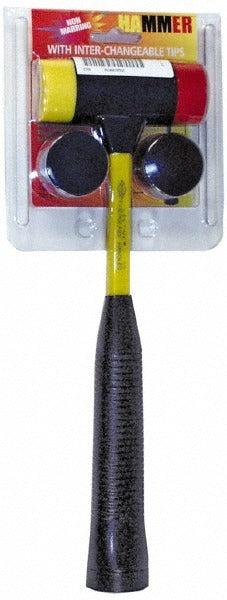

Nupla 02549 Non-marring Hammer 1 Lb Nylon Head

Product Description

The NUPLA 02549 is a non-marring soft face hammer designed for applications where standard steel-head hammers would damage, dent, or mar finished surfaces. The head is molded from nylon, rated soft hardness, and weighs 1 pound (16 ounces). The face diameter measures 1-1/2 inches, and the head length is 2-3/8 inches. The overall tool length is 12-1/4 inches, with a fiberglass handle spanning 9-7/8 inches. The replaceable face design extends service life without requiring full tool replacement. This hammer is used by HVAC technicians, pipefitters, electricians, millwrights, and general trade professionals who need controlled striking force on delicate components, sheet metal, or finished assemblies.

The NUPLA 02549 is suited for light-duty assembly and disassembly tasks where marring or surface damage is a concern. Typical applications include seating ductwork connections, tapping electrical enclosure knockouts, positioning sheet metal panels, and driving plastic or rubber fittings. The nylon head delivers enough force for controlled placement work without leaving tool marks on coated, plated, or painted surfaces. The fiberglass handle provides vibration dampening and resists moisture and chemical exposure common in mechanical rooms and field service environments.

Key Features

• Nylon head rated soft hardness prevents marring and surface damage on finished components
• Replaceable face design allows head renewal without replacing the full tool
• 1 pound head weight suited for light to medium assembly tasks
• 1-1/2 inch face diameter in the 1 to 2.9 inch range for controlled strike area
• Fiberglass handle resists moisture, chemicals, and vibration over extended use
• 12-1/4 inch overall length with 9-7/8 inch handle for comfortable one-hand control

Compatibility

Designed as an OEM-style non-marring hammer suitable for general trade and light industrial use where soft-face striking is required.

Installation Notes

This hammer is used by hand and requires no power source or fasteners. Before striking any component, confirm that adjacent electrical circuits are de-energized and that fluid systems are depressurized per applicable safety procedures. Use appropriate PPE including safety glasses when performing any striking operation. Inspect the nylon face for cracks or deformation before each use and replace the face if wear is evident.
