Nsi SC-1/0 Sc Copper Compression Splice 1/0 Awg

Product Description

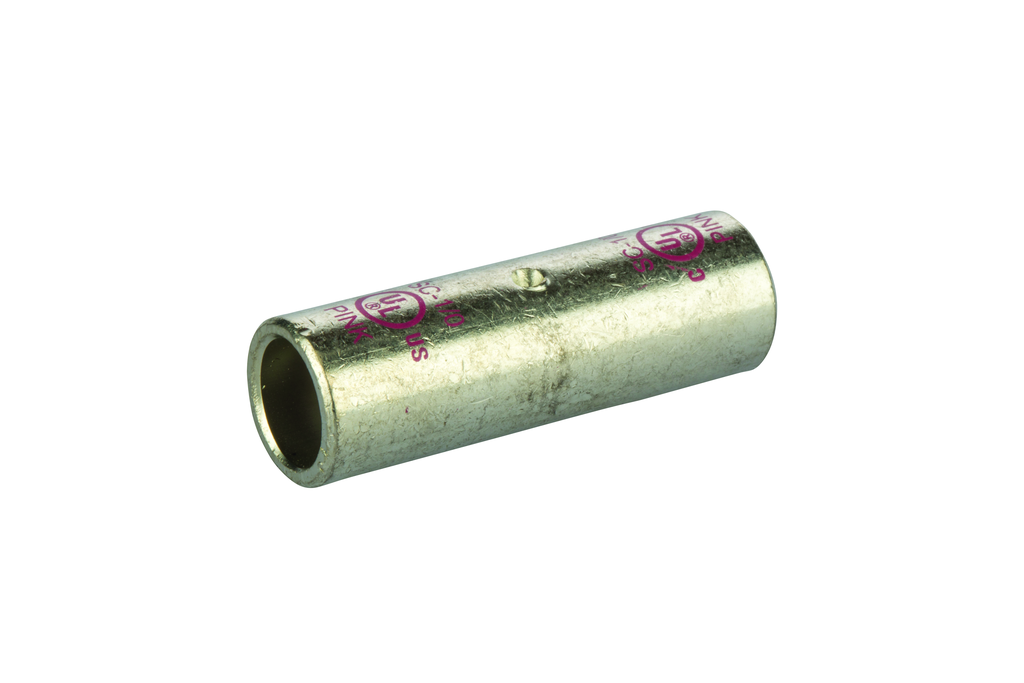

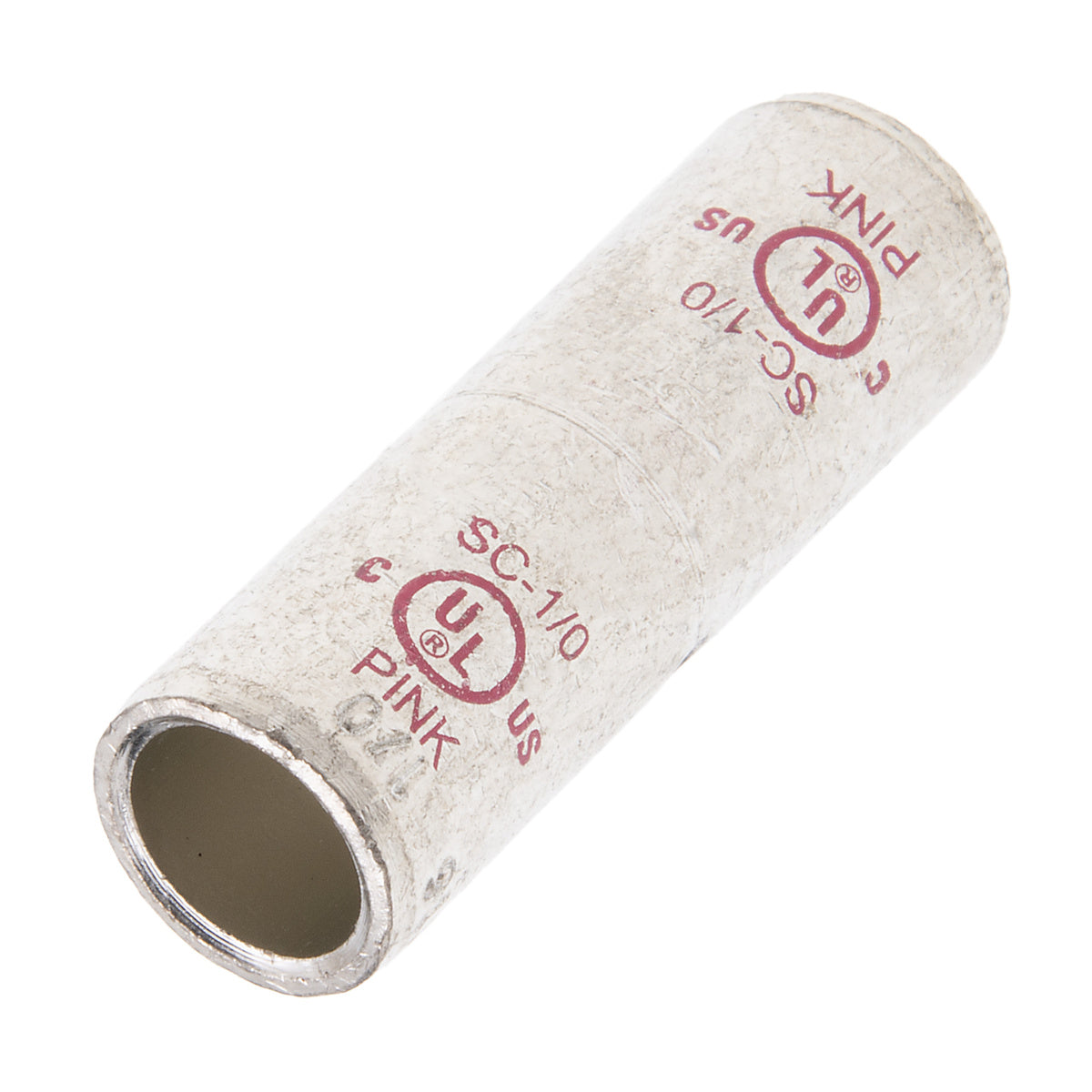

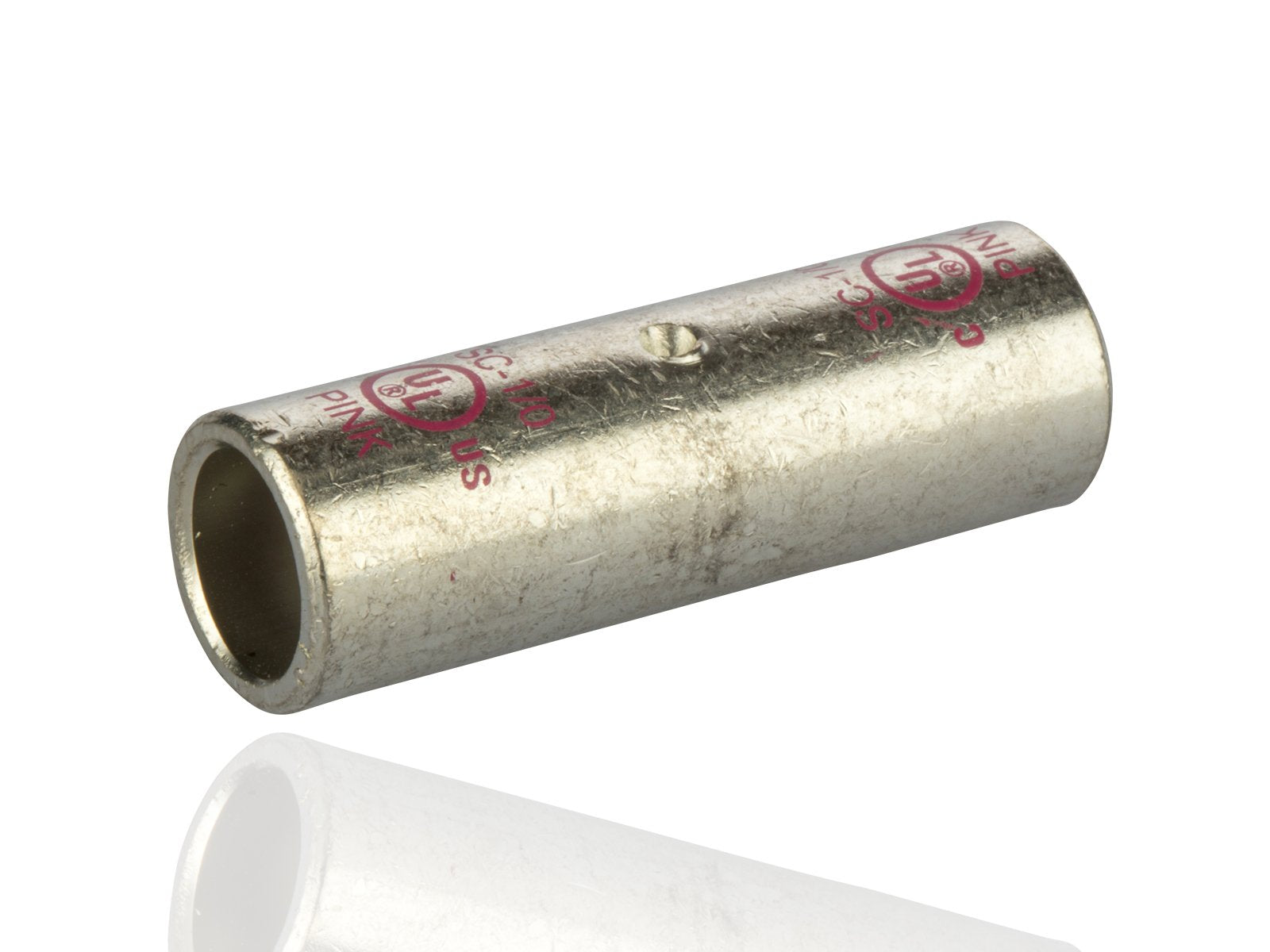

The NSI INDUSTRIES SC-1/0 is a standard barrel tinned copper splice produced from high conductivity copper tubing. It is tin-plated to provide corrosion resistance and marked with die index and color coded for easy reference. It is listed for 35KV maximum when properly installed.

• Produced from high conductivity copper tubing
• Serrations indicate proper crimp locations
• Tin-plated to provide corrosion resistance
• Marked with die index and color coded

Product Highlights

This copper compression connector is suitable for terminate, splice, tap power connectors. It can be used at voltages up to 35kV provided connector is properly installed.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: SC-1/0
• Country of Origin: India

Technical Specifications

• Brand: NSI Industries
• Color: Pink
• Finish: Tin Plated
• Material: Copper
• Standard: UL486
• Sub Brand: Copper Compression
• Applications: Terminate, Splice, Tap Power Connectors
• Conductor Size: 1/0 AWG
• Max Temperature: 194 degrees F
• Number of Poles: 1 Pole
• Country of Origin: India
• Temperature Rating: 90 degrees C
• Number of Conductors: 2
• Environmental Conditions: 90 degrees C
• Model / MPN: SC-1/0
• Voltage Rating: 600V
• Ul Standard: UL 486A, UL 467
• Wire Cable Class: Class B, Class C
• Conductor Type: Stranded Copper
• Wire Range: 1/0 AWG
• Assortment: Copper Compression Splices
• Die Color Code: Pink
• Barrel Length: 1.6
• Barrel Size: 0.39 in ID x 0.52 in OD
• Barrel Type: Short
• Standard & Approvals: UL486 Listed
• Specifications: Single pole 2-Conductor
